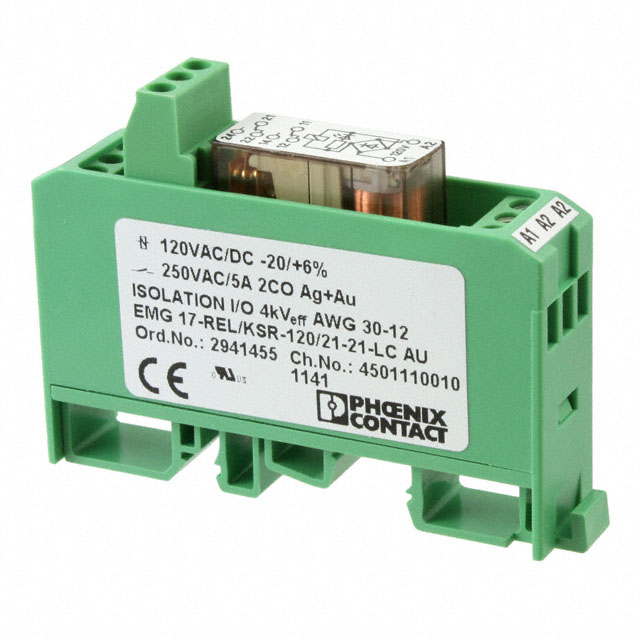

2941455

Active

Phoenix Contact

RELAY GEN PURPOSE DPDT 5A 120V

Search across all available documentation for this part.

Active

Phoenix Contact

RELAY GEN PURPOSE DPDT 5A 120V

Technical Specifications

Parameters and characteristics for this part

Specification	2941455

Coil Current	6 mA
Coil Type	Non Latching
Coil Voltage	120 VAC, 120 VDC
Contact Form	DPDT (2 Form C)
Contact Material	Silver Nickel (AgNi), Gold (Au)
Contact Rating (Current)	5 A
Features	Lighted Indicator, Socket Included
Mounting Type	DIN Rail
Operate Time	8 ms
Operating Temperature [Max]	40 °C
Operating Temperature [Min]	-20 C
Relay Type	General Purpose
Release Time	10 ms
Switching Voltage	250 VAC, 250 VDC
Termination Style	Screw Terminal

Part	Coil Type	Operating Temperature [Min]	Operating Temperature [Max]	Operate Time	Coil Voltage	Relay Type	Mounting Type	Contact Rating (Current)	Termination Style	Release Time	Coil Current	Switching Voltage	Features	Contact Form	Contact Material
Phoenix Contact 2941455	Non Latching	-20 C	40 °C	8 ms	120 VAC 120 VDC	General Purpose	DIN Rail	5 A	Screw Terminal	10 ms	6 mA	250 VAC 250 VDC	Lighted Indicator Socket Included	DPDT (2 Form C)	Gold (Au) Silver Nickel (AgNi)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

General Purpose Relay DPDT (2 Form C) 120VAC/DC Coil DIN Rail
