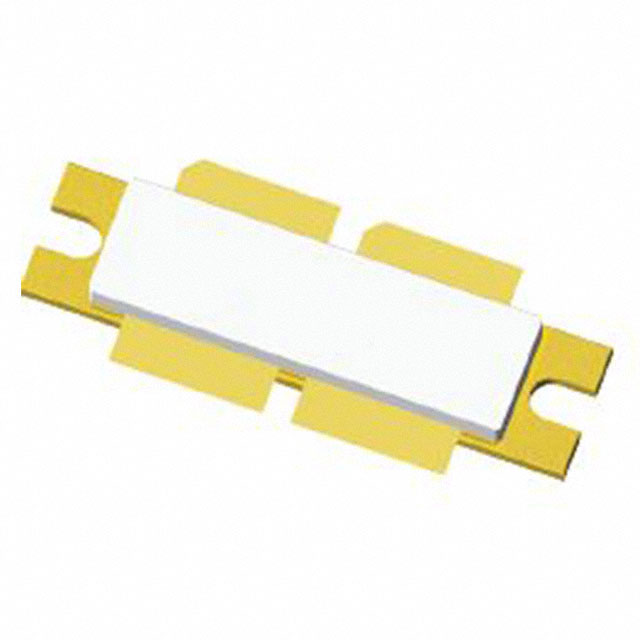

PTVA127002EV-V1-R0
ActiveMACOM Technology Solutions
RF MOSFET LDMOS 50V H-36275-4
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
PTVA127002EV-V1-R0
ActiveMACOM Technology Solutions
RF MOSFET LDMOS 50V H-36275-4
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | PTVA127002EV-V1-R0 |
|---|---|
| Current - Test | 150 mA |
| Current Rating (Amps) | 10 µA |
| Frequency [Max] | 1.4 GHz |
| Frequency [Min] | 1.2 GHz |
| Gain | 16 dB |
| Mounting Type | Chassis Mount |
| Package / Case | H-36275-4 |
| Power - Output | 700 W |
| Supplier Device Package | H-36275-4 |
| Voltage - Rated | 105 V |
| Voltage - Test | 50 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 538.47 | |
| 10 | $ 503.16 | |||
| Digi-Reel® | 1 | $ 538.47 | ||
| 10 | $ 503.16 | |||
| Tape & Reel (TR) | 50 | $ 485.51 | ||
Description
General part information
PTVA127002 Series
RF Mosfet 50 V 150 mA 1.2GHz ~ 1.4GHz 16dB 700W H-36275-4
