GLF2310A-T2G7

Active

GLF Integrated Power

2.1A CURRENT LIMIT POWER SWITCH

Search across all available documentation for this part.

Active

GLF Integrated Power

2.1A CURRENT LIMIT POWER SWITCH

Technical Specifications

Parameters and characteristics for this part

Specification	GLF2310A-T2G7

Current - Output (Max) [Max]	2.1 A
Fault Protection	Short Circuit, Over Temperature, Current Limiting (Adjustable), Reverse Current, UVLO
Features	Slew Rate Controlled
Mounting Type	Surface Mount
Number of Outputs	1

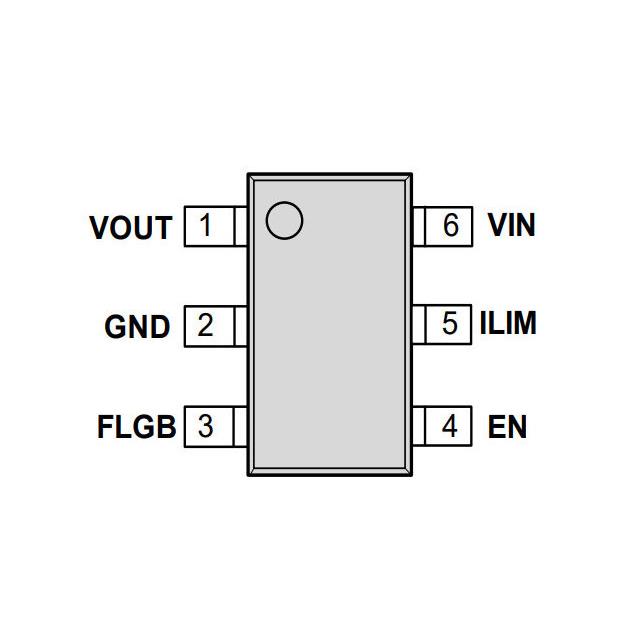

Package / Case	SOT-23-6
Ratio - Input:Output [custom]	1:1
Rds On (Typ)	50 mOhm
Supplier Device Package	SOT-23-6
Switch Type	USB Switch
Voltage - Load [Max]	5.5 V
Voltage - Load [Min]	2.5 V
Voltage - Supply (Vcc/Vdd)	False

Part	Fault Protection	Features	Number of Outputs	Voltage - Load [Min]	Voltage - Load [Max]	Mounting Type	Supplier Device Package	Rds On (Typ)	Current - Output (Max) [Max]	Package / Case	Switch Type	Ratio - Input:Output [custom]	Voltage - Supply (Vcc/Vdd)
GLF Integrated Power GLF2310A-T2G7	Current Limiting (Adjustable) Over Temperature Reverse Current Short Circuit UVLO	Slew Rate Controlled	1	2.5 V	5.5 V	Surface Mount	SOT-23-6	50 mOhm	2.1 A	SOT-23-6	USB Switch	1:1

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Power Switch/Driver 1:1 2.1A SOT-23-6

Technical documentation and resources

No documents available
