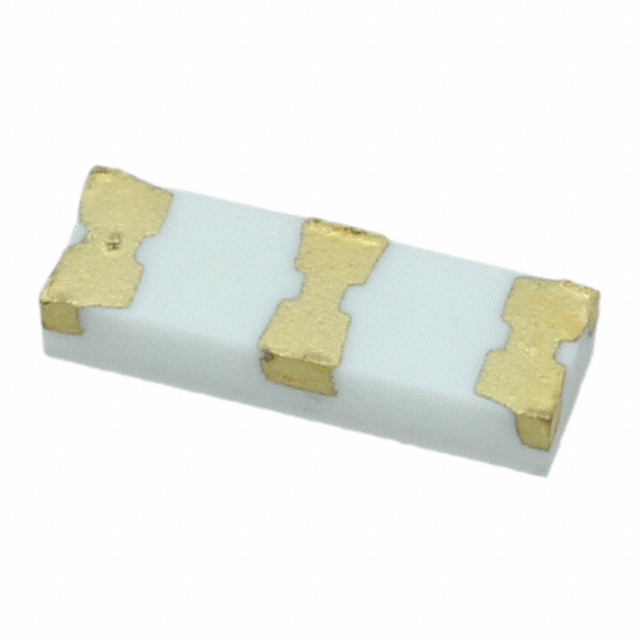

M620720
ActiveKyocera AVX
RF ANT 868MHZ/915MHZ CHIP SLD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
M620720
ActiveKyocera AVX
RF ANT 868MHZ/915MHZ CHIP SLD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | M620720 |
|---|---|
| Antenna Type | Chip |
| Applications | LPWAN, Sigfox, ISM, LoRa |
| Frequency (Center/Band) | 915 MHz, 868 MHz |
| Frequency Group [Max] | 1 GHz |
| Frequency Group [Min] | 300 MHz |
| Frequency Range [Max] | 928 MHz, 870 MHz |
| Frequency Range [Min] | 868 MHz, 902 MHz |
| Gain | 2.56 dBi |
| Height (Max) [Max] | 0.043 in |
| Height (Max) [Max] | 1.1 mm |
| Mounting Type | Surface Mount |
| Number of Bands | 1 |
| RF Family/Standard | General ISM |
| Termination | Solder |
| VSWR | 2.6 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 1.91 | |
| 10 | $ 1.72 | |||
| 25 | $ 1.62 | |||
| 100 | $ 1.38 | |||
| 250 | $ 1.30 | |||
| 500 | $ 1.14 | |||
| Digi-Reel® | 1 | $ 1.91 | ||
| 10 | $ 1.72 | |||
| 25 | $ 1.62 | |||
| 100 | $ 1.38 | |||
| 250 | $ 1.30 | |||
| 500 | $ 1.14 | |||
| Tape & Reel (TR) | 1000 | $ 0.94 | ||
| 2000 | $ 0.88 | |||
| 5000 | $ 0.84 | |||
| 10000 | $ 0.81 | |||
Description
General part information
M620720 Series
RF ANTENNA ISM, LoRa, LPWAN, Sigfox Chip Solder Surface Mount
Documents
Technical documentation and resources
