1415184

Active

Phoenix Contact

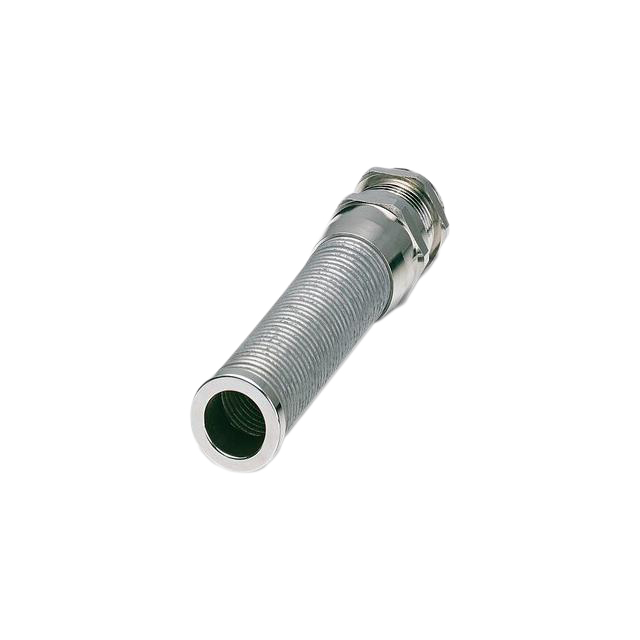

CABLE GLAND 13-21MM M32 BRASS

Search across all available documentation for this part.

Active

Phoenix Contact

CABLE GLAND 13-21MM M32 BRASS

Technical Specifications

Parameters and characteristics for this part

Specification	1415184

Color	Silver
Includes	Strain Relief, O-Ring, Seal
Ingress Protection	IP68/IP69 - Dust Tight, Water Resistant, Waterproof
Material	Brass, Nickel Plated
Operating Temperature [Max]	100 °C
Operating Temperature [Min]	-40 °C
Outside Cable Diameter (Max) [Max] [diameter]	21 mm
Outside Cable Diameter (Max) [Max] [diameter]	0.827 in
Outside Cable Diameter (Min)	13 mm
Outside Cable Diameter (Min) [Min] [diameter]	0.512 in
Thread Length	8 mm
Thread Length	0.315 in
Thread Size	M32
Type	Cable Gland

Part	Includes	Type	Ingress Protection	Thread Length	Thread Length	Outside Cable Diameter (Max) [Max] [diameter]	Outside Cable Diameter (Max) [Max] [diameter]	Outside Cable Diameter (Min) [Min] [diameter]	Outside Cable Diameter (Min)	Thread Size	Color	Operating Temperature [Max]	Operating Temperature [Min]	Material
Phoenix Contact 1415184	O-Ring Seal Strain Relief	Cable Gland	IP68/IP69 - Dust Tight Water Resistant Waterproof	8 mm	0.315 in	21 mm	0.827 in	0.512 in	13 mm	M32	Silver	100 °C	-40 °C	Brass Nickel Plated

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 63.50

General part information

Cable Gland Brass, Nickel Plated M32 Silver
