846-058-559-201
ActiveEDAC Inc.

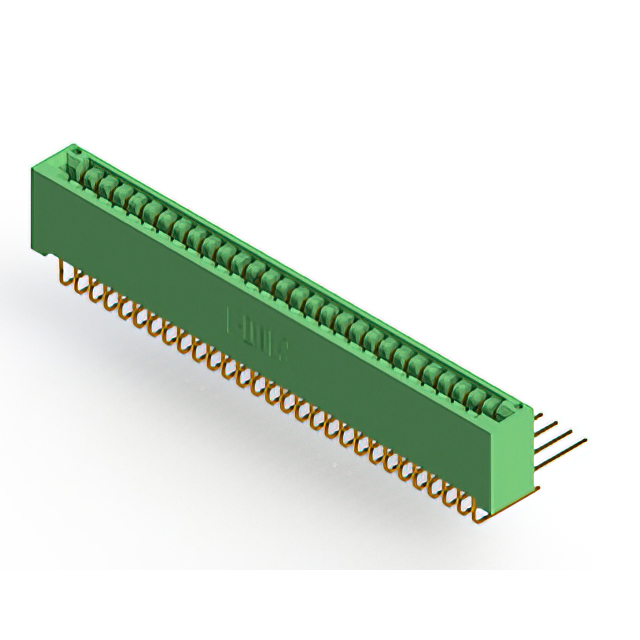

CONN EDGE DUAL FMALE 58POS 0.125
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
846-058-559-201
ActiveEDAC Inc.
CONN EDGE DUAL FMALE 58POS 0.125
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 846-058-559-201 |
|---|---|
| Card Thickness [Max] | 1.78 mm |
| Card Thickness [Max] | 0.07 in |
| Card Thickness [Min] | 1.37 mm |
| Card Thickness [Min] | 0.054 " |
| Card Type | Non Specified - Dual Edge |
| Color | Green |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Material | Copper Alloy |
| Contact Type | Cantilever |
| Gender | Female |
| Material - Insulation | Diallyl Phthalate (DAP) |
| Mounting Type | Through Hole, Right Angle |
| Number of Positions | 58 |
| Number of Positions/Bay/Row | 29 |
| Number of Rows | 2 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 0.125 in |
| Pitch [x] | 3.18 mm |
| Read Out | Dual |
| Termination | Solder |
| Termination Rows | 2 |
846-058 Series
...
| Part | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Termination Rows | Number of Positions/Bay/Row | Contact Type | Number of Positions | Read Out | Material - Insulation | Mounting Type | Gender | Pitch [x] | Pitch [x] | Card Type | Contact Material | Operating Temperature [Max] | Operating Temperature [Min] | Flange Feature [diameter] | Flange Feature | Flange Feature [diameter] | Number of Rows | Contact Finish | Termination | Color | Contact Finish Thickness | Contact Finish Thickness | Flange Feature | Flange Feature | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 2 | 29 | Cantilever | 58 | Dual | Diallyl Phthalate (DAP) | Through Hole Right Angle | Female | 0.125 in | 3.18 mm | Non Specified - Dual Edge | Copper Alloy | 125 °C | -40 °C | 2.95 mm | Floating Bobbin Top Mount Opening | 0.116 in | 2 | Gold | Solder | Green | 10 Áin | 0.25 Ám | |||
EDAC Inc. | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 2 | 29 | Cantilever | 58 | Dual | Diallyl Phthalate (DAP) | Through Hole | Female | 0.125 in | 3.18 mm | Non Specified - Dual Edge | Copper Alloy | 125 °C | -40 °C | 2 | Gold | Solder Eyelet(s) | Green | 10 Áin | 0.25 Ám | ||||||
EDAC Inc. | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 2 | 29 | Cantilever | 58 | Dual | Diallyl Phthalate (DAP) | Through Hole | Female | 0.125 in | 3.18 mm | Non Specified - Dual Edge | Copper Alloy | 125 °C | -40 °C | Side Mount Opening Unthreaded | 2 | Gold | Solder | Green | 10 Áin | 0.25 Ám | 3.25 mm | 0.128 in | |||
EDAC Inc. | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 2 | 29 | Cantilever | 58 | Dual | Diallyl Phthalate (DAP) | Through Hole | Female | 0.125 in | 3.18 mm | Non Specified - Dual Edge | Copper Alloy | 125 °C | -40 °C | 2 | Gold | Solder | Green | 10 Áin | 0.25 Ám | 3.25 mm | 0.128 in | ||||
EDAC Inc. | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 2 | 29 | Cantilever | 58 | Dual | Diallyl Phthalate (DAP) | Through Hole | Female | 0.125 in | 3.18 mm | Non Specified - Dual Edge | Copper Alloy | 125 °C | -40 °C | Side Mount Opening Unthreaded | 2 | Gold | Wire Wrap | Green | 10 Áin | 0.25 Ám | 3.25 mm | 0.128 in | |||
EDAC Inc. | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 2 | 29 | Cantilever | 58 | Dual | Diallyl Phthalate (DAP) | Through Hole | Female | 0.125 in | 3.18 mm | Non Specified - Dual Edge | Copper Alloy | 125 °C | -40 °C | M3 Threaded Insert Top Mount Opening | 2 | Gold | Solder | Green | 10 Áin | 0.25 Ám | |||||
EDAC Inc. | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 2 | 29 | Cantilever | 58 | Dual | Diallyl Phthalate (DAP) | Through Hole | Female | 0.125 in | 3.18 mm | Non Specified - Dual Edge | Copper Alloy | 125 °C | -40 °C | 3.96 mm | Flush Mount Top Opening Unthreaded | 0.156 in | 2 | Gold | Solder Eyelet(s) | Green | 10 Áin | 0.25 Ám | |||
EDAC Inc. | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 2 | 29 | Cantilever | 58 | Dual | Diallyl Phthalate (DAP) | Board Edge Straddle Mount | Female | 0.125 in | 3.18 mm | Non Specified - Dual Edge | Copper Alloy | 125 °C | -40 °C | 3.96 mm | Top Mount Opening Unthreaded | 0.156 in | 2 | Gold | Solder Eyelet(s) | Green | 10 Áin | 0.25 Ám | Card Extender | ||
EDAC Inc. | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 2 | 29 | Cantilever | 58 | Dual | Diallyl Phthalate (DAP) | Through Hole | Female | 0.125 in | 3.18 mm | Non Specified - Dual Edge | Copper Alloy | 125 °C | -40 °C | 2 | Gold | Solder | Green | 10 Áin | 0.25 Ám | 3.25 mm | 0.128 in | ||||
EDAC Inc. | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 2 | 29 | Cantilever | 58 | Dual | Diallyl Phthalate (DAP) | Through Hole Right Angle | Female | 0.125 in | 3.18 mm | Non Specified - Dual Edge | Copper Alloy | 125 °C | -40 °C | 2 | Gold | Solder | Green | 10 Áin | 0.25 Ám |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 25 | $ 73.36 | |
Description
General part information
846-058 Series
58 Position Female Connector Non Specified - Dual Edge Gold 0.125" (3.18mm) Green
