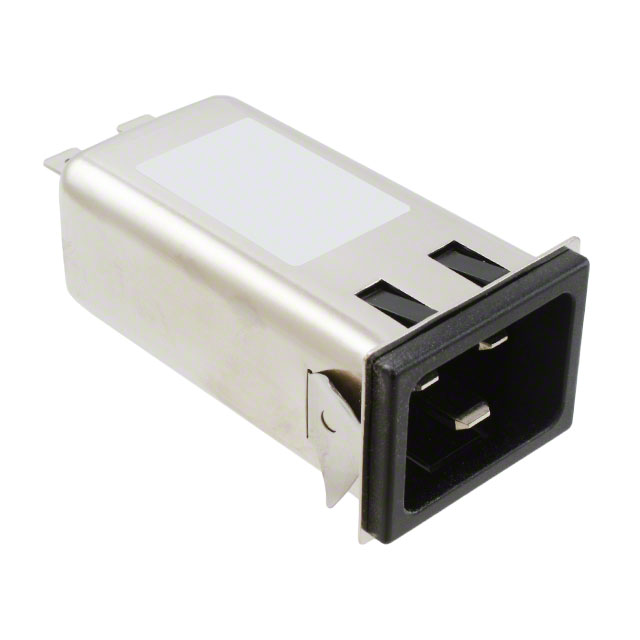

20GENG3E

Active

Delta Electronics

PWR ENT RCPT IEC320-C20 PANEL QC

Search across all available documentation for this part.

Active

Delta Electronics

PWR ENT RCPT IEC320-C20 PANEL QC

Technical Specifications

Parameters and characteristics for this part

Specification	20GENG3E

Accomodates a Fuse	False
Approval Agency	UL, VDE, CSA
Connector Style	IEC 320-C20
Connector Type	Male Blades, Receptacle
Current Rating - Appliance Inlet	20 A
Filter Type	Filtered (EMI, RFI) - Commercial
Mounting Type	Panel Mount, Snap-In
Panel Thickness [Max]	0.063 in
Panel Thickness [Max]	1.6 mm
Panel Thickness [Min]	0.81 mm
Panel Thickness [Min]	0.032 in
Termination	Quick Connect
Voltage Rating - Appliance Inlet [Max]	250 VAC
Voltage Rating - Appliance Inlet [Min]	115 VAC

Part	Current Rating - Appliance Inlet	Accomodates a Fuse	Panel Thickness [Min]	Panel Thickness [Min]	Panel Thickness [Max]	Panel Thickness [Max]	Connector Style	Approval Agency	Mounting Type	Termination	Connector Type	Voltage Rating - Appliance Inlet [Min]	Voltage Rating - Appliance Inlet [Max]	Filter Type
Delta Electronics 20GENG3E	20 A		0.81 mm	0.032 in	0.063 in	1.6 mm	IEC 320-C20	CSA UL VDE	Panel Mount Snap-In	Quick Connect	Male Blades Receptacle	115 VAC	250 VAC	Filtered (EMI RFI) - Commercial

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Power Entry Connector Receptacle, Male Blades IEC 320-C20 Panel Mount, Snap-In
