89033.35.01
ActivePrysmian Group

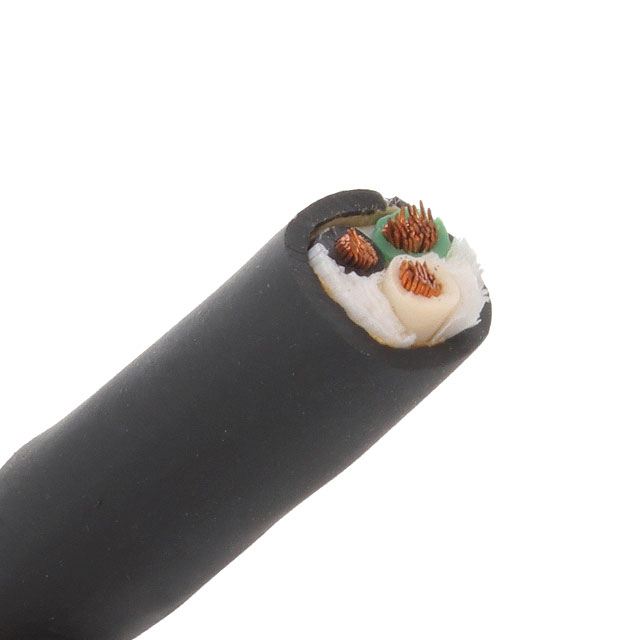

CABLE 3COND 12AWG BLACK 10'
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 89033.35.01 |
|---|---|
| Cable Type | Multi-Conductor |
| Conductor Insulation | Thermoplastic Elastomer (TPE) |
| Conductor Material | Copper, Bare |
| Conductor Strand [custom] | 30 AWG |
| Conductor Strand [custom] | 65 |
| Features | Oil Resistant |
| Jacket (Insulation) Diameter [diameter] | 0.443 in |
| Jacket (Insulation) Diameter [diameter] | 11.25 mm |
| Jacket (Insulation) Material | Thermoplastic Elastomer (TPE) |
| Jacket (Insulation) Thickness | 0.762 mm |
| Jacket (Insulation) Thickness | 0.03 in |
| Jacket Color | Black |
| Length | 3000 ", 10 ft |
| Length | 76.2 m, 15.24 m, 3.05 m |
| Length [x] | 30.5 m, 7.62 m |
| Length [x] | 100 ft, 50 ft, 25 ft |
| Number of Conductors | 3 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -50 °C |
| Usage | Cord and Cordset |
| Voltage | 300 V |
| Wire Gauge | 12 AWG |
89033 Series
| Part | Conductor Material | Operating Temperature [Min] | Operating Temperature [Max] | Jacket (Insulation) Material | Length | Length | Wire Gauge | Features | Conductor Strand [custom] | Conductor Strand [custom] | Cable Type | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Conductor Insulation | Voltage | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Number of Conductors | Length [x] | Length [x] | Jacket Color | Usage |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Prysmian Group | Copper Bare | -50 °C | 105 ░C | Thermoplastic Elastomer (TPE) | 3000 " | 76.2 m | 12 AWG | Oil Resistant | 30 AWG | 65 | Multi-Conductor | 0.443 in | 11.25 mm | Thermoplastic Elastomer (TPE) | 300 V | 0.762 mm | 0.03 in | 3 | ||||
Prysmian Group | Copper Bare | -50 °C | 105 ░C | Thermoplastic Elastomer (TPE) | 10 ft 3000 " | 3.05 m 15.24 m 76.2 m | 12 AWG | Oil Resistant | 30 AWG | 65 | Multi-Conductor | 0.443 in | 11.25 mm | Thermoplastic Elastomer (TPE) | 300 V | 0.762 mm | 0.03 in | 3 | 7.62 m 30.5 m | 25 ft 50 ft 100 ft | Black | Cord and Cordset |
Prysmian Group | Copper Annealed Bare | -50 °C | 105 ░C | Thermoplastic Elastomer (TPE) | 12 AWG | Oil Resistant | 30 AWG | 65 | Multi-Conductor | 0.443 in | 11.25 mm | Thermoplastic Elastomer (TPE) | 300 V | 0.762 mm | 0.03 in | 3 | ||||||
Prysmian Group | Copper Annealed Bare | -50 °C | 105 ░C | Thermoplastic Elastomer (TPE) | 1000 ft | 304.8 m | 12 AWG | Oil Resistant | 30 AWG | 65 | Multi-Conductor | 0.443 in | 11.25 mm | Thermoplastic Elastomer (TPE) | 300 V | 0.762 mm | 0.03 in | 3 | Black | |||
Prysmian Group | Copper Annealed Bare | -50 °C | 105 ░C | Thermoplastic Elastomer (TPE) | 1000 ft | 304.8 m | 12 AWG | Oil Resistant | 30 AWG | 65 | Multi-Conductor | 0.443 in | 11.25 mm | Thermoplastic Elastomer (TPE) | 300 V | 0.762 mm | 0.03 in | 3 | ||||
Prysmian Group | Copper Annealed Bare | -50 °C | 105 ░C | Thermoplastic Elastomer (TPE) | 12 AWG | Oil Resistant | 30 AWG | 65 | Multi-Conductor | 0.443 in | 11.25 mm | Thermoplastic Elastomer (TPE) | 300 V | 0.762 mm | 0.03 in | 3 | Black | |||||
Prysmian Group | Copper Annealed Bare | -50 °C | 105 ░C | Thermoplastic Elastomer (TPE) | 12 AWG | Oil Resistant | 30 AWG | 65 | Multi-Conductor | 0.443 in | 11.25 mm | Thermoplastic Elastomer (TPE) | 300 V | 0.762 mm | 0.03 in | 3 | Yellow | |||||
Prysmian Group | Copper Annealed Bare | -50 °C | 105 ░C | Thermoplastic Elastomer (TPE) | 12 AWG | Oil Resistant | 30 AWG | 65 | Multi-Conductor | 0.443 in | 11.25 mm | Thermoplastic Elastomer (TPE) | 300 V | 0.762 mm | 0.03 in | 3 | Yellow | |||||
Prysmian Group | Copper Annealed Bare | -50 °C | 105 ░C | Thermoplastic Elastomer (TPE) | 12 AWG | Oil Resistant | 30 AWG | 65 | Multi-Conductor | 0.443 in | 11.25 mm | Thermoplastic Elastomer (TPE) | 300 V | 0.762 mm | 0.03 in | 3 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 171.32 | |
| 1 | $ 87.49 | |||
| 1 | $ 339.53 | |||
| 1 | $ 34.38 | |||
| 5 | $ 28.13 | |||
| 5 | $ 140.17 | |||
| 5 | $ 277.80 | |||
| 5 | $ 71.58 | |||
| 10 | $ 109.02 | |||
| 10 | $ 55.67 | |||
| 10 | $ 216.07 | |||
| 10 | $ 21.88 | |||
| Spool | 1 | $ 458.28 | ||
| 2 | $ 435.77 | |||
| 3 | $ 423.03 | |||
| 5 | $ 407.43 | |||
| 7 | $ 397.41 | |||
| 10 | $ 387.00 | |||
| 25 | $ 361.27 | |||
Description
General part information
89033 Series
3 Conductor Multi-Conductor Cable Black 12 AWG 10.00' (3.05m)
