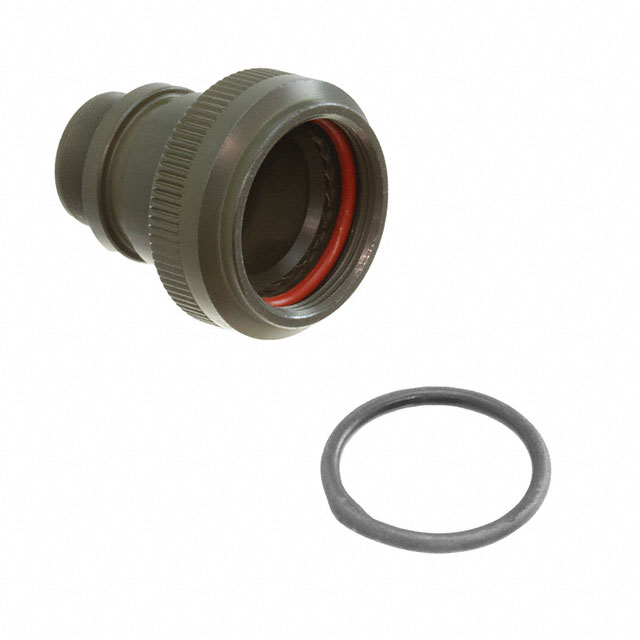

TXR40AB00-1408BI

Active

TE Connectivity Raychem Cable Protection

CONN BACKSHELL ADPT SZ15 D M22

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

TXR40AB00-1408BI

Active

TE Connectivity Raychem Cable Protection

CONN BACKSHELL ADPT SZ15 D M22

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	TXR40AB00-1408BI

Cable Exit	180 °
Color	Olive Drab
Diameter - Outside [diameter]	1.142 in
Diameter - Outside [diameter]	29 mm
Features	Tinel Lock
For Use With/Related Products	MIL-DTL-38999 Series III, IV
Includes	1 pcs, 1 pcs, 1 pcs, 1 pcs
Ingress Protection	Environment Resistant
Material	Aluminum Alloy
Plating	Cadmium
Shell Size - Insert	15
Shell Size - Insert	D
Shielding	Shielded
Type	Backshell, Heat Shrink Adapter

TXR40AB00 Series

Part	Thread Size	Type	Plating	Shell Size - Insert	Shell Size - Insert	Material	Cable Exit	Includes	Diameter - Outside [diameter]	Diameter - Outside [diameter]	Features	Ingress Protection	Color	Shielding	For Use With/Related Products	Includes	Shell Size - Insert [custom]	Shell Size - Insert [custom]	Diameter - Outside [diameter]
TE Connectivity Raychem Cable Protection TXR40AB00-1012BI	M15x1	Backshell Heat Shrink Adapter	Cadmium	B	11	Aluminum Alloy	180 °	1 Braid 1 Tinel Ring 2 O-Rings 2 pc Backshell	0.827 in	21 mm	Tinel Lock	Environment Resistant	Olive Drab	Shielded	MIL-DTL-38999 Series III IV
TE Connectivity Raychem Cable Protection TXR40AB00-2014AI2	M31x1	Backshell Heat Shrink Adapter	Cadmium	G	21	Aluminum Alloy	180 °		1.457 "	37 mm	Tinel Lock	Environment Resistant	Olive Drab	Shielded	MIL-DTL-38999 Series III IV	1 pcs 1 pcs 1 pcs 1 pcs
TE Connectivity Raychem Cable Protection TXR40AB00-1204BI	M18x1	Backshell Heat Shrink Adapter	Cadmium	C	13	Aluminum Alloy	180 °		0.965 in	24.5 mm	Tinel Lock	Environment Resistant	Olive Drab	Shielded	MIL-DTL-38999 Series III IV	1 pcs 1 pcs 1 pcs 1 pcs
TE Connectivity Raychem Cable Protection TXR40AB00-1805AI	M28x1	Backshell Heat Shrink Adapter	Cadmium	F	19	Aluminum Alloy	180 °		1.398 in	35.5 mm	Tinel Lock	Environment Resistant	Olive Drab	Shielded	MIL-DTL-38999 Series III IV	1 pcs 1 pcs 1 pcs 1 pcs
TE Connectivity Raychem Cable Protection TXR40AB00-0804AI2	M12x1	Backshell Heat Shrink Adapter	Cadmium			Aluminum Alloy	180 °		0.709 in	18 mm	Tinel Lock	Environment Resistant	Olive Drab	Shielded	MIL-DTL-38999 Series III IV	1 pcs 1 pcs 1 pcs 1 pcs	9	A
TE Connectivity Raychem Cable Protection TXR40AB00-2420BI	M37x1	Backshell Heat Shrink Adapter	Cadmium	J	25	Aluminum Alloy	180 °		1.713 "	43.5 mm	Tinel Lock	Environment Resistant	Olive Drab	Shielded	MIL-DTL-38999 Series III IV	1 pcs 1 pcs 1 pcs 1 pcs
TE Connectivity Raychem Cable Protection TXR40AB00-1408BI		Backshell Heat Shrink Adapter	Cadmium	D	15	Aluminum Alloy	180 °			1.142 in	Tinel Lock	Environment Resistant	Olive Drab	Shielded	MIL-DTL-38999 Series III IV	1 pcs 1 pcs 1 pcs 1 pcs			29 mm
TE Connectivity Raychem Cable Protection TXR40AB00-2404AI	M37x1	Backshell Heat Shrink Adapter	Cadmium	J	25	Aluminum Alloy	180 °		1.713 "	43.5 mm	Tinel Lock	Environment Resistant	Olive Drab	Shielded	MIL-DTL-38999 Series III IV	1 pcs 1 pcs 1 pcs 1 pcs
TE Connectivity Raychem Cable Protection TXR40AB00-1010BI	M15x1	Backshell Heat Shrink Adapter	Cadmium	B	11	Aluminum Alloy	180 °	1 Braid 1 Tinel Ring 2 O-Rings 2 pc Backshell	0.827 in	21 mm	Tinel Lock	Environment Resistant	Olive Drab	Shielded	MIL-DTL-38999 Series III IV
TE Connectivity Raychem Cable Protection TXR40AB00-1008BI	M15x1	Backshell Heat Shrink Adapter	Cadmium	B	11	Aluminum Alloy	180 °	1 Braid 1 Tinel Ring 2 O-Rings 2 pc Backshell	0.827 in	21 mm	Tinel Lock	Environment Resistant	Olive Drab	Shielded	MIL-DTL-38999 Series III IV

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 143.90
		10	$ 122.32
		25	$ 114.67
		50	$ 109.21

Description

General part information

TXR40AB00 Series

Olive Drab Connector Backshell, Heat Shrink Adapter M22x1 15, D
