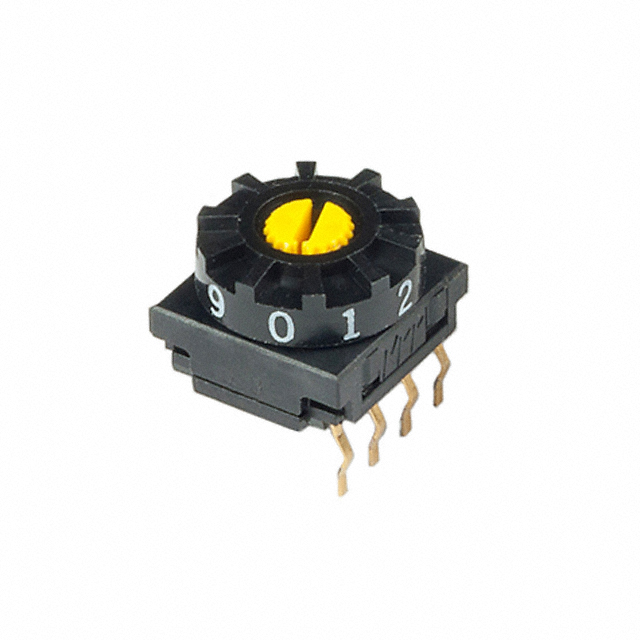

FR01SC10P-W-S

Active

NKK Switches

SW ROTARY DIP BCD COMP 0.1A 5V

Search across all available documentation for this part.

Active

NKK Switches

SW ROTARY DIP BCD COMP 0.1A 5V

Technical Specifications

Parameters and characteristics for this part

Specification	FR01SC10P-W-S

Actuator Level	Raised
Actuator Type	Rotary with Knob
Body Material	Polyamide (PA), Nylon, Glass Filled
Circuit	BCD Complement
Contact Finish	Gold
Contact Material	Copper Alloy
Current Rating (Amps)	100 mA
Electrical Life	10000 Cycles
Height Above Board [z]	0.284 in
Height Above Board [z]	7.21 mm
Length	10 mm
Length	0.394 in
Mechanical Life	10000 Steps
Mounting Type	Through Hole
Number of Positions	10
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-25 °C
Pitch	Full
Pitch [x]	0.1 in
Pitch [x]	2.54 mm
Termination Style	PC Pin
Voltage Rating	5 V
Washable	True

Part	Length	Length	Body Material	Voltage Rating	Mechanical Life	Circuit	Height Above Board [z]	Height Above Board [z]	Termination Style	Number of Positions	Pitch [x]	Pitch	Pitch [x]	Mounting Type	Contact Material	Actuator Type	Operating Temperature [Min]	Operating Temperature [Max]	Electrical Life	Contact Finish	Current Rating (Amps)	Actuator Level
NKK Switches FR01SC10P-W-S	10 mm	0.394 in	Polyamide (PA) Nylon Glass Filled	5 V	10000 Steps	BCD Complement	0.284 in	7.21 mm	PC Pin	10	0.1 in	Full	2.54 mm	Through Hole	Copper Alloy	Rotary with Knob	-25 °C	85 °C	10000 Cycles	Gold	100 mA	Raised
NKK Switches FR01SC10P-S	10 mm	0.394 in	Polyamide (PA) Nylon Glass Filled	5 V	10000 Steps	BCD Complement	0.284 in	7.21 mm	PC Pin	10	0.1 in	Full	2.54 mm	Through Hole	Copper Alloy	Rotary with Knob	-25 °C	85 °C	10000 Cycles	Gold	100 mA	Raised
NKK Switches FR01SC10P	10 mm	0.394 in	Polyamide (PA) Nylon Glass Filled	5 V	10000 Steps	BCD Complement	0.284 in	7.21 mm	PC Pin	10	0.1 in	Full	2.54 mm	Through Hole	Copper Alloy	Rotary with Knob	-25 °C	85 °C	10000 Cycles	Gold	100 mA	Raised

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Dip Switch BCD Complement 10 Position Through Hole Rotary with Knob Actuator 100mA 5VDC
