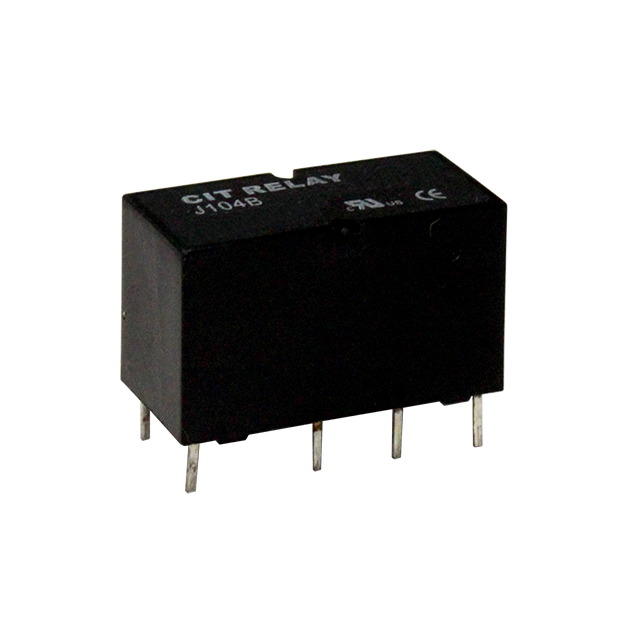

J104B2C3VDC.15S

Active

CIT Relay and Switch

RELAY GEN PURPOSE DPDT 3A 3V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

J104B2C3VDC.15S

Active

CIT Relay and Switch

RELAY GEN PURPOSE DPDT 3A 3V

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	J104B2C3VDC.15S

Coil Current	50 mA
Coil Resistance	60 Ohms
Coil Type	Non Latching
Contact Form	DPDT (2 Form C)
Contact Material	Silver Nickel (AgNi), Gold (Au)
Contact Rating (Current)	3 A
Load - Max Switching	660 W, 750 VA
Mounting Type	Through Hole
Must Operate Voltage	2.25 VDC
Must Release Voltage	0.3 VDC
Operate Time	4.5 ms
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Relay Type	General Purpose
Release Time	1.5 ms
Seal Rating	Sealed - Fully
Switching Voltage	250 VAC, 220 VDC
Termination Style	PC Pin

J104B2C Series

Part	Relay Type	Operate Time	Contact Rating (Current)	Coil Current	Seal Rating	Contact Form	Must Release Voltage	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Load - Max Switching	Coil Resistance	Coil Type	Must Operate Voltage	Release Time	Contact Material	Termination Style	Switching Voltage	Coil Voltage
CIT Relay and Switch J104B2C3VDC.15S	General Purpose	4.5 ms	3 A	50 mA	Sealed - Fully	DPDT (2 Form C)	0.3 VDC	Through Hole	85 °C	-40 °C	660 W 750 VA	60 Ohms	Non Latching	2.25 VDC	1.5 ms	Gold (Au) Silver Nickel (AgNi)	PC Pin	220 VDC 250 VAC
CIT Relay and Switch J104B2C24VDC.20S	General Purpose	4.5 ms	3 A	8.3 mA	Sealed - Fully	DPDT (2 Form C)	2.4 VDC	Through Hole	85 °C	-40 °C	660 W 750 VA	2.88 kOhms	Non Latching	18 VDC	1.5 ms	Gold (Au) Silver Nickel (AgNi)	PC Pin	220 VDC 250 VAC	24 VDC
CIT Relay and Switch J104B2C3VDC.20S	General Purpose	4.5 ms	3 A	66.7 mA	Sealed - Fully	DPDT (2 Form C)	0.3 VDC	Through Hole	85 °C	-40 °C	660 W 750 VA	45 Ohms	Non Latching	2.25 VDC	1.5 ms	Gold (Au) Silver Nickel (AgNi)	PC Pin	220 VDC 250 VAC
CIT Relay and Switch J104B2C12VDC.15S	General Purpose	4.5 ms	3 A		Sealed - Fully	DPDT (2 Form C)	1.2 VDC	Through Hole	85 °C	-40 °C	660 W 750 VA	960 Ohms	Non Latching	9 VDC	1.5 ms	Gold (Au) Silver Nickel (AgNi)	PC Pin	220 VDC 250 VAC	12 VDC
CIT Relay and Switch J104B2C5VDC.15S	General Purpose	4.5 ms	3 A	29.9 mA	Sealed - Fully	DPDT (2 Form C)	0.5 VDC	Through Hole	85 °C	-40 °C	660 W 750 VA	167 Ohms	Non Latching	3.75 VDC	1.5 ms	Gold (Au) Silver Nickel (AgNi)	PC Pin	220 VDC 250 VAC	5 VDC
CIT Relay and Switch J104B2C12VDC.20S	General Purpose	4.5 ms	3 A	16.7 mA	Sealed - Fully	DPDT (2 Form C)	1.2 VDC	Through Hole	85 °C	-40 °C	660 W 750 VA	720 Ohms	Non Latching	9 VDC	1.5 ms	Gold (Au) Silver Nickel (AgNi)	PC Pin	220 VDC 250 VAC	12 VDC

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	4000	$ 0.92

Description

General part information

J104B2C Series

General Purpose Relay DPDT (2 Form C) 3VDC Coil Through Hole
