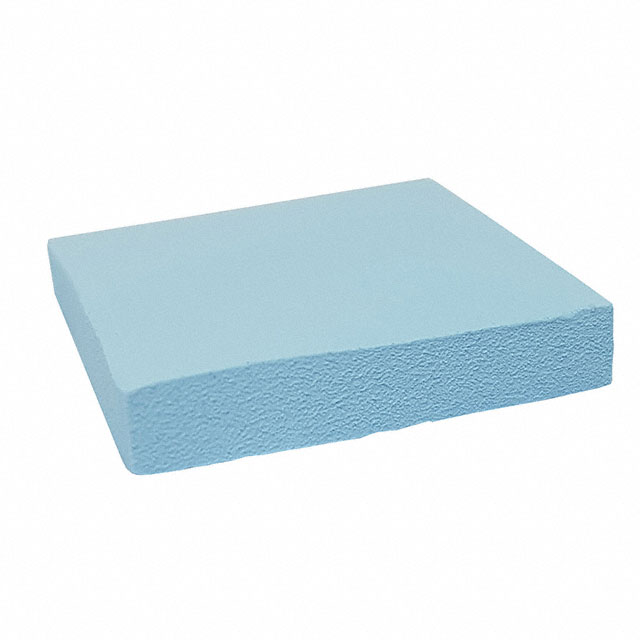

TG-A6200-25-25-5.0
Activet-Global Technology
THERM PAD 25MMX25MM BLUE
Deep-Dive with AI
Search across all available documentation for this part.
TG-A6200-25-25-5.0
Activet-Global Technology
THERM PAD 25MMX25MM BLUE
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | TG-A6200-25-25-5.0 |
|---|---|
| Adhesive | Tacky - Both Sides |
| Color | Blue |
| Material | Silicone |
| Outline [x] | 25 mm |
| Outline [y] | 25 mm |
| Shape | Square |
| Shelf Life | 24 Months |
| Thermal Conductivity | 6.2 W/m-K |
| Thickness | 0.197 " |
| Thickness | 5 mm |
| Usage | Multi |
TG-A6200 Series
...
| Part | Material | Adhesive | Thickness | Thickness | Shelf Life | Color | Shape | Outline [y] | Outline [x] | Usage | Thermal Conductivity | Backing, Carrier |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
t-Global Technology | Silicone | Tacky - Both Sides | 0.197 " | 5 mm | 24 Months | Blue | Square | 10 mm | 10 mm | Multi | 6.2 W/m-K | |
t-Global Technology | Silicone | Tacky - One Side | 0.118 in | 3 mm | 24 Months | Blue | Square | 100 mm | 100 mm | Multi | 5 W/m-K | Fiberglass |
t-Global Technology | Silicone | Tacky - Both Sides | 0.118 in | 3 mm | 24 Months | Blue | Square | 5 mm | 5 mm | Multi | 6.2 W/m-K | |
t-Global Technology | Silicone | Tacky - Both Sides | 0.031 in | 0.787 mm | 24 Months | Blue | Square | 325 mm | 325 mm | Multi | 6.2 W/m-K | |
t-Global Technology | Silicone | Tacky - Both Sides | 0.0197 in | 0.5 mm | 24 Months | Blue | Square | 30 mm | 30 mm | Multi | 6.2 W/m-K | |
t-Global Technology | Silicone | Tacky - Both Sides | 0.0394 in | 1 mm | 24 Months | Blue | Square | 28 mm | 28 mm | Multi | 6.2 W/m-K | |
t-Global Technology | Silicone | Tacky - Both Sides | 0.0394 in | 1 mm | 24 Months | Blue | Square | 25 mm | 25 mm | Multi | 6.2 W/m-K | |
t-Global Technology | Silicone | Tacky - Both Sides | 0.197 " | 5 mm | 24 Months | Blue | Square | 25 mm | 25 mm | Multi | 6.2 W/m-K | |
t-Global Technology | Silicone | Tacky - Both Sides | 0.079 in | 2 mm | 24 Months | Blue | Square | 15 mm | 15 mm | Multi | 6.2 W/m-K | |
t-Global Technology | Silicone | Tacky - Both Sides | 0.157 in | 4 mm | 24 Months | Blue | Square | 25 mm | 25 mm | Multi | 6.2 W/m-K |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 3.91 | |
| 10 | $ 3.81 | |||
| 25 | $ 3.70 | |||
| 50 | $ 3.50 | |||
| 100 | $ 3.29 | |||
| 250 | $ 3.09 | |||
| 500 | $ 2.98 | |||
| 1000 | $ 2.67 | |||
Description
General part information
TG-A6200 Series
Thermal Pad Blue 25.00mm x 25.00mm Square Tacky - Both Sides
