0190690035

Active

Molex

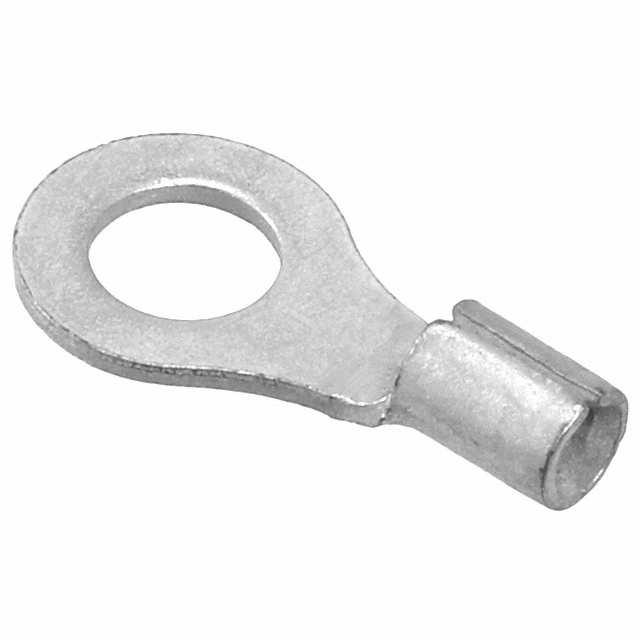

CONN RING CIRC 18-22AWG #8 CRIMP

Deep-Dive with AI

Search across all available documentation for this part.

Documents0190440069 Drawing/Datasheet

0190690035

Active

Molex

CONN RING CIRC 18-22AWG #8 CRIMP

Deep-Dive with AI

Documents0190440069 Drawing/Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	0190690035

Contact Finish	Electro-Tin
Contact Material	Copper
Insulation	Non-Insulated
Length - Overall [x]	0.641 in
Length - Overall [x]	16.28 mm
Mounting Type	Free Hanging (In-Line)
Stud/Tab Size	8 Stud
Terminal Type	Circular
Termination	Crimp
Thickness	0.71 mm
Thickness	0.028 in
Width - Outer Edges [y]	0.322 in
Width - Outer Edges [y]	8.18 mm
Wire Gauge [Max]	22 AWG
Wire Gauge [Min]	17.5 AWG

019069 Series

...

Part	Stud/Tab Size	Terminal Type	Contact Finish	Width - Outer Edges [y]	Width - Outer Edges [y]	Termination	Mounting Type	Wire Gauge [Max]	Wire Gauge [Min]	Length - Overall [x]	Length - Overall [x]	Insulation	Thickness	Thickness	Contact Material	Width - Outer Edges	Width - Outer Edges [x]	Stud/Tab Size	Length - Overall
Molex 0190690052	4 Stud	Circular	Electro-Tin	0.264 "	6.7 mm	Crimp	Free Hanging (In-Line)	22 AWG	17.5 AWG	0.582 in	14.78 mm	Non-Insulated	0.71 mm	0.028 in	Copper
Molex 0190690102	6 Stud	Circular	Tin	0.26 in	6.6 mm	Crimp	Free Hanging (In-Line)			0.56 in	14.22 mm	Non-Insulated	0.79 mm	0.031 in	Copper
Molex 0190690027	2 Stud	Circular	Electro-Tin			Crimp	Free Hanging (In-Line)	22 AWG	17.5 AWG	0.484 in	12.29 mm	Non-Insulated	0.71 mm	0.028 in	Copper	5.96 mm	0.235 in
Molex 0190690114		Circular	Tin	0.322 in	8.18 mm	Crimp	Free Hanging (In-Line)			0.645 in		Non-Insulated	0.79 mm	0.031 in	Copper			8 Stud	16.38 mm
Molex 0190690195	0.25 Stud	Circular	Electro-Tin	0.75 in	19.05 mm	Crimp	Free Hanging (In-Line)	12 AWG	10 AWG	1.28 in	32.51 mm	Non-Insulated	1.02 mm	0.04 in	Copper
Molex 0190690066
Molex 0190690103		Circular	Tin	0.26 in	6.6 mm	Crimp	Free Hanging (In-Line)			0.56 in	14.22 mm	Non-Insulated	0.79 mm	0.031 in	Copper			8 Stud
Molex 0190690198		Circular	Electro-Tin	0.75 in	19.05 mm	Crimp	Free Hanging (In-Line)	12 AWG	10 AWG	1.28 in	32.51 mm	Non-Insulated	1.02 mm	0.04 in	Copper			7/16 Stud
Molex 0190690031	6 Stud	Circular	Electro-Tin			Crimp	Free Hanging (In-Line)	22 AWG	17.5 AWG	0.484 in	12.29 mm	Non-Insulated	0.71 mm	0.028 in	Copper	5.96 mm	0.235 in
Molex 0190690035		Circular	Electro-Tin	0.322 in	8.18 mm	Crimp	Free Hanging (In-Line)	22 AWG	17.5 AWG	0.641 in	16.28 mm	Non-Insulated	0.71 mm	0.028 in	Copper			8 Stud

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 0.12
		10	$ 0.08
		100	$ 0.06
		1000	$ 0.05
		3000	$ 0.04

Description

General part information

019069 Series

Ring Terminal Connector 8 Stud Circular 18-22 AWG Crimp

Documents

Technical documentation and resources

0190440069 Drawing/Datasheet

Datasheet
