430875-501
ActiveLaird Thermal Systems, Inc.
CP14-199-045-L2-EP-W12
Deep-Dive with AI
Search across all available documentation for this part.
430875-501
ActiveLaird Thermal Systems, Inc.
CP14-199-045-L2-EP-W12
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 430875-501 |
|---|---|
| Current - Max [Max] | 8.5 A |
| Delta Tmax @ Th | 25 °C, 65 °C |
| Features | Lead Wires, Sealed - Epoxy |
| Height [z] | 3.33 mm |
| Number of Stages | 1 |
| Operating Temperature | 80 °C |
| Qmax @ Th | 115.7 W |
| Resistance | 2.43 Ohms |
| Size / Dimension [x] | 40 mm |
| Size / Dimension [y] | 40 mm |
| Voltage - Max [Max] | 22.4 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 49.45 | |
| 5 | $ 46.59 | |||
| 20 | $ 45.16 | |||
| 40 | $ 43.73 | |||
| 60 | $ 42.59 | |||
| 100 | $ 41.45 | |||
Description
General part information
430875 Series

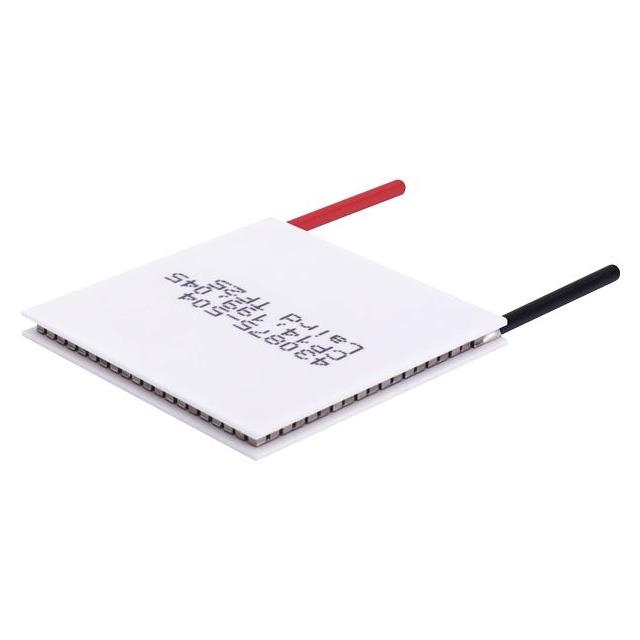

Peltier Module 115.7W @ 25°C 8.5 A 80°C
Documents
Technical documentation and resources
