1896/12C SL005

Active

ALPHA WIRE

MULTICONDUCTOR CABLE, CONTROL, UNSHIELDED, 12 CONDUCTOR, 20 AWG, 0.56 MM², 100 FT, 30.5 M

Search across all available documentation for this part.

Active

ALPHA WIRE

MULTICONDUCTOR CABLE, CONTROL, UNSHIELDED, 12 CONDUCTOR, 20 AWG, 0.56 MM², 100 FT, 30.5 M

Technical Specifications

Parameters and characteristics for this part

Specification	1896/12C SL005

Cable Type	Multi-Conductor
Conductor Insulation	Poly-Vinyl Chloride (PVC)
Conductor Material	Copper, Tinned
Conductor Strand [custom]	28
Conductor Strand [custom]	7
Jacket (Insulation) Diameter [diameter]	0.331 in
Jacket (Insulation) Diameter [diameter]	8.41 mm
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket (Insulation) Thickness	0.02 in
Jacket (Insulation) Thickness	0.508 mm
Jacket Color	Slate
Length [x]	30.5 m
Length [x]	100 ft
Number of Conductors	12
Operating Temperature [Max]	80 C
Operating Temperature [Min]	-20 C
Usage	Control, Communication
Voltage	300 V
Wire Gauge	20 AWG

Part	Usage	Conductor Material	Number of Conductors	Jacket (Insulation) Material	Cable Type	Conductor Insulation	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Jacket Color	Voltage	Conductor Strand [custom]	Conductor Strand [custom]	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Length [x]	Length [x]	Operating Temperature [Min]	Operating Temperature [Max]	Wire Gauge
ALPHA WIRE 1896/12C SL005	Communication Control	Copper Tinned	12	Poly-Vinyl Chloride (PVC)	Multi-Conductor	Poly-Vinyl Chloride (PVC)	0.02 in	0.508 mm	Slate	300 V	28	7	0.331 in	8.41 mm	30.5 m	100 ft	-20 C	80 C	20 AWG

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	1	$ 327.38
		3	$ 325.37
Newark	Spool of 100	1	$ 422.89

General part information

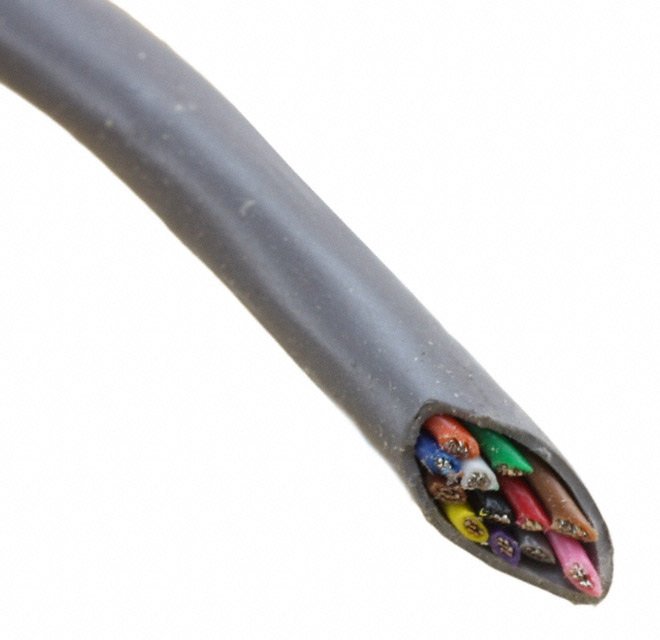

The 1896/12C SL005 is a 12-core Unshielded Cable with tinned copper conductor, PVC insulator and a slate PVC jacket.
