Q-2201K000R003i

Active

Amphenol Custom Cable

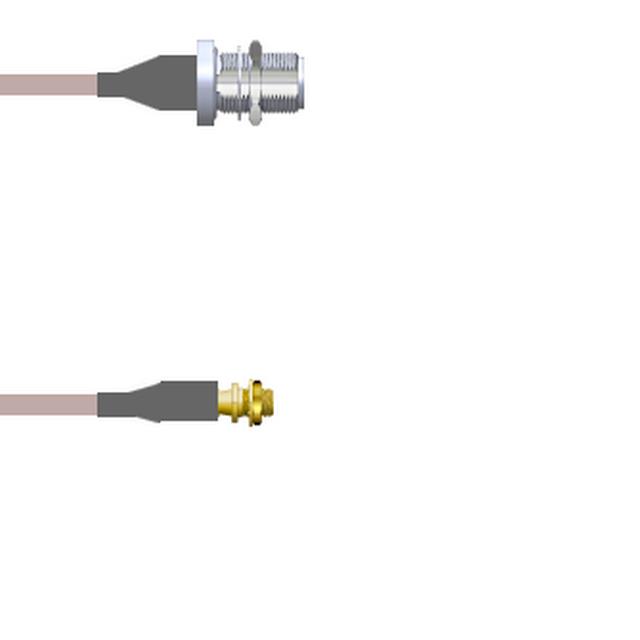

CBL ASSY MMCX-NTYPE JACK-JACK 3"

Deep-Dive with AI

Search across all available documentation for this part.

Q-2201K000R003i

Active

Amphenol Custom Cable

CBL ASSY MMCX-NTYPE JACK-JACK 3"

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	Q-2201K000R003i

1st Connector	MMCX Jack
1st Connector Mounting Feature	Bulkhead - Front Side Nut
1st Connector Mounting Type	Panel Mount
1st Contact Gender	Female
2nd Connector	N-Type Jack
2nd Connector Mounting Feature	Bulkhead - Front Side Nut
2nd Connector Mounting Type	Panel Mount
2nd Contact Gender	Female
Cable Type	RG-316 DB
Color	Copper
Features	Shielded
Frequency - Max [Max]	6000 MHz
Length	3 in
Length	76.2 mm
Overall Impedance	50 Ohms
Style	MMCX to N-Type

Q-2201K0 Series

Part	Frequency - Max [Max]	2nd Contact Gender	1st Connector Mounting Type	Color	Style	Length [x]	Length [x]	2nd Connector Mounting Feature	1st Connector Mounting Feature	1st Connector	Cable Type	1st Contact Gender	Overall Impedance	2nd Connector	2nd Connector Mounting Type	Features	Length	Length	Length	Length [x]
Amphenol Custom Cable Q-2201K000R018i	6000 MHz	Female	Panel Mount	Copper	MMCX to N-Type	457.2 mm	457.2 mm	Bulkhead - Front Side Nut	Bulkhead - Front Side Nut	MMCX Jack	RG-316 DB	Female	50 Ohms	N-Type Jack	Panel Mount	Shielded
Amphenol Custom Cable Q-2201K000R001M	6000 MHz	Female	Panel Mount	Copper	MMCX to N-Type			Bulkhead - Front Side Nut	Bulkhead - Front Side Nut	MMCX Jack	RG-316 DB	Female	50 Ohms	N-Type Jack	Panel Mount	Shielded	1 m	3.3 ft	39.4 in
Amphenol Custom Cable Q-2201K000R003i	6000 MHz	Female	Panel Mount	Copper	MMCX to N-Type			Bulkhead - Front Side Nut	Bulkhead - Front Side Nut	MMCX Jack	RG-316 DB	Female	50 Ohms	N-Type Jack	Panel Mount	Shielded	76.2 mm		3 in
Amphenol Custom Cable Q-2201K000R002M	6000 MHz	Female	Panel Mount	Copper	MMCX to N-Type			Bulkhead - Front Side Nut	Bulkhead - Front Side Nut	MMCX Jack	RG-316 DB	Female	50 Ohms	N-Type Jack	Panel Mount	Shielded	2 m	6.6 ft	78.7 in
Amphenol Custom Cable Q-2201K000R072i	6000 MHz	Female	Panel Mount	Copper	MMCX to N-Type			Bulkhead - Front Side Nut	Bulkhead - Front Side Nut	MMCX Jack	RG-316 DB	Female	50 Ohms	N-Type Jack	Panel Mount	Shielded	1.8 m	6 ft	72 in
Amphenol Custom Cable Q-2201K000R024i	6000 MHz	Female	Panel Mount	Copper	MMCX to N-Type			Bulkhead - Front Side Nut	Bulkhead - Front Side Nut	MMCX Jack	RG-316 DB	Female	50 Ohms	N-Type Jack	Panel Mount	Shielded	609.6 mm		24 "
Amphenol Custom Cable Q-2201K000R048i	6000 MHz	Female	Panel Mount	Copper	MMCX to N-Type			Bulkhead - Front Side Nut	Bulkhead - Front Side Nut	MMCX Jack	RG-316 DB	Female	50 Ohms	N-Type Jack	Panel Mount	Shielded	1200 mm	4 ft	48 in
Amphenol Custom Cable Q-2201K000R0.5M	6000 MHz	Female	Panel Mount	Copper	MMCX to N-Type			Bulkhead - Front Side Nut	Bulkhead - Front Side Nut	MMCX Jack	RG-316 DB	Female	50 Ohms	N-Type Jack	Panel Mount	Shielded	50 cm		19.69 "
Amphenol Custom Cable Q-2201K000R.25M	6000 MHz	Female	Panel Mount	Copper	MMCX to N-Type		250 mm	Bulkhead - Front Side Nut	Bulkhead - Front Side Nut	MMCX Jack	RG-316 DB	Female	50 Ohms	N-Type Jack	Panel Mount	Shielded				9.843 "
Amphenol Custom Cable Q-2201K000R009i	6000 MHz	Female	Panel Mount	Copper	MMCX to N-Type			Bulkhead - Front Side Nut	Bulkhead - Front Side Nut	MMCX Jack	RG-316 DB	Female	50 Ohms	N-Type Jack	Panel Mount	Shielded	228.6 mm		9 "

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 218.58
		25	$ 214.42
		50	$ 210.25
		100	$ 206.09
		250	$ 201.93

Description

General part information

Q-2201K0 Series

Cable Assembly Coaxial MMCX to N-Type RG-316 DB 3.000" (76.20mm)

Documents

Technical documentation and resources

No documents available
