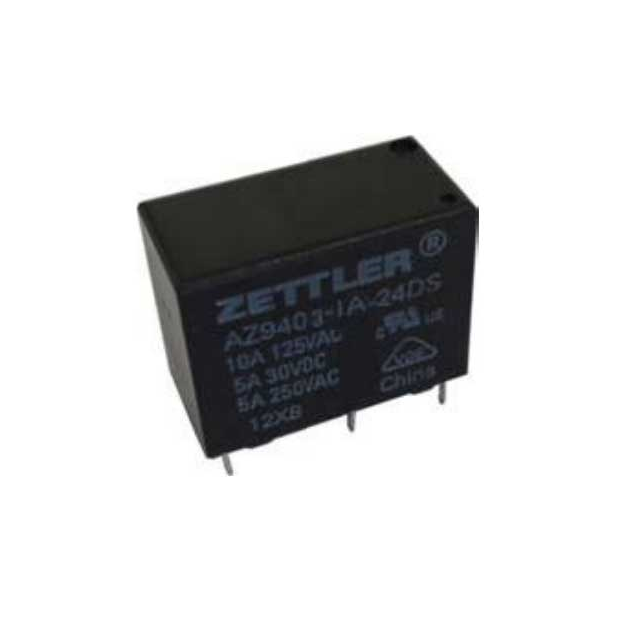

AZ9403-1A-12DE

Active

American Zettler

RELAY GEN PURPOSE SPST 10A 12V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

AZ9403-1A-12DE

Active

American Zettler

RELAY GEN PURPOSE SPST 10A 12V

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	AZ9403-1A-12DE

Approval Agency	UL, VDE
Coil Current	37.5 mA
Coil Insulation	Class F
Coil Resistance	320 Ohms
Coil Type	Non Latching
Coil Voltage	12 VDC
Contact Form	SPST-NO (1 Form A)
Contact Material	Silver Tin Oxide (AgSnO)
Contact Rating (Current)	10 A
Load - Max Switching	2770 VA, 150 W
Mounting Type	Through Hole
Must Operate Voltage	9 VDC
Must Release Voltage	0.6 VDC
Operate Time	8 ms
Operating Temperature [Max]	110 °C
Operating Temperature [Min]	-40 °C
Relay Type	General Purpose
Release Time	5 ms
Seal Rating	Sealed - Fully
Switching Voltage [Max]	150 VDC, 400 VAC
Termination Style	PC Pin

AZ9403-1A Series

Part	Contact Form	Approval Agency	Coil Insulation	Coil Current	Seal Rating	Coil Type	Switching Voltage [Max]	Contact Rating (Current)	Coil Resistance	Must Operate Voltage	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Release Time	Coil Voltage	Load - Max Switching	Contact Material	Termination Style	Operate Time	Relay Type	Must Release Voltage
American Zettler AZ9403-1A-12DE	SPST-NO (1 Form A)	UL VDE	Class F	37.5 mA	Sealed - Fully	Non Latching	150 VDC 400 VAC	10 A	320 Ohms	9 VDC	-40 °C	110 °C	Through Hole	5 ms	12 VDC	150 W 2770 VA	Silver Tin Oxide (AgSnO)	PC Pin	8 ms	General Purpose	0.6 VDC
American Zettler AZ9403-1A-24DSE	SPST-NO (1 Form A)	UL VDE	Class F	8.6 mA	Sealed - Fully	Non Latching	150 VDC 400 VAC	10 A		18 VDC	-40 °C	110 °C	Through Hole	5 ms	24 VDC	150 W 2770 VA	Silver Tin Oxide (AgSnO)	PC Pin	8 ms	General Purpose	1.2 VDC
American Zettler AZ9403-1A-12DSE	SPST-NO (1 Form A)	UL VDE	Class F	16.7 mA	Sealed - Fully	Non Latching	150 VDC 400 VAC	10 A	720 Ohms	9 VDC	-40 °C	110 °C	Through Hole	5 ms	12 VDC	150 W 2770 VA	Silver Tin Oxide (AgSnO)	PC Pin	8 ms	General Purpose	0.6 VDC
American Zettler AZ9403-1A-24DE	SPST-NO (1 Form A)	UL VDE	Class F	18.8 mA	Sealed - Fully	Non Latching	150 VDC 400 VAC	10 A	1280 Ohms	18 VDC	-40 °C	110 °C	Through Hole	5 ms	24 VDC	150 W 2770 VA	Silver Tin Oxide (AgSnO)	PC Pin	8 ms	General Purpose	1.2 VDC
American Zettler AZ9403-1A-5DS	SPST-NO (1 Form A)	UL VDE	Class F	40 mA		Non Latching	150 VDC 400 VAC	10 A	125 Ohms	3.8 VDC	-40 °C	110 °C	Through Hole	5 ms	5 VDC	150 W 2770 VA	Silver Tin Oxide (AgSnO)	PC Pin	8 ms	General Purpose	0.25 VDC
American Zettler AZ9403-1A-24DS	SPST-NO (1 Form A)	UL VDE	Class F	8.6 mA		Non Latching	150 VDC 400 VAC	10 A		18 VDC	-40 °C	110 °C	Through Hole	5 ms	24 VDC	150 W 2770 VA	Silver Tin Oxide (AgSnO)	PC Pin	8 ms	General Purpose	1.2 VDC

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 0.75
		10	$ 0.70
		25	$ 0.62
		50	$ 0.59
		100	$ 0.56
		250	$ 0.55

Description

General part information

AZ9403-1A Series

General Purpose Relay SPST-NO (1 Form A) 12VDC Coil Through Hole
