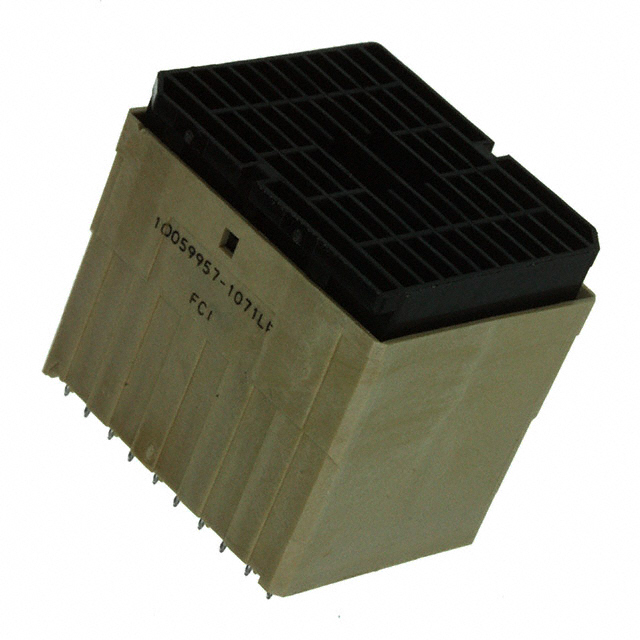

10059957-1071LF

Obsolete

Amphenol ICC (FCI)

CONN HDR HIGH SPEED 150POS PCB

Search across all available documentation for this part.

Obsolete

Amphenol ICC (FCI)

CONN HDR HIGH SPEED 150POS PCB

Technical Specifications

Parameters and characteristics for this part

Specification	10059957-1071LF

Color	Natural
Connector Style	High Speed
Connector Type	Header, Male Pins
Contact Finish	Gold
Contact Finish Thickness	0.76 Ám
Contact Finish Thickness	30 Áin
Contact Layout, Typical [custom]	50
Contact Layout, Typical [custom]	50
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Columns	10
Number of Positions	150
Number of Positions Loaded	All
Number of Rows	15
Pitch [x]	0.055 in
Pitch [x]	1.4 mm
Termination	Press-Fit

Part	Mounting Type	Connector Style	Contact Layout, Typical [custom]	Contact Layout, Typical [custom]	Contact Finish Thickness	Contact Finish Thickness	Material Flammability Rating	Number of Positions Loaded	Pitch [x]	Pitch [x]	Termination	Connector Type	Number of Columns	Color	Contact Finish	Number of Rows	Number of Positions
Amphenol ICC (FCI) 10059957-1071LF	Through Hole	High Speed	50	50	0.76 Ám	30 Áin	UL94 V-0	All	0.055 in	1.4 mm	Press-Fit	Header Male Pins	10	Natural	Gold	15	150

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

150 Connector Header, Male Pins Through Hole Natural High Speed
