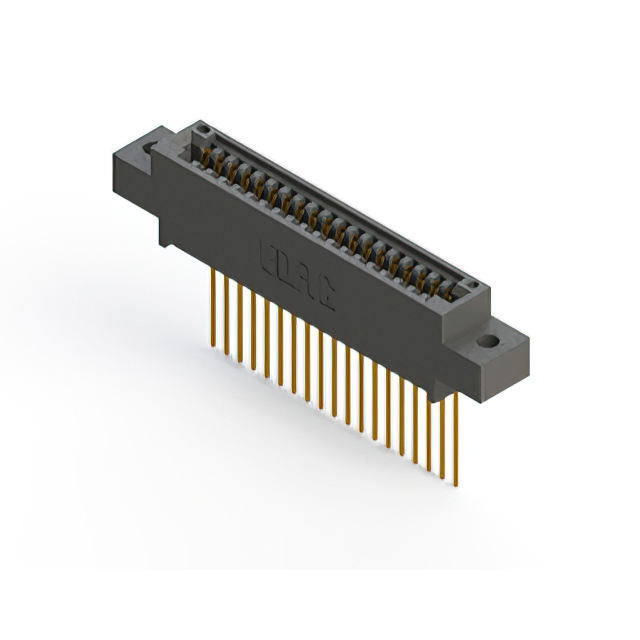

895-019-541-602

Active

EDAC Inc.

CONN EDGE SINGLE FML 19POS 0.100

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

895-019-541-602

Active

EDAC Inc.

CONN EDGE SINGLE FML 19POS 0.100

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	895-019-541-602

Card Thickness [Max]	1.78 mm
Card Thickness [Max]	0.07 in
Card Thickness [Min]	1.37 mm
Card Thickness [Min]	0.054 "
Card Type	Non Specified - Single Edge
Color	Black
Contact Finish	Gold
Contact Finish Thickness	10 Áin
Contact Finish Thickness	0.25 Ám
Contact Material	Copper Alloy
Contact Type	Cantilever
Flange Feature	3.25 mm
Flange Feature	0.128 in
Gender	Female
Material - Insulation	Polyphenylene Sulfide (PPS)
Mounting Type	Through Hole
Number of Positions	19
Number of Positions/Bay/Row [custom]	19
Number of Rows	1
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Pitch [x]	2.54 mm
Pitch [x]	0.1 in
Read Out	Single
Termination	Wire Wrap
Termination Rows	1

895-019 Series

...

Part	Read Out	Contact Finish	Number of Positions/Bay/Row [custom]	Gender	Color	Flange Feature [diameter]	Flange Feature	Flange Feature [diameter]	Mounting Type	Number of Positions	Termination	Contact Finish Thickness	Contact Finish Thickness	Card Thickness [Min]	Card Thickness [Min]	Card Thickness [Max]	Card Thickness [Max]	Pitch [x]	Pitch [x]	Contact Type	Termination Rows	Contact Material	Card Type	Operating Temperature [Max]	Operating Temperature [Min]	Number of Rows	Material - Insulation	Flange Feature	Flange Feature
EDAC Inc. 895-019-558-112	Single	Gold	19	Female	Black	3.25 mm	Flush Mount Side Opening Unthreaded	0.128 "	Through Hole Right Angle	19	Solder	10 Áin	0.25 Ám	1.37 mm	0.054 "	1.78 mm	0.07 in	2.54 mm	0.1 in	Cantilever	1	Copper Alloy	Non Specified - Single Edge	125 °C	-40 °C	1	Polyphenylene Sulfide (PPS)
EDAC Inc. 895-019-542-403	Single	Gold	19	Female	Black	2.95 mm	Floating Bobbin Top Mount Opening	0.116 in	Through Hole	19	Wire Wrap	10 Áin	0.25 Ám	1.37 mm	0.054 "	1.78 mm	0.07 in	2.54 mm	0.1 in	Cantilever	1	Copper Alloy	Non Specified - Single Edge	125 °C	-40 °C	1	Polyphenylene Sulfide (PPS)
EDAC Inc. 895-019-559-112	Single	Gold	19	Female	Black	3.25 mm	Flush Mount Side Opening Unthreaded	0.128 "	Through Hole Right Angle	19	Solder	10 Áin	0.25 Ám	1.37 mm	0.054 "	1.78 mm	0.07 in	2.54 mm	0.1 in	Cantilever	1	Copper Alloy	Non Specified - Single Edge	125 °C	-40 °C	1	Polyphenylene Sulfide (PPS)
EDAC Inc. 895-019-540-607	Single	Gold	19	Female	Black		M3 Threaded Insert Top Mount Opening		Through Hole	19	Wire Wrap	10 Áin	0.25 Ám	1.37 mm	0.054 "	1.78 mm	0.07 in	2.54 mm	0.1 in	Cantilever	1	Copper Alloy	Non Specified - Single Edge	125 °C	-40 °C	1	Polyphenylene Sulfide (PPS)
EDAC Inc. 895-019-541-607	Single	Gold	19	Female	Black		M3 Threaded Insert Top Mount Opening		Through Hole	19	Wire Wrap	10 Áin	0.25 Ám	1.37 mm	0.054 "	1.78 mm	0.07 in	2.54 mm	0.1 in	Cantilever	1	Copper Alloy	Non Specified - Single Edge	125 °C	-40 °C	1	Polyphenylene Sulfide (PPS)
EDAC Inc. 895-019-541-412	Single	Gold	19	Female	Black		Side Mount Opening Unthreaded		Through Hole	19	Wire Wrap	10 Áin	0.25 Ám	1.37 mm	0.054 "	1.78 mm	0.07 in	2.54 mm	0.1 in	Cantilever	1	Copper Alloy	Non Specified - Single Edge	125 °C	-40 °C	1	Polyphenylene Sulfide (PPS)	3.25 mm	0.128 in
EDAC Inc. 895-019-540-403	Single	Gold	19	Female	Black	2.95 mm	Floating Bobbin Top Mount Opening	0.116 in	Through Hole	19	Wire Wrap	10 Áin	0.25 Ám	1.37 mm	0.054 "	1.78 mm	0.07 in	2.54 mm	0.1 in	Cantilever	1	Copper Alloy	Non Specified - Single Edge	125 °C	-40 °C	1	Polyphenylene Sulfide (PPS)
EDAC Inc. 895-019-541-602	Single	Gold	19	Female	Black				Through Hole	19	Wire Wrap	10 Áin	0.25 Ám	1.37 mm	0.054 "	1.78 mm	0.07 in	2.54 mm	0.1 in	Cantilever	1	Copper Alloy	Non Specified - Single Edge	125 °C	-40 °C	1	Polyphenylene Sulfide (PPS)	3.25 mm	0.128 in
EDAC Inc. 895-019-541-104	Single	Gold	19	Female	Black	3.96 mm	Flush Mount Top Opening Unthreaded	0.156 in	Through Hole	19	Wire Wrap	10 Áin	0.25 Ám	1.37 mm	0.054 "	1.78 mm	0.07 in	2.54 mm	0.1 in	Cantilever	1	Copper Alloy	Non Specified - Single Edge	125 °C	-40 °C	1	Polyphenylene Sulfide (PPS)
EDAC Inc. 895-019-525-604	Single	Gold	19	Female	Black	3.96 mm	Top Mount Opening Unthreaded	0.156 in	Through Hole	19	Solder	10 Áin	0.25 Ám	1.37 mm	0.054 "	1.78 mm	0.07 in	2.54 mm	0.1 in	Cantilever	1	Copper Alloy	Non Specified - Single Edge	125 °C	-40 °C	1	Polyphenylene Sulfide (PPS)

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	25	$ 53.40
Newark	Each	1	$ 64.09
		100	$ 54.95
		250	$ 53.45
		500	$ 38.86
		1000	$ 23.25

Description

General part information

895-019 Series

19 Position Female Connector Non Specified - Single Edge Gold 0.100" (2.54mm) Black
