SI8273ISO-KIT

Active

Skyworks Solutions Inc.

SI8273/71 EVAL KIT

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsSI827x Datasheet Datasheet

SI8273ISO-KIT

Active

Skyworks Solutions Inc.

SI8273/71 EVAL KIT

Deep-Dive with AI

DocumentsSI827x Datasheet Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	SI8273ISO-KIT

Contents	Board(s)
Function	Digital Isolator
Supplied Contents	Board(s)
Type	Interface
Utilized IC / Part	Si8273

SI8273 Series

Part	Utilized IC / Part	Contents	Supplied Contents	Function	Type	Current - Peak Output	Mounting Type	Voltage - Isolation	Package / Case	Common Mode Transient Immunity (Min) [Min]	Operating Temperature [Max]	Operating Temperature [Min]	Current - Output High, Low	Number of Channels	Pulse Width Distortion (Max) [Max]	Propagation Delay tpLH / tpHL (Max) [custom]	Propagation Delay tpLH / tpHL (Max) [custom]	Voltage - Output Supply [Min]	Voltage - Output Supply [Max]	Rise / Fall Time (Typ) [custom]	Rise / Fall Time (Typ) [custom]	Approval Agency	Technology	Supplier Device Package	Qualification	Grade	Package / Case [x]	Package / Case [y]	Number of Channels [custom]	Propagation Delay tpLH / tpHL (Max)
Skyworks Solutions Inc. SI8273ISO-KIT	Si8273	Board(s)	Board(s)	Digital Isolator	Interface
Skyworks Solutions Inc. SI8273GA-IM1						4 A	Surface Mount	1000 VAC	14-VDFN	200 V/ns	125 °C	-40 °C	1.8 A 4 A	1	8 ns	75 ns	75 ns	4.2 V	30 V	13.3 ns	10.5 ns	CQC CSA UL VDE	RF Coupling	14-DFN (5x5)
Skyworks Solutions Inc. SI8273DBD-AS1						4 A	Surface Mount	2500 Vrms	16-SOIC	200 V/ns	125 °C	-40 °C	1.8 A 4 A		8 ns	75 ns	75 ns	4.2 V	30 V	13.3 ns	10.5 ns	CQC CSA UL VDE	RF Coupling	16-SOIC	AEC-Q100	Automotive	0.154 in	3.9 mm	2
Skyworks Solutions Inc. SI8273ABD-IM						4 A	Surface Mount	2500 Vrms	14-VFLGA	200 V/ns	125 °C	-40 °C	1.8 A 4 A		8 ns	75 ns	75 ns	4.6 V	30 V	13.3 ns	10.5 ns	CQC CSA UR VDE	RF Coupling	14-LGA (5x5)					2
Skyworks Solutions Inc. SI8273AB-IM						4 A	Surface Mount	2500 Vrms	14-VFLGA	150 kV/µs	125 °C	-40 °C	1.8 A 4 A		8 ns			4.6 V	30 V	13.3 ns	10.5 ns	CQC CSA UR VDE	RF Coupling	14-LGA (5x5)					2	60 ns
Skyworks Solutions Inc. SI8273ABD-IS1						4 A	Surface Mount	2500 Vrms	16-SOIC	200 V/ns	125 °C	-40 °C	1.8 A 4 A		8 ns	75 ns	75 ns	4.6 V	30 V	13.3 ns	10.5 ns	CQC CSA UR VDE	RF Coupling	16-SOIC			0.154 in	3.9 mm	2
Skyworks Solutions Inc. SI8273BB-IS1						4 A	Surface Mount	2500 Vrms	16-SOIC	200 V/ns	125 °C	-40 °C	1.8 A 4 A		8 ns	75 ns	75 ns	9.6 V	30 V	13.3 ns	10.5 ns	CQC CSA UR VDE	RF Coupling	16-SOIC			0.154 in	3.9 mm	2
Skyworks Solutions Inc. SI8273BBD-IS1						4 A	Surface Mount	2500 Vrms	16-SOIC	150 kV/µs	125 °C	-40 °C	1.8 A 4 A		8 ns			9.6 V	30 V	13.3 ns	10.5 ns	CQC CSA UR VDE	RF Coupling	16-SOIC			0.154 in	3.9 mm	2	60 ns
Skyworks Solutions Inc. SI8273GBD-IS1						4 A	Surface Mount	2500 Vrms	16-SOIC	200 V/ns	125 °C	-40 °C	1.8 A 4 A		8 ns	75 ns	75 ns	4.2 V	30 V	13.3 ns	10.5 ns	CQC CSA UR VDE	RF Coupling	16-SOIC			0.154 in	3.9 mm	2
Skyworks Solutions Inc. SI8273BB-AS1						4 A	Surface Mount	2500 Vrms	16-SOIC	200 V/ns	125 °C	-40 °C	1.8 A 4 A		8 ns	75 ns	75 ns	4.2 V	30 V	13.3 ns	10.5 ns	CQC CSA UL VDE	RF Coupling	16-SOIC	AEC-Q100	Automotive	0.154 in	3.9 mm	2

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 25.27

Description

General part information

SI8273 Series

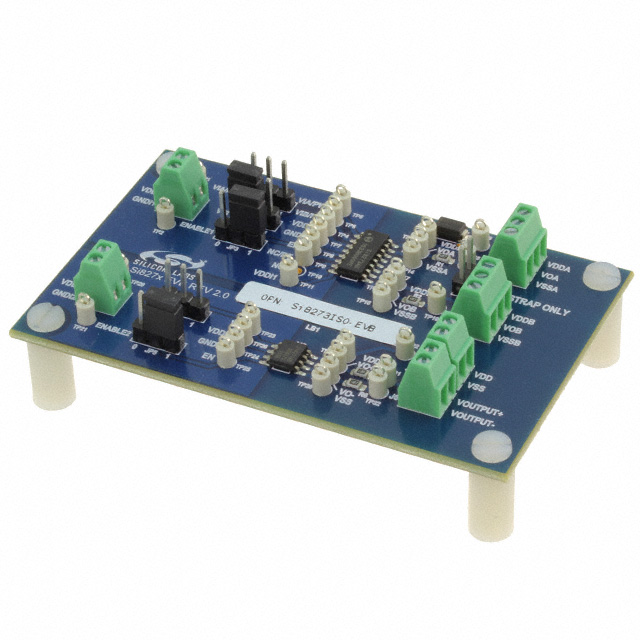

Si8273 - Digital Isolator Interface Evaluation Board

Documents

Technical documentation and resources

SI827x Datasheet

Datasheet
