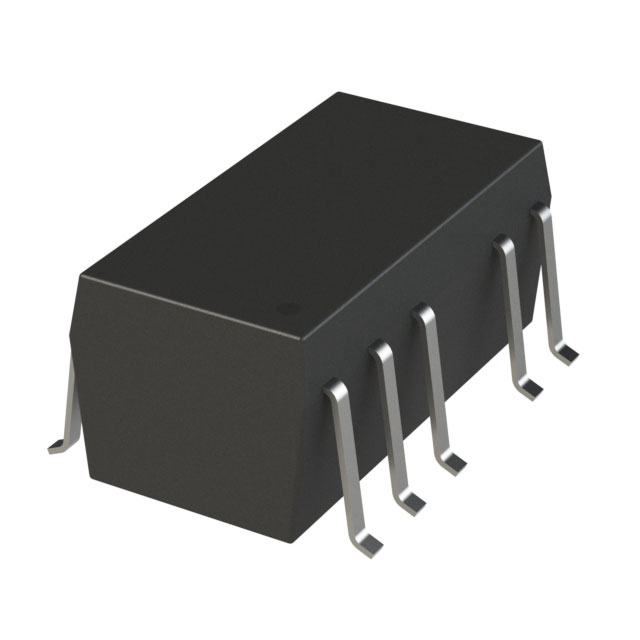

TSV 2412S
Traco Power
DC DC CONVERTER 12V 960MW
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | TSV 2412S |
|---|---|
| Applications | ITE (Commercial) |
| Current - Output (Max) [Max] | 80 mA |
| Efficiency | 78 % |
| Features | SCP |
| Mounting Type | Surface Mount |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | 22-SMD Module, 10 Leads |
| Size / Dimension [x] | 0.6 in |
| Size / Dimension [x] | 15.2 mm |
| Size / Dimension [y] | 8 mm |
| Size / Dimension [y] | 0.31 " |
| Size / Dimension [z] | 0.27 " |
| Size / Dimension [z] | 7 mm |
| Type | Isolated Module |
| Voltage - Input (Max) [Max] | 26.4 V |
| Voltage - Input (Min) [Min] | 21.6 V |
| Voltage - Isolation | 3000 V |
| Voltage - Output 1 | 12 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tube | 1 | $ 15.50 | |
| 10 | $ 13.43 | |||
| 25 | $ 12.99 | |||
| 50 | $ 12.66 | |||
| 100 | $ 12.34 | |||
| 250 | $ 11.94 | |||
| 500 | $ 11.64 | |||
Description
General part information
TSV 2412 Series
Isolated Module DC DC Converter 1 Output 12V 80mA 21.6V - 26.4V Input
