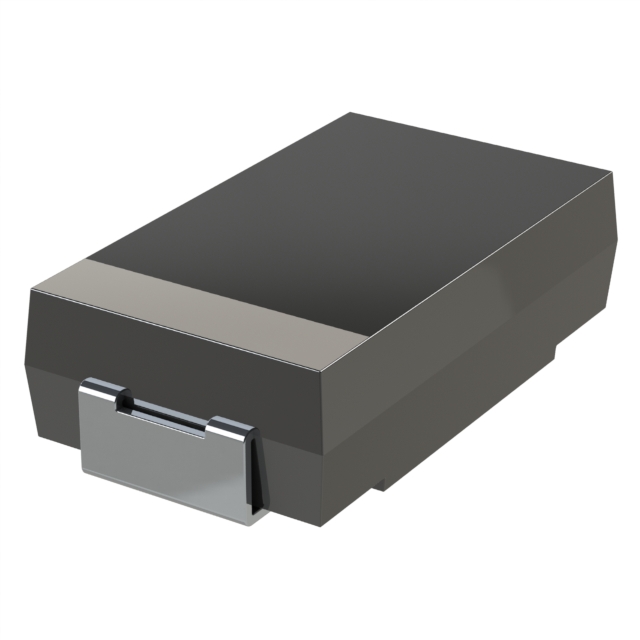

TCJY336M035R0100E

Active

Kyocera AVX

CAP TANT POLY 33UF 35V 2917

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsPolymer, Tantalum, Niobium Oxide Catalog Datasheet +1

TCJY336M035R0100E

Active

Kyocera AVX

CAP TANT POLY 33UF 35V 2917

Deep-Dive with AI

DocumentsPolymer, Tantalum, Niobium Oxide Catalog Datasheet +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	TCJY336M035R0100E

Capacitance	33 ÁF
ESR (Equivalent Series Resistance)	100 mOhm
Features	General Purpose
Height - Seated (Max) [Max] [z]	2 mm
Height - Seated (Max) [Max] [z]	0.079 in
Lifetime @ Temp.	2000 Hrs
Manufacturer Size Code	Y
Mounting Type	Surface Mount
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-55 °C
Package / Case	7343 Metric
Package / Case	2917
Size / Dimension [x]	0.287 "
Size / Dimension [x]	7.3 mm
Size / Dimension [y]	4.3 mm
Size / Dimension [y]	0.169 "
Tolerance	20 %
Type	Molded
Voltage - Rated	35 V

TCJY Series

...

Part	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Mounting Type	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Type	Manufacturer Size Code	ESR (Equivalent Series Resistance)	Operating Temperature [Max]	Operating Temperature [Min]	Lifetime @ Temp.	Features	Tolerance	Voltage - Rated	Capacitance	Package / Case	Package / Case
Kyocera AVX TCJY337M002R0040	2 mm	0.079 in	Surface Mount	4.3 mm	0.287 "	7.3 mm	0.169 "	Molded	Y	40 mOhm	105 ░C	-55 °C	2000 Hrs	General Purpose	20 %	2.5 V	330 µF	7343 Metric	2917
Kyocera AVX TCJY337M004R0050E	2 mm	0.079 in	Surface Mount	4.3 mm	0.287 "	7.3 mm	0.169 "	Molded	Y	50 mOhm	105 ░C	-55 °C	2000 Hrs	General Purpose	20 %	4 V	330 µF	7343 Metric	2917
Kyocera AVX TCJY157M010R0055E	2 mm	0.079 in	Surface Mount	4.3 mm	0.287 "	7.3 mm	0.169 "	Molded	Y	55 mOhm	105 ░C	-55 °C	2000 Hrs	General Purpose	20 %	10 V	150 µF	7343 Metric	2917
Kyocera AVX TCJY227M010R0025	2 mm	0.079 in	Surface Mount	4.3 mm	0.287 "	7.3 mm	0.169 "	Molded	Y	25 mOhm	105 ░C	-55 °C	2000 Hrs	General Purpose	20 %	10 V	220 µF	7343 Metric	2917
Kyocera AVX TCJY336M035R0100E	2 mm	0.079 in	Surface Mount	4.3 mm	0.287 "	7.3 mm	0.169 "	Molded	Y	100 mOhm	105 ░C	-55 °C	2000 Hrs	General Purpose	20 %	35 V	33 ÁF	7343 Metric	2917
Kyocera AVX TCJY106M035S0070	2 mm	0.079 in	Surface Mount	4.3 mm	0.287 "	7.3 mm	0.169 "	Molded	Y	70 mOhm	105 ░C	-55 °C	2000 Hrs	General Purpose	20 %	35 V	10 µF	7343 Metric	2917
Kyocera AVX TCJY227M006R0040	2 mm	0.079 in	Surface Mount	4.3 mm	0.287 "	7.3 mm	0.169 "	Molded	Y	40 mOhm	105 ░C	-55 °C	2000 Hrs	General Purpose	20 %	6.3 V	220 µF	7343 Metric	2917
Kyocera AVX TCJY107M016R0050E	2 mm	0.079 in	Surface Mount	4.3 mm	0.287 "	7.3 mm	0.169 "	Molded	Y	50 mOhm	105 ░C	-55 °C	2000 Hrs	General Purpose	20 %	16 V	100 µF	7343 Metric	2917
Kyocera AVX TCJY157M004R0045	2 mm	0.079 in	Surface Mount	4.3 mm	0.287 "	7.3 mm	0.169 "	Molded	Y	45 mOhm	105 ░C	-55 °C	2000 Hrs	General Purpose	20 %	4 V	150 µF	7343 Metric	2917
Kyocera AVX TCJY157M016R0050	2 mm	0.079 in	Surface Mount	4.3 mm	0.287 "	7.3 mm	0.169 "	Molded	Y	50 mOhm	105 ░C	-55 °C	2000 Hrs	General Purpose	20 %	16 V	150 µF	7343 Metric	2917

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 2.44
		10	$ 1.58
		50	$ 1.23
		100	$ 1.12
		500	$ 0.94
	Digi-Reel®	1	$ 2.44
		10	$ 1.58
		50	$ 1.23
		100	$ 1.12
		500	$ 0.94
	Tape & Reel (TR)	1000	$ 0.82
		2000	$ 0.79
		5000	$ 0.76
		10000	$ 0.75

Description

General part information

TCJY Series

33 µF Molded Tantalum Polymer Capacitor 35 V 2917 (7343 Metric) 100mOhm @ 100kHz
