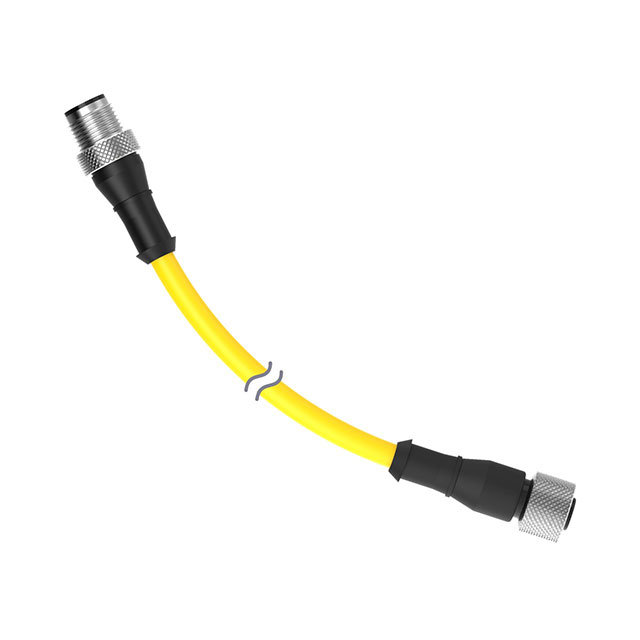

DEE8CSSB-51D

Active

BANNER ENGINEERING

CORDSET A-CODE M12 TO A-CODE M12 DOUBLE ENDED

Deep-Dive with AI

Search across all available documentation for this part.

DEE8CSSB-51D

Active

BANNER ENGINEERING

CORDSET A-CODE M12 TO A-CODE M12 DOUBLE ENDED

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	DEE8CSSB-51D

1st Connector Gender	Male Pins
1st Connector Mounting Type	Free Hanging (In-Line)
1st Connector Number of Positions	8 positions
1st Connector Number of Positions Loaded	5
1st Connector Orientation [custom]	Keyed
1st Connector Shell Size - Insert	M12
1st Connector Type	Receptacle
2nd Connector Gender	Female Sockets
2nd Connector Mounting Type	Free Hanging (In-Line)
2nd Connector Number of Positions	8
2nd Connector Number of Positions Loaded	All
2nd Connector Shell Size - Insert	M12
2nd Connector Type	Plug
Assembly Configuration	Standard
Cable Material	Polyvinyl Chloride (PVC)
Cable Type	Round
Color	Yellow
Ingress Protection	IP68 - Dust Tight, Waterproof
Length	1 ft
Length	304.8 mm
Shielding	Unshielded
Usage	Industrial Environments

DEE8 Series

Part	1st Connector Orientation [custom]	Shielding	1st Connector Gender	2nd Connector Gender	Assembly Configuration	Usage	1st Connector Number of Positions	1st Connector Shell Size - Insert	1st Connector Type	1st Connector Mounting Type	Cable Type	2nd Connector Shell Size - Insert	Cable Material	2nd Connector Mounting Type	Ingress Protection	2nd Connector Number of Positions	2nd Connector Type	1st Connector Number of Positions Loaded	Color	Length	Length	2nd Connector Number of Positions Loaded
BANNER ENGINEERING DEE8-425D	Keyed	Unshielded	Male Pins	Female Sockets	Standard	Industrial Environments	8 positions	M12	Receptacle	Free Hanging (In-Line)	Round	M12	Polyvinyl Chloride (PVC)	Free Hanging (In-Line)	IP68 - Dust Tight Waterproof	8	Plug	4	Yellow	25 ft	7.62 m	All
BANNER ENGINEERING DEE8-41D	Keyed	Unshielded	Male Pins	Female Sockets	Standard	Industrial Environments	8 positions	M12	Receptacle	Free Hanging (In-Line)	Round	M12	Polyvinyl Chloride (PVC)	Free Hanging (In-Line)	IP68 - Dust Tight Waterproof	8	Plug	4	Yellow	1 ft	304.8 mm	All
BANNER ENGINEERING DEE8-51D	Keyed	Unshielded	Male Pins	Female Sockets	Standard	Industrial Environments	8 positions	M12	Receptacle	Free Hanging (In-Line)	Round	M12	Polyvinyl Chloride (PVC)	Free Hanging (In-Line)	IP68 - Dust Tight Waterproof	8	Plug	5	Yellow	1 ft	304.8 mm	All
BANNER ENGINEERING DEE8CSS1B-51D	Keyed	Unshielded	Male Pins	Female Sockets	Standard	Industrial Environments	8 positions	M12	Receptacle	Free Hanging (In-Line)	Round	M12	Polyvinyl Chloride (PVC)	Free Hanging (In-Line)	IP68 - Dust Tight Waterproof	8	Plug	5	Yellow	1 ft	304.8 mm	All
BANNER ENGINEERING DEE8-525D	Keyed	Unshielded	Male Pins	Female Sockets	Standard	Industrial Environments	8 positions	M12	Receptacle	Free Hanging (In-Line)	Round	M12	Polyvinyl Chloride (PVC)	Free Hanging (In-Line)	IP68 - Dust Tight Waterproof	8	Plug	5	Yellow	25 ft	7.62 m	All
BANNER ENGINEERING DEE8CSSB-51D	Keyed	Unshielded	Male Pins	Female Sockets	Standard	Industrial Environments	8 positions	M12	Receptacle	Free Hanging (In-Line)	Round	M12	Polyvinyl Chloride (PVC)	Free Hanging (In-Line)	IP68 - Dust Tight Waterproof	8	Plug	5	Yellow	1 ft	304.8 mm	All

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 46.00
Newark	Each	1	$ 46.00

Description

General part information

DEE8 Series

Circular Cable Assembly Unshielded 1.00' (304.80mm)

Documents

Technical documentation and resources

No documents available
