QADA-90-24-1442
ActiveQualtek

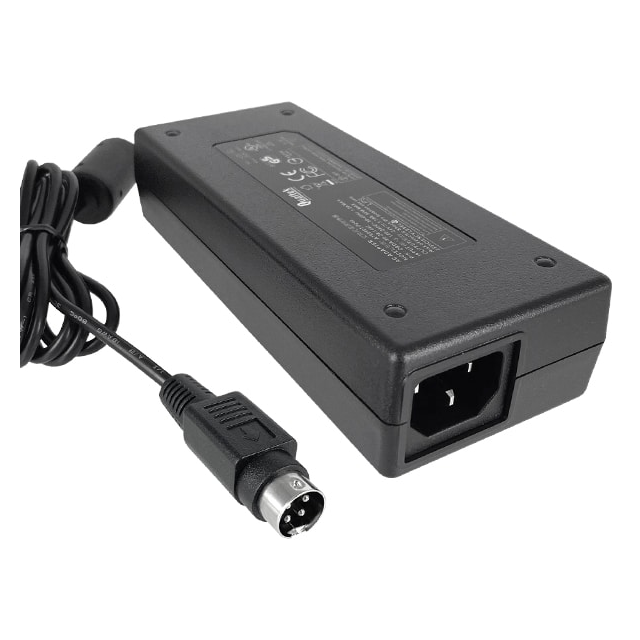

AC/DC DESKTOP ADAPTER 24V 90W
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
QADA-90-24-1442
ActiveQualtek
AC/DC DESKTOP ADAPTER 24V 90W
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | QADA-90-24-1442 |
|---|---|
| Approval Agency | cULus, FCC, CE, CB, BSMI, GS, PSE |
| Cord Length | 1.5 m |
| Cord Length | 59 in |
| Current - Output (Max) [Max] | 3.75 A |
| Efficiency | Level VI |
| Form | Desktop (Class I) |
| Input Connector | IEC 320-C14 |
| Input Type | Cord |
| No Load Power Consumption | 210 mW |
| Operating Temperature [Max] | 40 °C |
| Operating Temperature [Min] | 0 °C |
| Output Connector | 4 Pin |
| Output Connector | Power DIN |
| Power (Watts) | 90 W |
| Region Utilized | International |
| Size / Dimension [x] | 5.94 in |
| Size / Dimension [x] | 151 mm |
| Size / Dimension [y] | 64 mm |
| Size / Dimension [y] | 2.52 " |
| Size / Dimension [z] | 36 mm |
| Size / Dimension [z] | 1.42 in |
| Voltage - Input [Max] | 240 VAC |
| Voltage - Input [Min] | 100 VAC |
| Voltage - Output | 24 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 40.21 | |
Description
General part information
QADA-90 Series
24V 90 W AC/DC External Desktop (Class I) Adapter Cord (Sold Separately) Input
