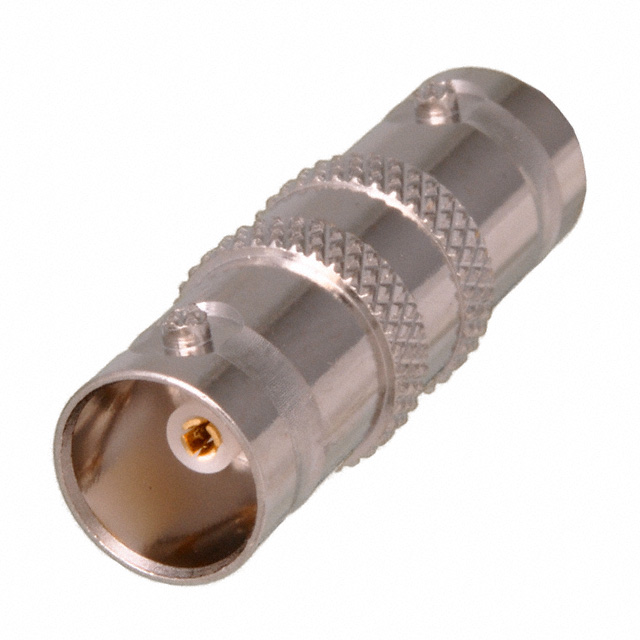

VBA90-1-75
ActiveCinch Connectivity Solutions Trompeter
COAX ADAPT BNC TO BNC
Deep-Dive with AI
Search across all available documentation for this part.
VBA90-1-75
ActiveCinch Connectivity Solutions Trompeter
COAX ADAPT BNC TO BNC
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | VBA90-1-75 |
|---|---|
| Adapter Series | BNC to BNC |
| Adapter Type | Jack to Jack |
| Body Finish | Nickel |
| Body Material | Brass |
| Center Contact Material | Brass |
| Center Contact Plating | Gold |
| Center Gender | Female to Female |
| Conversion Type | Same Series |
| Convert From (Adapter End) | BNC Jack, Female Socket |
| Convert To (Adapter End) | Female Socket, BNC Jack |
| Dielectric Material | Polyoxymethylene (POM) |
| Fastening Type | Bayonet Lock |
| Frequency - Max [Max] | 1 GHz |
| Impedance | 75 Ohms |
| Mating Cycles | 500 |
| Mounting Type | Free Hanging (In-Line) |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -55 °C |
| Style | Straight |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 7.47 | |
| 10 | $ 6.35 | |||
| 25 | $ 5.95 | |||
| 50 | $ 5.67 | |||
| 100 | $ 5.40 | |||
| 300 | $ 4.99 | |||
| 500 | $ 4.82 | |||
| 1000 | $ 4.59 | |||
Description
General part information
VBA90 Series
Adapter Coaxial Connector BNC Jack, Female Socket To BNC Jack, Female Socket 75 Ohms
