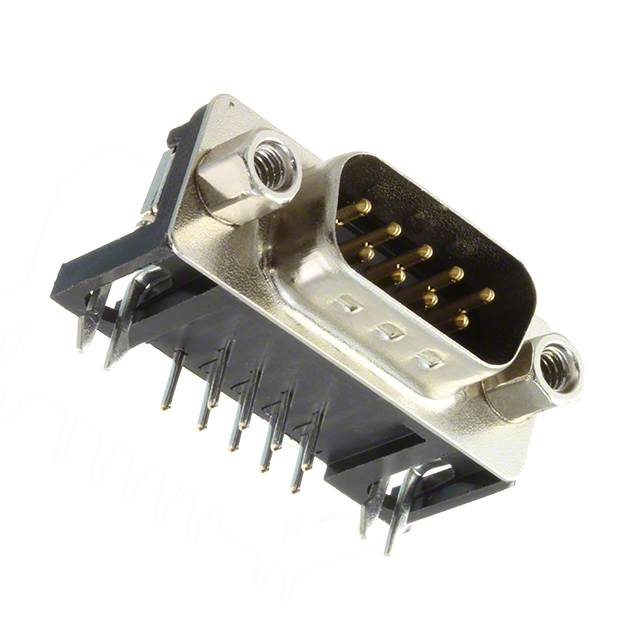

DLS1XP5AK40X

Active

Amphenol CONEC

CONN D-SUB PLUG 9POS R/A SLDR

Search across all available documentation for this part.

Active

Amphenol CONEC

CONN D-SUB PLUG 9POS R/A SLDR

Technical Specifications

Parameters and characteristics for this part

Specification	DLS1XP5AK40X

Backset Spacing	8.09 mm
Backset Spacing	0.318 "
Color	Black
Connector Style	D-Sub
Connector Type	Plug, Male Pins
Contact Finish	Gold
Contact Finish Thickness	8 çin
Contact Finish Thickness	0.203 çm
Contact Form	Stamped
Contact Material	Copper Alloy
Contact Type	Signal
Features	Grounding Indents, Board Lock
Flange Feature	Female Screwlock (4-40), Mating Side
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle, Board Edge
Number of Positions	9
Number of Rows	2
Shell Size, Connector Layout [custom]	DE, E
Shell Size, Connector Layout [custom]	1
Termination	Solder

Part	Flange Feature	Connector Style	Features	Contact Finish	Contact Finish Thickness	Contact Finish Thickness	Contact Type	Shell Size, Connector Layout [custom]	Shell Size, Connector Layout [custom]	Backset Spacing	Backset Spacing	Connector Type	Number of Positions	Mounting Type	Contact Form	Contact Material	Color	Material Flammability Rating	Number of Rows	Termination	Dielectric Material	Operating Temperature [Min]	Operating Temperature [Max]
Amphenol CONEC DLS1XP5AK40X	Female Screwlock (4-40) Mating Side	D-Sub	Board Lock Grounding Indents	Gold	8 çin	0.203 çm	Signal	DE E	1	8.09 mm	0.318 "	Male Pins Plug	9	Board Edge Right Angle Through Hole	Stamped	Copper Alloy	Black	UL94 V-0	2	Solder
Amphenol CONEC DLS1XP5AK38X	Housing/Shell (4-40)	D-Sub	Board Lock Grounding Indents	Gold			Signal	DE E	1			Male Pins Plug	9	Through Hole Right Angle					2	Solder	Polyester Glass Filled	-55 °C	125 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

9 Position D-Sub Plug, Male Pins Connector
