8MM-11-0003-02-131

Active

PRECI-DIP SA

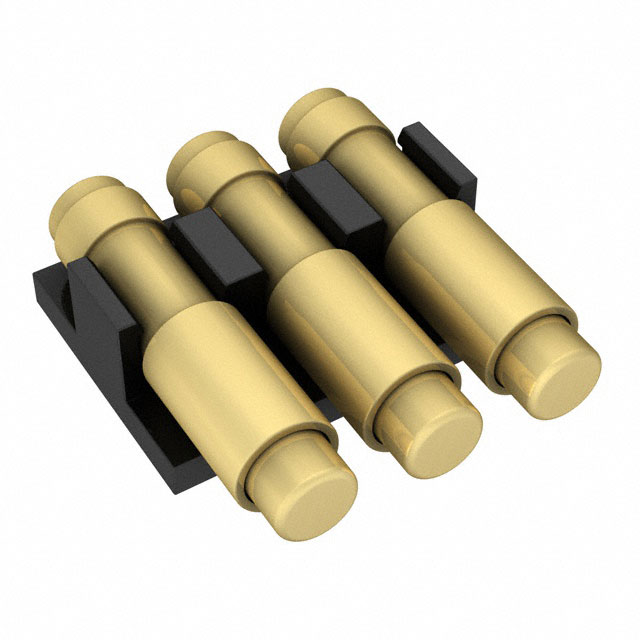

CONN SPRING TARGET 3POS R/A SMD

Deep-Dive with AI

Search across all available documentation for this part.

8MM-11-0003-02-131

Active

PRECI-DIP SA

CONN SPRING TARGET 3POS R/A SMD

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	8MM-11-0003-02-131

Connector Type	Mating Target
Contact Finish	Gold
Contact Finish Thickness	10 Áin
Contact Finish Thickness	0.25 Ám
Material	Brass
Mounting Type	Surface Mount, Right Angle
Number of Contacts	3
Number of Rows	1
Pitch [x]	2.54 mm
Pitch [x]	0.1 in

8MM-11 Series

Part	Contact Finish	Pitch [x]	Pitch [x]	Mounting Type	Contact Finish Thickness	Contact Finish Thickness	Number of Rows	Material	Number of Contacts	Connector Type	Number of Contacts [custom]	Features	Insulation Material	Current Rating (Amps)	Voltage Rating	Pitch - Mating	Pitch - Mating	Material Flammability Rating	Fastening Type	Contact Shape	Termination	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Operating Temperature [Min]	Operating Temperature [Max]	Contact Type	Contact Finish - Mating	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Insulation Height	Insulation Height	Contact Finish - Post	Insulation Color	Contact Material	Number of Positions Loaded	Contact Length - Mating	Contact Length - Mating	Shrouding	Number of Positions
PRECI-DIP SA 8MM-11-0003-02-131	Gold	2.54 mm	0.1 in	Surface Mount Right Angle	10 Áin	0.25 Ám	1	Brass	3	Mating Target
PRECI-DIP SA 8MM-11-0009-02-131191	Gold	2.54 mm	0.1 in	Surface Mount Right Angle	10 Áin	0.25 Ám	1	Brass	9	Mating Target
PRECI-DIP SA 8MM-11-0004-02-131	Gold	2.54 mm	0.1 in	Surface Mount Right Angle	10 Áin	0.25 Ám	1	Brass		Mating Target	4
PRECI-DIP SA 8MM-11-0002-02-131191	Gold	2.54 mm	0.1 in	Surface Mount Right Angle	10 Áin	0.25 Ám	1	Brass		Mating Target
PRECI-DIP SA 8MM-11-0003-02-279191				Surface Mount Right Angle			1			Header		Pick and Place	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	3 A	150 VDC	0.1 in	2.54 mm	UL94 V-0	Push-Pull	Circular	Solder	10 çin	0.25 çm	-55 °C	125 °C	Male Pin	Gold	10 çin	0.25 çm	0.096 "	2.44 mm	Gold	Black	Brass	All	4 mm	0.157 in	Unshrouded
PRECI-DIP SA 8MM-11-0010-02-131	Gold	2.54 mm	0.1 in	Surface Mount Right Angle	10 Áin	0.25 Ám	1	Brass	10	Mating Target
PRECI-DIP SA 8MM-11-0002-02-279191				Surface Mount Right Angle			1			Header		Pick and Place	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	3 A	150 VDC	0.1 in	2.54 mm	UL94 V-0	Push-Pull	Circular	Solder	10 çin	0.25 çm	-55 °C	125 °C	Male Pin	Gold	10 çin	0.25 çm	0.096 "	2.44 mm	Gold	Black	Brass	All	4 mm	0.157 in	Unshrouded	2
PRECI-DIP SA 8MM-11-0004-02-279191				Surface Mount Right Angle			1			Header		Pick and Place	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	3 A	150 VDC	0.1 in	2.54 mm	UL94 V-0	Push-Pull	Circular	Solder	10 çin	0.25 çm	-55 °C	125 °C	Male Pin	Gold	10 çin	0.25 çm	0.096 "	2.44 mm	Gold	Black	Brass	All	4 mm	0.157 in	Unshrouded	4

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	600	$ 1.26

Description

General part information

8MM-11 Series

3 Position Spring Mating Target Connector Surface Mount, Right Angle

Documents

Technical documentation and resources

No documents available
