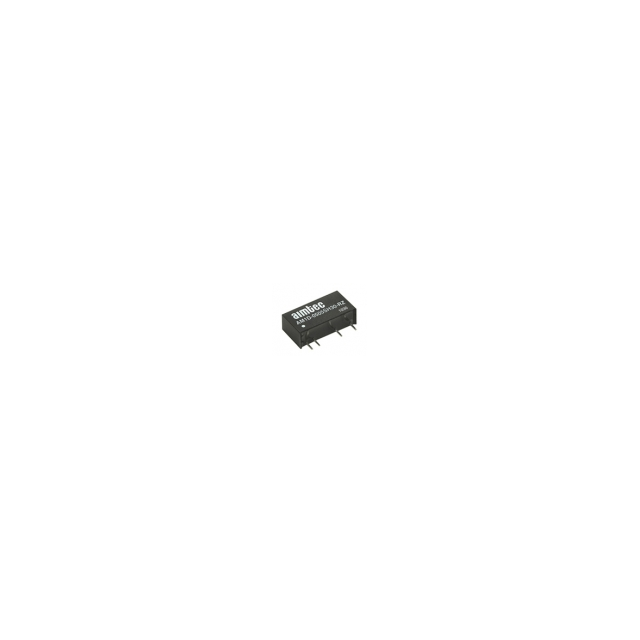

AM1D-0515SH30-RZ

Active

aimtec

MODULE DC-DC 5VIN 1-OUT 15V 0.066A 1W 4-PIN SIP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

AM1D-0515SH30-RZ

Active

aimtec

MODULE DC-DC 5VIN 1-OUT 15V 0.066A 1W 4-PIN SIP

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	AM1D-0515SH30-RZ

Applications	ITE (Commercial)
Approval Agency	CE
Current - Output (Max) [Max]	66 mA
Efficiency	87 %
Mounting Type	Through Hole
Number of Outputs	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Power (Watts)	1 mW
Size / Dimension [x]	19.5 mm
Size / Dimension [x]	0.77 "
Size / Dimension [y]	6 mm
Size / Dimension [y]	0.24 in
Size / Dimension [z]	0.39 in
Size / Dimension [z]	10 mm
Type	Isolated Module
Voltage - Input (Max) [Max]	5.5 V
Voltage - Input (Min) [Min]	4.5 V
Voltage - Isolation	3000 V
Voltage - Output 1	15 V

AM1D Series

...

Part	Voltage - Isolation	Applications	Type	Number of Outputs	Mounting Type	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Voltage - Input (Min) [Min]	Voltage - Input (Max) [Max]	Voltage - Output 1	Operating Temperature [Max]	Operating Temperature [Min]	Approval Agency	Current - Output (Max) [Max]	Efficiency	Standard Number	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Power (Watts)	Voltage - Output 1 [Max]	Voltage - Output 1 [Min]	Voltage - Output 2	Current - Output (Max) [Max]	Current - Output (Max)
aimtec AM1D-0303SZ	1000 V	ITE (Commercial)	Isolated Module	1	Through Hole	0.76 "	0.39 in	10 mm	19.5 mm	6 mm	0.24 "	2.97 V	3.63 V	3.3 V	85 °C	-40 °C	CE cULus cURus	303 mA	76 %
aimtec AM1D-1207SH60Z	6000 V	ITE (Commercial)	Isolated Module	1	Through Hole	0.76 "	0.39 in	10 mm	19.5 mm	6 mm	0.24 "	10.8 V	13.2 V	7.2 V	85 °C	-40 °C	CE cURus EN IEC UL	139 mA	75 %	62368-1
aimtec AM1D-2407SZ	1000 V	ITE (Commercial)	Isolated Module	1	Through Hole	0.76 "	0.39 in	10 mm	19.5 mm	6 mm	0.24 "	21.6 V	26.4 V	7.2 V	85 °C	-40 °C	CE cURus EN IEC UL	139 mA	73 %	62368-1
aimtec AM1D-0515SH30-RZ	3000 V	ITE (Commercial)	Isolated Module	1	Through Hole			0.39 in	0.77 "	0.24 in		4.5 V	5.5 V	15 V	85 °C	-40 °C	CE	66 mA	87 %		6 mm	10 mm	19.5 mm	1 mW
aimtec AM1D-0312DH30Z	3000 V	ITE (Commercial)	Isolated Module	2	Through Hole			0.39 in	0.77 "	0.24 in		2.97 V	3.63 V		85 °C	-40 °C	CE cULus cURus	42 mA	77 %		6 mm	10 mm	19.5 mm		12 V	-12 V	-12 V	42 mA
aimtec AM1D-2418DH60Z	6000 V	ITE (Commercial)	Isolated Module	2	Through Hole	0.76 "	0.39 in	10 mm	19.5 mm	6 mm	0.24 "	21.6 V	26.4 V		85 °C	-40 °C	CE cULus cURus		81 %						18 V	-18 V	-18 V		28 mA
aimtec AM1D-0307DH60Z	6000 V	ITE (Commercial)	Isolated Module	2	Through Hole	0.76 "	0.39 in	10 mm	19.5 mm	6 mm	0.24 "	2.97 V	3.63 V		85 °C	-40 °C	CE cULus cURus		72 %						7.2 V	-7.2 V	-7.2 V		69 mA
aimtec AM1D-0509SH40Z	4000 V	ITE (Commercial)	Isolated Module	1	Through Hole	0.76 "	0.39 in	10 mm	19.5 mm	6 mm	0.24 "	4.5 V	5.5 V	9 V	85 °C	-40 °C	CE cULus cURus
aimtec AM1D-1518DZ	1000 V	ITE (Commercial)	Isolated Module	2	Through Hole	0.76 "	0.39 in	10 mm	19.5 mm	6 mm	0.24 "	13.5 V	16.5 V		85 °C	-40 °C	CE cULus cURus		75 %						18 V	-18 V	-18 V		28 mA
aimtec AM1D-0307DH40Z	4000 V	ITE (Commercial)	Isolated Module	2	Through Hole	0.76 "	0.39 in	10 mm	19.5 mm	6 mm	0.24 "	2.97 V	3.63 V		85 °C	-40 °C	CE cULus cURus		72 %						7.2 V	-7.2 V	-7.2 V		69 mA

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	1	$ 4.96
		5	$ 4.86
		10	$ 4.76
		20	$ 4.66
		40	$ 4.57
		60	$ 4.48
		80	$ 4.39
		100	$ 4.30
		120	$ 4.22

Description

General part information

AM1D Series

Isolated Module DC DC Converter 1 Output 15V 66mA 4.5V - 5.5V Input
