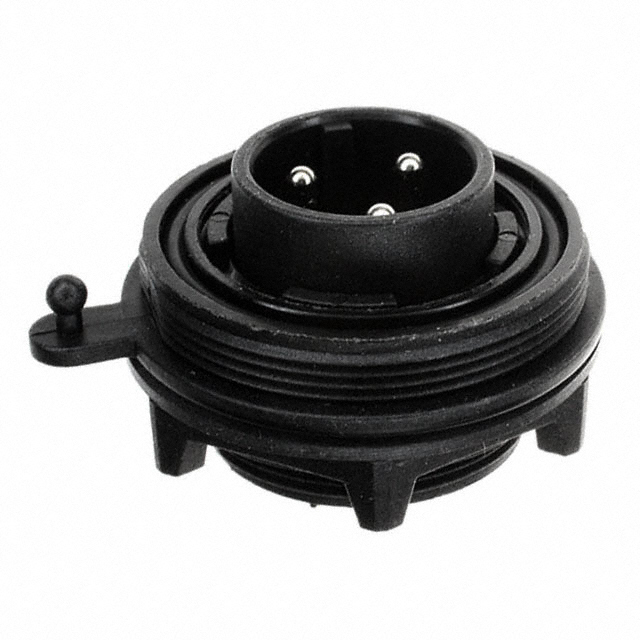

PX0730/P

Active

BULGIN LIMITED

CONN RCPT MALE 3POS NICKEL SCREW

Search across all available documentation for this part.

Active

BULGIN LIMITED

CONN RCPT MALE 3POS NICKEL SCREW

Technical Specifications

Parameters and characteristics for this part

Specification	PX0730/P

Color	Black
Connector Type	Receptacle, Male Pins
Contact Finish - Mating	Nickel
Contact Material	Brass
Current Rating (Amps)	12 A
Ingress Protection	IP68, IP69K
Insert Material	Nylon, Polyamide (PA)
Material Flammability Rating	UL94 HB
Number of Positions [custom]	3
Number of Positions [custom]	1
Number of Positions [custom]	2
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-20 C
Orientation	Keyed
Primary Material	Plastic
Shell Material	Nylon, Glass Filled, Polyamide (PA)
Shielding	Unshielded
Termination	Screw
Voltage Rating	277 VAC/DC

Part	Current Rating (Amps)	Operating Temperature [Min]	Operating Temperature [Max]	Shell Material	Voltage Rating	Primary Material	Color	Number of Positions [custom]	Number of Positions [custom]	Number of Positions [custom]	Ingress Protection	Shielding	Contact Material	Material Flammability Rating	Termination	Orientation	Connector Type	Insert Material	Contact Finish - Mating
BULGIN LIMITED PX0730/P	12 A	-20 C	70 °C	Glass Filled Nylon Polyamide (PA)	277 VAC/DC	Plastic	Black	3	1	2	IP68 IP69K	Unshielded	Brass	UL94 HB	Screw	Keyed	Male Pins Receptacle	Nylon Polyamide (PA)	Nickel

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

3 (2 Power + PE) Position Circular Connector Receptacle, Male Pins Screw
