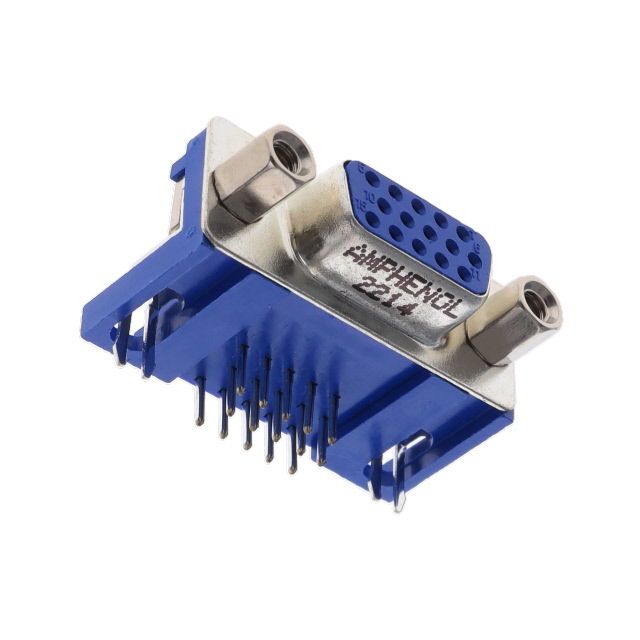

L77HDE15SD1CH4FVGA

Active

Amphenol ICC (Commercial Products)

CONN D-SUB HD RCPT 15P R/A SLDR

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet DSub Catalog

L77HDE15SD1CH4FVGA

Active

Amphenol ICC (Commercial Products)

CONN D-SUB HD RCPT 15P R/A SLDR

Deep-Dive with AI

DocumentsDatasheet DSub Catalog

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	L77HDE15SD1CH4FVGA

Backset Spacing	8.89 mm
Backset Spacing	0.35 in
Color	Blue
Connector Style	High Density, D-Sub
Connector Type	Receptacle, Female Sockets
Contact Finish	Gold
Contact Finish Thickness	Flash
Contact Form	Stamped
Contact Material	Brass
Contact Type	Signal
Current Rating (Amps)	3 A
Dielectric Material	Thermoplastic, Glass Filled
Features	Board Lock, Grounding Tabs
Flange Feature	Female Screwlock (4-40), Mating Side
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle
Number of Positions	15
Number of Rows	3
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-55 °C
Shell Size, Connector Layout [custom]	DE, E
Shell Size, Connector Layout [custom]	1
Shell Size, Connector Layout [custom]	High Density
Termination	Solder
Voltage Rating	250 VDC

L77HDE15 Series

Part	Contact Form	Material Flammability Rating	Number of Rows	Number of Positions	Color	Features	Operating Temperature [Max]	Operating Temperature [Min]	Termination	Contact Material	Mounting Type	Contact Finish Thickness	Contact Finish Thickness	Contact Type	Connector Type	Backset Spacing	Backset Spacing	Shell Size, Connector Layout [custom]	Shell Size, Connector Layout [custom]	Shell Size, Connector Layout [custom]	Voltage Rating	Connector Style	Current Rating (Amps)	Flange Feature	Contact Finish	Dielectric Material	Contact Finish Thickness
Amphenol ICC (Commercial Products) L77HDE15SD1CH4FC309	Stamped	UL94 V-0	3	15	Black	Board Lock Grounding Tabs	105 ░C	-55 °C	Solder	Brass	Through Hole Right Angle	0.76 Ám	30 Áin	Signal	Receptacle Female Sockets	8.89 mm	0.35 in	DE E	1	High Density	250 VDC	D-Sub High Density	3 A	Female Screwlock (4-40) Mating Side	Gold	Thermoplastic Glass Filled
Amphenol ICC (Commercial Products) L77HDE15SD1CH4FVGA	Stamped	UL94 V-0	3	15	Blue	Board Lock Grounding Tabs	105 ░C	-55 °C	Solder	Brass	Through Hole Right Angle			Signal	Receptacle Female Sockets	8.89 mm	0.35 in	DE E	1	High Density	250 VDC	D-Sub High Density	3 A	Female Screwlock (4-40) Mating Side	Gold	Thermoplastic Glass Filled	Flash
Amphenol ICC (Commercial Products) L77HDE15SD1CH3RC309	Stamped	UL94 V-0	3	15	Black	Board Lock Grounding Tabs	105 ░C	-55 °C	Solder	Brass	Through Hole Right Angle	0.76 Ám	30 Áin	Signal	Receptacle Female Sockets	8.89 mm	0.35 in	DE E	1	High Density	250 VDC	D-Sub High Density	3 A	Board Side (M3)	Gold	Thermoplastic Glass Filled
Amphenol ICC (Commercial Products) L77HDE15SD1CH3R	Stamped	UL94 V-0	3	15	Black	Board Lock Grounding Tabs	105 ░C	-55 °C	Solder	Brass	Through Hole Right Angle			Signal	Receptacle Female Sockets	8.89 mm	0.35 in	DE E	1	High Density	250 VDC	D-Sub High Density	3 A	Board Side (M3)	Gold	Thermoplastic Glass Filled	Flash
Amphenol ICC (Commercial Products) L77HDE15SD1CH3F	Stamped	UL94 V-0	3	15	Black	Board Lock Grounding Tabs	105 ░C	-55 °C	Solder	Brass	Through Hole Right Angle			Signal	Receptacle Female Sockets	8.89 mm	0.35 in	DE E	1	High Density	250 VDC	D-Sub High Density	3 A	Female Screwlock (M3) Mating Side	Gold	Thermoplastic Glass Filled	Flash
Amphenol ICC (Commercial Products) L77HDE15SD1CH4RC309	Stamped	UL94 V-0	3	15	Black	Board Lock Grounding Tabs	105 ░C	-55 °C	Solder	Brass	Through Hole Right Angle	0.76 Ám	30 Áin	Signal	Receptacle Female Sockets	8.89 mm	0.35 in	DE E	1	High Density	250 VDC	D-Sub High Density	3 A	4-40 Board Side	Gold	Thermoplastic Glass Filled
Amphenol ICC (Commercial Products) L77HDE15S	Stamped	UL94 V-0	3	15			155 °C	-55 °C		Phosphor Bronze	Free Hanging (In-Line)			Signal	Receptacle Female Sockets			DE E	1	High Density	250 VDC	D-Sub High Density	3 A	Housing/Shell (Unthreaded)	Gold	Thermoplastic Glass Filled	Flash
Amphenol ICC (Commercial Products) L77HDE15SD1C	Stamped	UL94 V-0	3	15			155 °C	-55 °C	Solder	Phosphor Bronze	Through Hole Right Angle			Signal	Receptacle Female Sockets	8.89 mm	0.35 in	DE E	1	High Density	250 VDC	D-Sub High Density	3 A	Housing/Shell (Unthreaded)	Gold	Thermoplastic Glass Filled	Flash

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 2.15
		10	$ 1.64
		25	$ 1.47
		40	$ 1.40
		80	$ 1.29
		230	$ 1.15
		440	$ 1.07
		945	$ 0.99
		2400	$ 0.90

Description

General part information

L77HDE15 Series

15 Position D-Sub, High Density Receptacle, Female Sockets Connector

Documents

Technical documentation and resources

Datasheet

DSub Catalog

Datasheet
