OSTOQ123251

Active

On Shore Technology Inc.

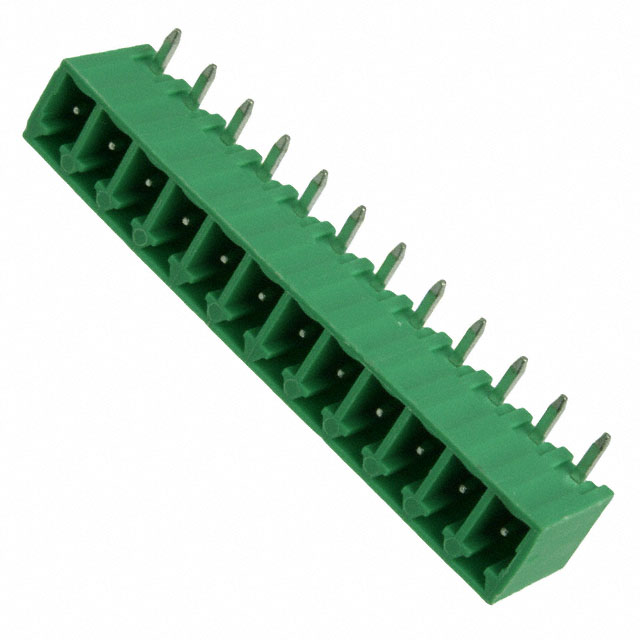

TERM BLOCK HDR 12POS 3.81MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

OSTOQ123251

Active

On Shore Technology Inc.

TERM BLOCK HDR 12POS 3.81MM

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	OSTOQ123251

Contact Material	Brass
Contact Mating Finish	Tin
Contact Tail Length	3.5 mm
Contact Tail Length	0.138 in
Header Orientation	90°, Right Angle
Housing Material	Thermoplastic
Insulation Height	3.5 mm
Insulation Height	0.138 in
Mounting Type	Solder
Number of Levels	1
Number of Positions	12
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-30 ░C
Pitch [x]	0.15 in
Pitch [x]	3.81 mm
Positions Per Level	12
Type	Header, Male Pins, Shrouded (4 Side)
Voltage - UL	300 V

OSTOQ12 Series

Part	Voltage - UL	Contact Tail Length	Contact Tail Length	Contact Mating Finish	Insulation Height	Insulation Height	Mounting Type	Housing Material	Contact Material	Header Orientation	Operating Temperature [Min]	Operating Temperature [Max]	Positions Per Level	Number of Positions	Pitch [x]	Pitch [x]	Number of Levels	Type	Insulation Height [custom]	Insulation Height [custom]	Material Flammability Rating	Features	Termination Style
On Shore Technology Inc. OSTOQ123250	300 V	3.5 mm	0.138 in	Tin	3.5 mm	0.138 in	Solder	Thermoplastic	Brass	Vertical	-30 ░C	105 ░C	12	12	0.15 in	3.81 mm	1	Header Male Pins Shrouded (4 Side)
On Shore Technology Inc. OSTOQ127051	300 V	4 mm	0.157 in	Tin			Solder	Thermoplastic	Brass	90° Right Angle	-30 ░C	105 ░C	12	12	0.197 in	5 mm	1	Header Male Pins Shrouded (2 Side)	0.157 in	4 mm
On Shore Technology Inc. OSTOQ12A050	300 V	4 mm	0.157 in	Tin			Solder	Thermoplastic	Brass	Vertical	-30 ░C	105 ░C	12	12	0.295 in	7.5 mm	1	Header Male Pins Shrouded (2 Side)	0.157 in	4 mm
On Shore Technology Inc. OSTOQ123551	300 V	3.5 mm	0.138 in	Tin	3.5 mm	0.138 in	Solder	Thermoplastic	Brass	90° Right Angle	-30 ░C	105 ░C	12	12	0.15 in	3.81 mm	1	Header Male Pins Shrouded (4 Side)			UL94 V-0	Mating Flange
On Shore Technology Inc. OSTOQ12B151	125 V	3.81 mm	0.15 in	Tin	3.81 mm	0.15 in	Through Hole	Thermoplastic	Brass	90° Right Angle	-30 ░C	105 ░C	12	12	0.098 in	2.5 mm	1	Header Male Pins Shrouded (4 Side)					Solder
On Shore Technology Inc. OSTOQ123251	300 V	3.5 mm	0.138 in	Tin	3.5 mm	0.138 in	Solder	Thermoplastic	Brass	90° Right Angle	-30 ░C	105 ░C	12	12	0.15 in	3.81 mm	1	Header Male Pins Shrouded (4 Side)
On Shore Technology Inc. OSTOQ127151	300 V	4 mm	0.157 in	Tin			Solder	Thermoplastic	Brass	90° Right Angle	-40 °C	115 °C	12	12	0.197 in	5 mm	1	Header Male Pins Shrouded (4 Side)	0.157 in	4 mm
On Shore Technology Inc. OSTOQ121250	300 V	3.5 mm	0.138 in	Tin	3.5 mm	0.138 in	Solder	Thermoplastic	Brass	Vertical	-30 ░C	105 ░C	12	12	0.138 in	3.5 mm	1	Header Male Pins Shrouded (4 Side)
On Shore Technology Inc. OSTOQ12A051	300 V	4 mm	0.157 in	Tin			Solder	Thermoplastic	Brass	90° Right Angle	-30 ░C	105 ░C	12	12	0.295 in	7.5 mm	1	Header Male Pins Shrouded (2 Side)	0.157 in	4 mm
On Shore Technology Inc. OSTOQ120550	300 V	4 mm	0.157 in	Tin			Solder	Thermoplastic	Brass	Vertical	-30 ░C	105 ░C	12	12	0.3 in	7.62 mm	1	Header Male Pins Shrouded (4 Side)	0.157 in	4 mm	UL94 V-0	Mating Flange

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 2.20
		10	$ 1.32
		25	$ 1.15
		50	$ 1.05
		100	$ 0.98
		250	$ 0.91
		500	$ 0.88
		1000	$ 0.85
		5000	$ 0.81

Description

General part information

OSTOQ12 Series

12 Position Terminal Block Header, Male Pins, Shrouded (4 Side) 0.150" (3.81mm) 90°, Right Angle Solder
