HDF-R44-113L461

Active

MH Connectors

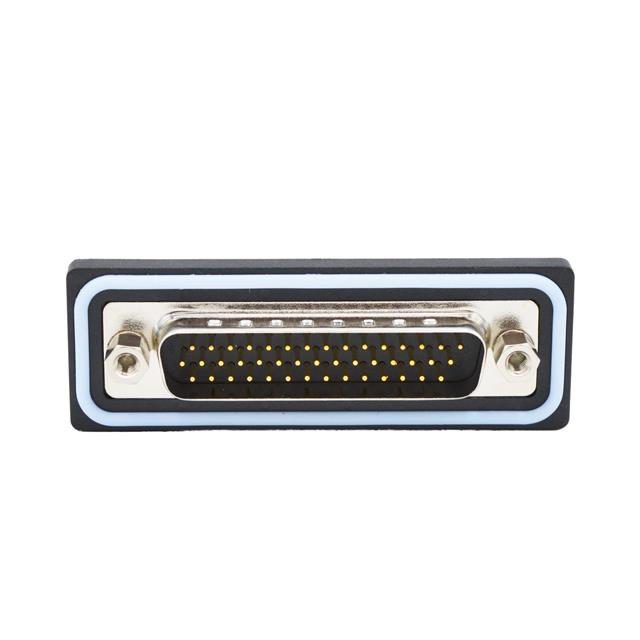

CONN D-SUB HD PLUG 44P R/A SLDR

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

HDF-R44-113L461

Active

MH Connectors

CONN D-SUB HD PLUG 44P R/A SLDR

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	HDF-R44-113L461

Color	Black
Connector Style	High Density, D-Sub
Connector Type	Plug, Male Pins
Contact Finish	Gold
Contact Finish Thickness	Flash
Contact Material	Brass
Contact Type	Signal
Current Rating (Amps)	3 A
Dielectric Material	Polybutylene Terephthalate (PBT)
Features	Grounding Indents, Mounting Brackets, Board Lock
Flange Feature	Female Screwlock (4-40), Mating Side
Ingress Protection	IP67 - Dust Tight, Waterproof
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle, Panel Mount
Number of Positions	44
Number of Rows	3
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-25 °C
Shell Material, Finish	Nickel Plated, Steel
Shell Size, Connector Layout [custom]	B, DB
Shell Size, Connector Layout [x]	3
Termination	Solder

HDF-R44 Series

Part	Number of Rows	Material Flammability Rating	Features	Operating Temperature [Min]	Operating Temperature [Max]	Number of Positions	Current Rating (Amps)	Contact Finish	Contact Finish Thickness	Contact Type	Shell Size, Connector Layout [x]	Shell Size, Connector Layout [custom]	Flange Feature	Mounting Type	Connector Style	Shell Material, Finish	Color	Ingress Protection	Dielectric Material	Termination	Contact Material	Connector Type	Contact Finish Thickness	Contact Finish Thickness
MH Connectors HDF-R44-113L461	3	UL94 V-0	Board Lock Grounding Indents Mounting Brackets	-25 °C	85 °C	44	3 A	Gold	Flash	Signal	3	B DB	Female Screwlock (4-40) Mating Side	Panel Mount Right Angle Through Hole	D-Sub High Density	Nickel Plated Steel	Black	IP67 - Dust Tight Waterproof	Polybutylene Terephthalate (PBT)	Solder	Brass	Male Pins Plug
MH Connectors HDF-R44-113L012	3	UL94 V-0	Grounding Indents	-25 °C	85 °C	44	3 A	Gold		Signal	3	B DB	Female Screwlock (4-40) Mating Side	Panel Mount Right Angle Through Hole	D-Sub High Density	Nickel Plated Steel	Black	IP67 - Dust Tight Waterproof	Polybutylene Terephthalate (PBT)	Solder	Brass	Male Pins Plug	0.76 Ám	30 Áin
MH Connectors HDF-R44-213L462	3	UL94 V-0	Board Lock Mounting Brackets	-25 °C	85 °C	44	3 A	Gold		Signal	3	B DB	Female Screwlock (4-40) Mating Side	Panel Mount Right Angle Through Hole	D-Sub High Density	Nickel Plated Steel	Black	IP67 - Dust Tight Waterproof	Polybutylene Terephthalate (PBT)	Solder	Brass	Receptacle Female Sockets	0.76 Ám	30 Áin
MH Connectors HDF-R44-213L012	3	UL94 V-0		-25 °C	85 °C	44	3 A	Gold		Signal	3	B DB	Female Screwlock (4-40) Mating Side	Panel Mount Right Angle Through Hole	D-Sub High Density	Nickel Plated Steel	Black	IP67 - Dust Tight Waterproof	Polybutylene Terephthalate (PBT)	Solder	Brass	Receptacle Female Sockets	0.76 Ám	30 Áin

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 30.25
		10	$ 23.35
		25	$ 21.16
		40	$ 20.14
		80	$ 18.75
		230	$ 16.89
		440	$ 15.88

Description

General part information

HDF-R44 Series

44 Position D-Sub, High Density Plug, Male Pins Connector
