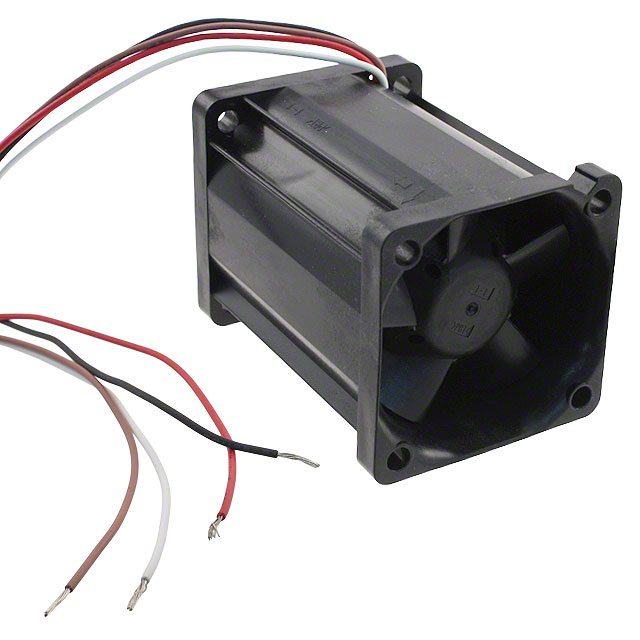

1622FT-04W-B86-E50

Obsolete

NMB TECHNOLOGIES

FAN AXIAL 40X56MM 12VDC WIRE

Search across all available documentation for this part.

Obsolete

NMB TECHNOLOGIES

FAN AXIAL 40X56MM 12VDC WIRE

Technical Specifications

Parameters and characteristics for this part

Specification	1622FT-04W-B86-E50

Air Flow	30 CFM
Air Flow	0.84 mł/min
Approval Agency	UL, VDE, CE
Bearing Type	Ball
Current Rating (Amps)	1.05 A
Fan Type	Tubeaxial
Features	Speed Sensor (Tach), PWM Control
Lifetime @ Temp.	70000 Hrs
Material - Blade	Plastic
Material - Frame	Plastic
Noise	60 dB(A)
Operating Temperature [Max]	60 °C
Operating Temperature [Max]	60 °C
Operating Temperature [Min]	-10 °C
Operating Temperature [Min]	-10 °C
Power (Watts)	12.6 W
RPM	23000 RPM
Size / Dimension	Square
Size / Dimension [x]	40 mm
Size / Dimension [z]	40 mm
Static Pressure	885 Pa
Static Pressure	3.54 in H2O
Termination	4 Wire Leads
Voltage - Rated	12 VDC
Voltage Range [Max]	13.2 VDC
Voltage Range [Min]	10.2 VDC
Weight	0.15 lbs
Weight	68.04 g
Width [x]	56 mm

Part	Bearing Type	Voltage - Rated	Material - Frame	Operating Temperature [Min]	Operating Temperature [Min]	Operating Temperature [Max]	Operating Temperature [Max]	Current Rating (Amps)	Noise	Air Flow	Air Flow	Fan Type	RPM	Voltage Range [Max]	Voltage Range [Min]	Termination	Approval Agency	Lifetime @ Temp.	Static Pressure	Static Pressure	Power (Watts)	Width [x]	Size / Dimension [z]	Size / Dimension	Size / Dimension [x]	Material - Blade	Weight	Weight	Features
NMB TECHNOLOGIES 1622FT-04W-B86-E50	Ball	12 VDC	Plastic	-10 °C	-10 °C	60 °C	60 °C	1.05 A	60 dB(A)	30 CFM	0.84 mł/min	Tubeaxial	23000 RPM	13.2 VDC	10.2 VDC	4 Wire Leads	CE UL VDE	70000 Hrs	885 Pa	3.54 in H2O	12.6 W	56 mm	40 mm	Square	40 mm	Plastic	0.15 lbs	68.04 g	PWM Control Speed Sensor (Tach)
NMB TECHNOLOGIES 1622FT-04W-B86-E00	Ball	12 VDC	Plastic	-10 °C	-10 °C	60 °C	60 °C	1.05 A	60 dB(A)	30 CFM	0.84 mł/min	Tubeaxial	23000 RPM	13.2 VDC	10.2 VDC	4 Wire Leads	CE UL VDE	70000 Hrs	885 Pa	3.54 in H2O	12.6 W	56 mm	40 mm	Square	40 mm	Plastic	0.15 lbs	68.04 g	PWM Control Speed Sensor (Tach)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Fan Tubeaxial 12VDC Square - 40mm L x 40mm H Ball 30.0 CFM (0.840mł/min) 4 Wire Leads
