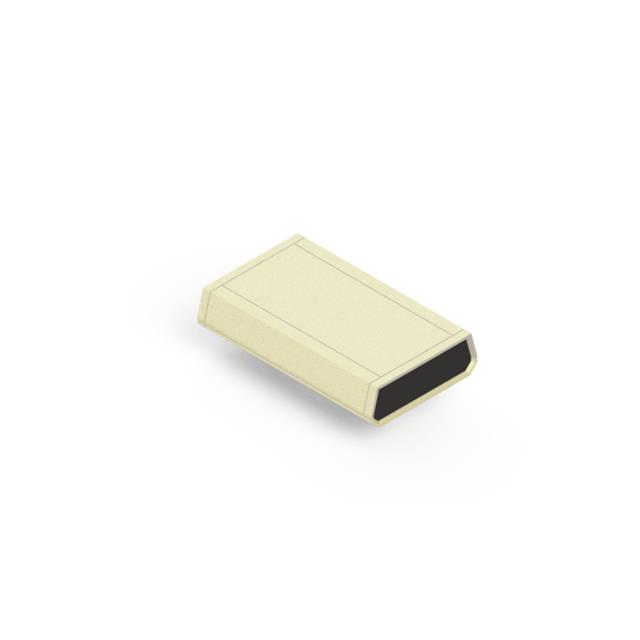

A20,AL

Active

Serpac

ENCLOSURES, BOXES, & CASES 2.60X4.25X.87 AL

Search across all available documentation for this part.

Active

Serpac

ENCLOSURES, BOXES, & CASES 2.60X4.25X.87 AL

Technical Specifications

Parameters and characteristics for this part

Specification	A20,AL

Color	Almond
Container Type	Box
Design	Split Sides and End Panel(s)
Features	PCB Supports
Height [z]	0.88 in
Height [z]	22.35 mm
Material	Plastic, ABS
Material Flammability Rating	UL94 HB
Ratings	IP40
Size / Dimension [x]	4.25 in
Size / Dimension [x]	107.95 mm
Size / Dimension [y]	2.6 "
Size / Dimension [y]	66.04 mm
Thickness	1.78 mm
Thickness	0.07 in
Weight	0.09 lb
Weight	40.82 g

Part	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Height [z]	Height [z]	Weight	Weight	Material Flammability Rating	Design	Thickness	Thickness	Material	Area (L x W)	Area (L x W)	Ratings	Color	Container Type	Features
Serpac A20,BK	2.6 "	4.25 in	107.95 mm	66.04 mm	0.88 in	22.35 mm	0.09 lb	40.82 g	UL94 HB	Split Sides and End Panel(s)	1.78 mm	0.07 in	Plastic ABS	11.2 in²	72 cm²	IP40	Black	Box	PCB Supports
Serpac A20,AL	2.6 "	4.25 in	107.95 mm	66.04 mm	0.88 in	22.35 mm	0.09 lb	40.82 g	UL94 HB	Split Sides and End Panel(s)	1.78 mm	0.07 in	Plastic ABS			IP40	Almond	Box	PCB Supports
Serpac A20,GY	2.6 "	4.25 in	107.95 mm	66.04 mm	0.88 in	22.35 mm	0.09 lb	40.82 g	UL94 HB	Split Sides and End Panel(s)	1.78 mm	0.07 in	Plastic ABS	11.2 in²	72 cm²	IP40	Gray	Box	PCB Supports

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Box Plastic, ABS Almond Split Sides and End Panel(s) 4.250" L x 2.600" W (107.95mm x 66.04mm) X 0.880" (22.35mm)
