PXM7010/03S/ST/0507/SN

Active

BULGIN LIMITED

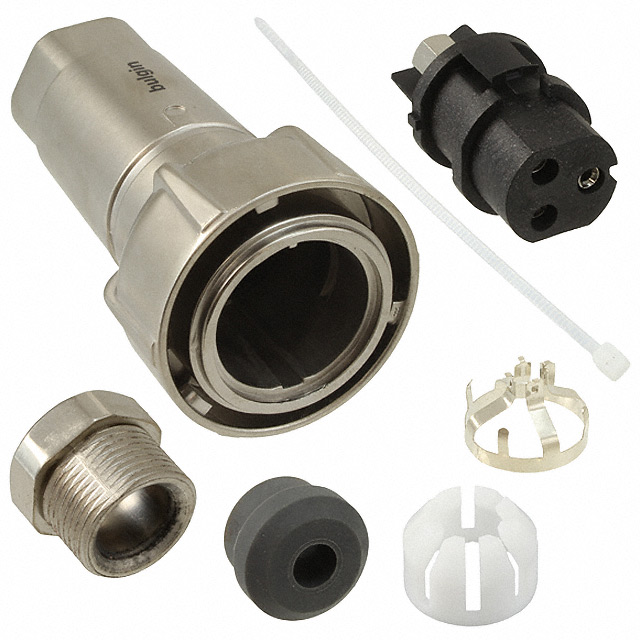

CONN PLUG FMALE 3P NICKEL SCREW

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet 7000 Series UL Cert of Compliance +1

PXM7010/03S/ST/0507/SN

Active

BULGIN LIMITED

CONN PLUG FMALE 3P NICKEL SCREW

Deep-Dive with AI

DocumentsDatasheet 7000 Series UL Cert of Compliance +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	PXM7010/03S/ST/0507/SN

Backshell Material, Plating	Nickel, Zinc Alloy
Cable Opening [diameter]	0.276 in, 0.197 in
Cable Opening [diameter]	7 mm, 5 mm
Color	Silver
Connector Type	Female Sockets, Plug
Contact Finish - Mating	Nickel
Contact Material	Brass
Current Rating (Amps)	25 A
Fastening Type	Bayonet Lock
Features	Coupling Nut, Backshell
Ingress Protection	IP69K, IP66, IP68, Dust Tight, Water Resistant, Waterproof
Mounting Type	Free Hanging (In-Line)
Number of Positions [custom]	3
Number of Positions [custom]	1
Number of Positions [custom]	2
Operating Temperature [Max]	120 °C
Operating Temperature [Min]	-40 °C
Orientation	Keyed
Primary Material	Metal
Shell Finish	Nickel
Shell Material	Zinc Alloy
Shielding	Shielded
Termination	Screw
Voltage Rating	600 V

buccaneer-7000 Series

Part	Shell Finish	Note	Fastening Type	Features	Operating Temperature [Min]	Operating Temperature [Max]	Shell Material	Contact Type	Orientation	Ingress Protection	Shielding	Number of Positions	Contact Shape	Type	Primary Material	Mounting Type	Housing Color	Connector Type	Cable Opening [Min] [custom]	Cable Opening [Max] [custom]	Cable Opening [Min] [custom]	Cable Opening [Max] [custom]	Termination	Contact Material	Backshell Material, Plating	Current Rating (Amps)	Voltage Rating	Color	Contact Finish - Mating	Cable Opening [custom]	Cable Opening [custom]	Number of Positions [custom]	Number of Positions [custom]	Number of Positions [custom]	Cable Opening [diameter]	Cable Opening [diameter]	Cable Opening [Max] [diameter]	Cable Opening [Max] [diameter]	Cable Opening [Min] [diameter]	Cable Opening [Min] [diameter]
BULGIN LIMITED PXM7010/32S/CR/1113	Nickel	Contacts Not Included	Bayonet Lock	Backshell Coupling Nut	-40 °C	120 °C	Zinc Alloy	Crimp and Solder Cup	Keyed	Dust Tight Water Resistant Waterproof IP66 IP68 IP69K	Unshielded	32	Circular	For Female Sockets	Metal	Free Hanging (In-Line)	Silver	Plug Housing
BULGIN LIMITED PXM7010/32S/CR/1315/SN	Nickel	Contacts Not Included	Bayonet Lock	Backshell Coupling Nut	-40 °C	120 °C	Zinc Alloy	Crimp and Solder Cup	Keyed	Dust Tight Water Resistant Waterproof IP66 IP68 IP69K	Shielded	32	Circular	For Female Sockets	Metal	Free Hanging (In-Line)	Silver	Plug Housing
BULGIN LIMITED PXM7010/32P/CR/1315/SN	Nickel	Contacts Not Included	Bayonet Lock	Backshell Coupling Nut	-40 °C	120 °C	Zinc Alloy	Crimp and Solder Cup	Keyed	Dust Tight Water Resistant Waterproof IP66 IP68 IP69K	Shielded	32	Circular	For Male Pins	Metal	Free Hanging (In-Line)	Silver	Plug Housing
BULGIN LIMITED PXM7010/06P/ST/1315	Nickel		Bayonet Lock	Backshell Coupling Nut	-40 °C	120 °C	Zinc Alloy		Keyed	Dust Tight Water Resistant Waterproof IP66 IP68 IP69K	Unshielded	6			Metal	Free Hanging (In-Line)		Male Pins Plug	13 mm	15 mm	0.512 in	0.591 in	Screw	Brass	Nickel Zinc Alloy	10 A	600 V	Silver	Nickel
BULGIN LIMITED PXM7010/06P/ST/0709	Nickel		Bayonet Lock	Backshell Coupling Nut	-40 °C	120 °C	Zinc Alloy		Keyed	Dust Tight Water Resistant Waterproof IP66 IP68 IP69K	Unshielded	6			Metal	Free Hanging (In-Line)		Male Pins Plug					Screw	Brass	Nickel Zinc Alloy	10 A	600 V	Silver	Nickel	0.276 in 0.354 in	7 mm 9 mm
BULGIN LIMITED PXM7010/32S/CR/0507/SN	Nickel	Contacts Not Included	Bayonet Lock	Backshell Coupling Nut	-40 °C	120 °C	Zinc Alloy	Crimp and Solder Cup	Keyed	Dust Tight Water Resistant Waterproof IP66 IP68 IP69K	Shielded	32	Circular	For Female Sockets	Metal	Free Hanging (In-Line)	Silver	Plug Housing
BULGIN LIMITED PXM7010/03S/ST/0507/SN	Nickel		Bayonet Lock	Backshell Coupling Nut	-40 °C	120 °C	Zinc Alloy		Keyed	Dust Tight Water Resistant Waterproof IP66 IP68 IP69K	Shielded				Metal	Free Hanging (In-Line)		Female Sockets Plug					Screw	Brass	Nickel Zinc Alloy	25 A	600 V	Silver	Nickel			3	1	2	0.197 in 0.276 in	5 mm 7 mm
BULGIN LIMITED PXM7010/03P/ST/0709	Nickel		Bayonet Lock	Backshell Coupling Nut	-40 °C	120 °C	Zinc Alloy		Keyed	Dust Tight Water Resistant Waterproof IP66 IP68 IP69K	Unshielded				Metal	Free Hanging (In-Line)		Male Pins Plug					Screw	Brass	Nickel Zinc Alloy	25 A	600 V	Silver	Nickel	0.276 in 0.354 in	7 mm 9 mm	3	1	2
BULGIN LIMITED PXM7010/10S/CR/1315/SN	Nickel	Contacts Not Included	Bayonet Lock	Backshell Coupling Nut	-40 °C	120 °C	Zinc Alloy	Crimp and Solder Cup	Keyed	Dust Tight Water Resistant Waterproof IP66 IP68 IP69K	Shielded	10	Circular	For Female Sockets	Metal	Free Hanging (In-Line)	Silver	Plug Housing
BULGIN LIMITED PXM7010/02P/ST/0911/SN	Nickel		Bayonet Lock	Backshell Coupling Nut	-40 °C	120 °C	Zinc Alloy		Keyed	Dust Tight Water Resistant Waterproof IP66 IP68 IP69K	Shielded	2			Metal	Free Hanging (In-Line)		Male Pins Plug					Screw	Brass	Nickel Zinc Alloy	25 A	600 V	Silver	Nickel								11 mm	0.433 in	0.354 in	9 mm
