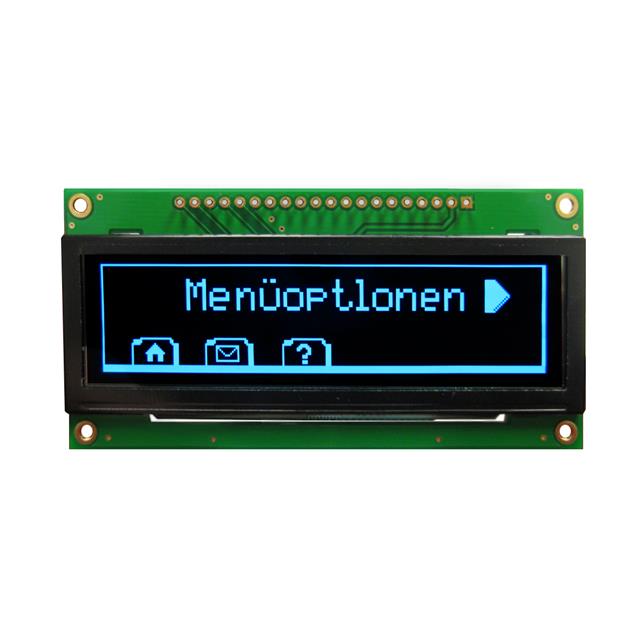

NHD-3.12-25664UMB3

Active

Newhaven Display Intl

OLED GRAPH MULTIFONT BLUE 3.12

Search across all available documentation for this part.

Active

Newhaven Display Intl

OLED GRAPH MULTIFONT BLUE 3.12

Technical Specifications

Parameters and characteristics for this part

Part	Backlight	Graphics Color	Diagonal Screen Size [custom]	Diagonal Screen Size [custom]	Display Type	Viewing Area [x]	Viewing Area [y]	Dot Pixels [y]	Dot Pixels [x]	Background Color	Controller Type	Interface	Dot Size [x]	Dot Size [y]	Dot Pitch [x]	Dot Pitch [y]
Newhaven Display Intl NHD-3.12-25664UMB3	Without Backlight	Blue	3.12 in	79.25 mm	OLED - Passive Matrix	82 mm	22 mm	64	256	Black	SSD1322	Parallel/Serial
Newhaven Display Intl NHD-3.12-25664UMY3	Without Backlight	Yellow	3.12 in	79.25 mm	OLED - Passive Matrix	82 mm	22 mm	64	256	Black	SSD1322	Parallel/Serial
Newhaven Display Intl NHD-3.12-25664UCW2		White	3.12 in	79.25 mm	OLED - Passive Matrix	82 mm	22 mm	64	256		SSD1322	Parallel Serial
Newhaven Display Intl NHD-3.12-25664UCY2	Without Backlight	Yellow	3.12 in	79.25 mm	OLED - Passive Matrix	82 mm	22 mm	64	256	Black	SSD1322	8-Bit Parallel SPI	0.28 mm	0.28 mm	0.3 mm	0.3 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Graphic LCD Display Module Blue (Black - Inverted) OLED - Passive Matrix Parallel/Serial 3.12" (79.25mm) 256 x 64
