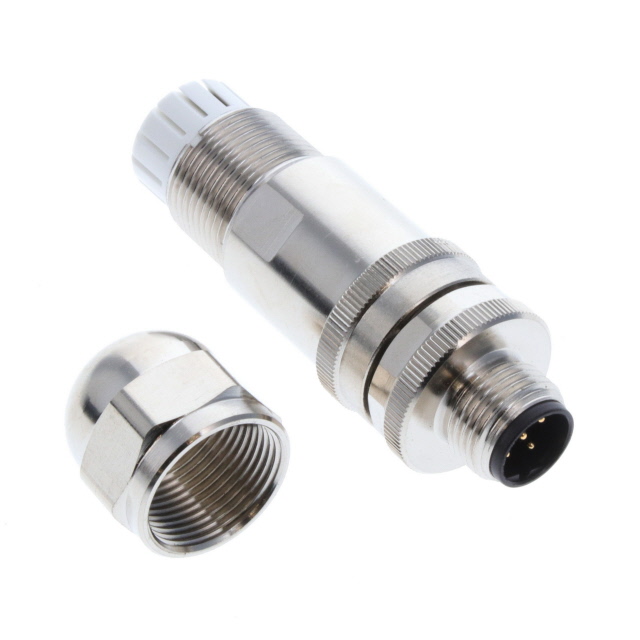

T4111411051-000

Active

TE Connectivity Raychem Cable Protection

CONN RCPT MALE 5POS GOLD SCREW

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet M12 connection application specification +1

T4111411051-000

Active

TE Connectivity Raychem Cable Protection

CONN RCPT MALE 5POS GOLD SCREW

Deep-Dive with AI

DocumentsDatasheet M12 connection application specification +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	T4111411051-000

Applications	Industrial
Backshell Material, Plating	Nickel, Brass
Cable Opening [diameter]	6 mm, 4 mm
Cable Opening [diameter]	0.236 in, 0.157 in
Color	Silver
Connector Type	Receptacle, Male Pins
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	3 µin
Contact Finish Thickness - Mating	0.076 µm
Contact Material	Zinc Alloy
Current Rating (Amps)	4 A
Features	Backshell
Ingress Protection	IP67 - Dust Tight, Waterproof
Insert Material	Nylon, Polyamide (PA)
Mounting Type	Free Hanging (In-Line)
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Orientation	B
Primary Material	Metal
Shell Finish	Nickel
Shell Material	Brass
Shell Size - Insert	M12-5
Shielding	Shielded
Termination	Screw
Voltage Rating	60 VDC

T41114 Series

Part	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Color	Features	Current Rating (Amps)	Applications	Primary Material	Operating Temperature [Max]	Operating Temperature [Min]	Connector Type	Mounting Type	Shell Finish	Cable Opening [diameter]	Cable Opening [diameter]	Termination	Shielding	Shell Material	Shell Size - Insert	Insert Material	Contact Material	Contact Finish - Mating	Orientation	Ingress Protection	Backshell Material, Plating	Voltage Rating	Number of Positions	Cable Opening [Max] [custom]	Cable Opening [Min] [custom]	Cable Opening [Max] [custom]	Cable Opening [Min] [custom]
TE Connectivity Raychem Cable Protection T4111411051-000	3 µin	0.076 µm	Silver	Backshell	4 A	Industrial	Metal	85 °C	-40 °C	Male Pins Receptacle	Free Hanging (In-Line)	Nickel	4 mm 6 mm	0.157 in 0.236 in	Screw	Shielded	Brass	M12-5	Nylon Polyamide (PA)	Zinc Alloy	Gold	B	IP67 - Dust Tight Waterproof	Brass Nickel	60 VDC
TE Connectivity Raychem Cable Protection T4111411021-000	3 µin	0.076 µm	Silver	Backshell	4 A	Industrial	Metal	85 °C	-40 °C	Male Pins Receptacle	Free Hanging (In-Line)	Nickel	4 mm 6 mm	0.157 in 0.236 in	Screw	Shielded	Brass	M12-2	Nylon Polyamide (PA)	Brass	Gold	B	IP67 - Dust Tight Waterproof	Brass Nickel	250 VDC	2
TE Connectivity Raychem Cable Protection T4111401041-000	3 µin	0.076 µm	Black Silver	Backshell	4 A	Industrial	Metal	85 °C	-40 °C	Male Pins Receptacle	Free Hanging (In-Line)	Nickel	4 mm 6 mm	0.157 in 0.236 in	Screw	Unshielded	Brass	M12-4	Nylon Polyamide (PA)	Zinc Alloy	Gold	B	IP67 - Dust Tight Waterproof	Glass Filled Polybutylene Terephthalate (PBT)	250 VDC	4
TE Connectivity Raychem Cable Protection T4111402042-000	80 µin	2.03 µm	Black Silver	Backshell	4 A	Industrial	Metal	85 °C	-40 °C	Male Pins Receptacle	Free Hanging (In-Line)	Nickel			Screw	Unshielded	Brass	M12-4	Nylon Polyamide (PA)	Brass	Silver	B	IP67 - Dust Tight Waterproof	Glass Filled Polybutylene Terephthalate (PBT)	250 VDC	4	8 mm	6 mm	0.315 in	0.236 in
TE Connectivity Raychem Cable Protection T4111402051-000	3 µin	0.076 µm	Black Silver	Backshell	4 A	Industrial	Metal	85 °C	-40 °C	Male Pins Receptacle	Free Hanging (In-Line)	Nickel			Screw	Unshielded	Brass	M12-5	Nylon Polyamide (PA)	Zinc Alloy	Gold	B	IP67 - Dust Tight Waterproof	Glass Filled Polybutylene Terephthalate (PBT)	60 VDC		8 mm	6 mm	0.315 in	0.236 in
TE Connectivity Raychem Cable Protection T4111412042-000	80 µin	2.03 µm	Silver	Backshell	4 A	Industrial	Metal	85 °C	-40 °C	Male Pins Receptacle	Free Hanging (In-Line)	Nickel			Screw	Shielded	Brass	M12-4	Nylon Polyamide (PA)	Brass	Silver	B	IP67 - Dust Tight Waterproof	Brass Nickel	250 VDC	4	8 mm	6 mm	0.315 in	0.236 in
TE Connectivity Raychem Cable Protection T4111412021-000	3 µin	0.076 µm	Silver	Backshell	4 A	Industrial	Metal	85 °C	-40 °C	Male Pins Receptacle	Free Hanging (In-Line)	Nickel			Screw	Shielded	Brass	M12-2	Nylon Polyamide (PA)	Brass	Gold	B	IP67 - Dust Tight Waterproof	Brass Nickel	250 VDC	2	8 mm	6 mm	0.315 in	0.236 in
TE Connectivity Raychem Cable Protection T4111401031-000	3 µin	0.076 µm	Black Silver	Backshell	4 A	Industrial	Metal	85 °C	-40 °C	Male Pins Receptacle	Free Hanging (In-Line)	Nickel	4 mm 6 mm	0.157 in 0.236 in	Screw	Unshielded	Brass	M12-3	Nylon Polyamide (PA)	Zinc Alloy	Gold	B	IP67 - Dust Tight Waterproof	Glass Filled Polybutylene Terephthalate (PBT)	250 VDC
TE Connectivity Raychem Cable Protection T4111411022-000	80 µin	2.03 µm	Silver	Backshell	4 A	Industrial	Metal	85 °C	-40 °C	Male Pins Receptacle	Free Hanging (In-Line)	Nickel	4 mm 6 mm	0.157 in 0.236 in	Screw	Shielded	Brass	M12-2	Nylon Polyamide (PA)	Brass	Silver	B	IP67 - Dust Tight Waterproof	Brass Nickel	250 VDC	2
TE Connectivity Raychem Cable Protection T4111402041-000	3 µin	0.076 µm	Black Silver	Backshell	4 A	Industrial	Metal	85 °C	-40 °C	Male Pins Receptacle	Free Hanging (In-Line)	Nickel			Screw	Unshielded	Brass	M12-4	Nylon Polyamide (PA)	Zinc Alloy	Gold	B	IP67 - Dust Tight Waterproof	Glass Filled Polybutylene Terephthalate (PBT)	250 VDC	4	8 mm	6 mm	0.315 in	0.236 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 11.84
		10	$ 10.71
		25	$ 10.43
		50	$ 10.03
		100	$ 9.29
		250	$ 9.24
		500	$ 8.90
		1000	$ 7.93

Description

General part information

T41114 Series

5 Position Circular Connector Receptacle, Male Pins Screw

Documents

Technical documentation and resources

Datasheet

M12 connection application specification

Datasheet

Industrial M8 & M12 Series Circular connector

Datasheet
