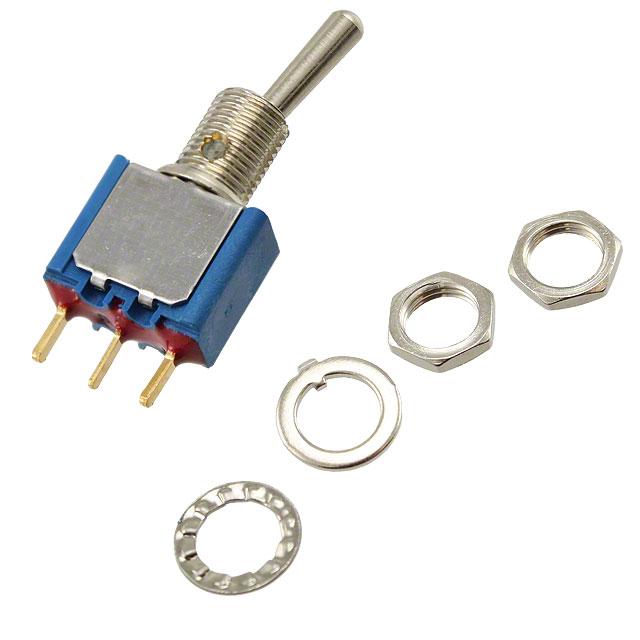

5237CDB

Active

APEM

TOGGLE SWITCH, ON-OFF-ON, SPDT, NON ILLUMINATED, 5000 SERIES, 6 A

Search across all available documentation for this part.

Active

APEM

TOGGLE SWITCH, ON-OFF-ON, SPDT, NON ILLUMINATED, 5000 SERIES, 6 A

Technical Specifications

Parameters and characteristics for this part

Specification	5237CDB

Actuator Material	Brass, Nickel Plated
Actuator Type	Standard Round
Bushing Thread	1/4-40
Circuit	SPDT
Current Rating (Amps)	0.4 VA
Electrical Life	50000 Cycles
Features	Epoxy Sealed Terminals
Illumination	Non-Illuminated
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Panel Cutout Dimensions [diameter]	6.5 mm
Switch Function	Mom-Off-Mom
Termination Style	PC Pin
Voltage Rating - AC	20 V
Voltage Rating - DC	20 V

Part	Bushing Thread	Actuator Material	Voltage Rating - AC	Features	Illumination	Current Rating (Amps)	Termination Style	Voltage Rating - DC	Panel Cutout Dimensions [diameter]	Circuit	Electrical Life	Switch Function	Actuator Type	Operating Temperature [Max]	Operating Temperature [Min]
APEM 5237CDB	1/4-40	Brass Nickel Plated	20 V	Epoxy Sealed Terminals	Non-Illuminated	0.4 VA	PC Pin	20 V	6.5 mm	SPDT	50000 Cycles	Mom-Off-Mom	Standard Round	85 °C	-40 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Toggle Switch SPDT Panel Mount
