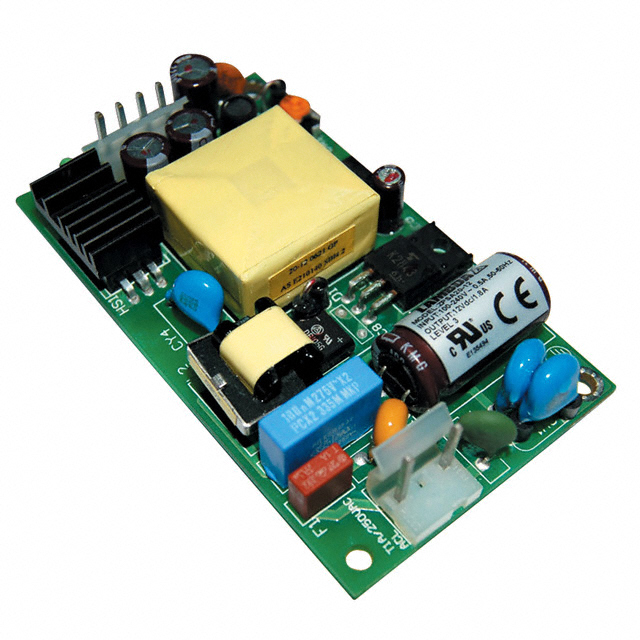

ZPSA20-12/P

Active

TDK-LAMBDA

AC/DC CONVERTER 12V 20W

Search across all available documentation for this part.

Active

TDK-LAMBDA

AC/DC CONVERTER 12V 20W

Technical Specifications

Parameters and characteristics for this part

Specification	ZPSA20-12/P

Applications	ITE (Commercial)
Approval Agency	CE
Current - Output 1	1.8 A
Features	Universal Input, DC Input Capable
Minimum Load Required	False
Mounting Type	Chassis Mount
Number of Outputs	1
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	0 °C
Power (Watts)	20 W
Size / Dimension [x]	3.5 in
Size / Dimension [x]	88.9 mm
Size / Dimension [y]	2 in
Size / Dimension [y]	50.8 mm
Size / Dimension [z]	20 mm
Size / Dimension [z]	0.79 in
Type	Open Frame
Voltage - Input [Max]	370 VDC, 264 VAC
Voltage - Input [Min]	85 VAC, 120 VDC
Voltage - Isolation	3000 V
Voltage - Output 1	12 V

Part	Operating Temperature [Max]	Features	Applications	Approval Agency	Number of Outputs	Voltage - Isolation	Voltage - Input [Min]	Voltage - Input [Max]	Mounting Type	Current - Output 1	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [x]	Type	Power (Watts)	Voltage - Output 1
TDK-LAMBDA ZPSA20-12/P	70 °C	DC Input Capable Universal Input	ITE (Commercial)	CE	1	3000 V	85 VAC 120 VDC	264 VAC 370 VDC	Chassis Mount	1.8 A	2 in	50.8 mm	20 mm	0.79 in	3.5 in	88.9 mm	Open Frame	20 W	12 V
TDK-LAMBDA ZPSA20-12	70 °C	DC Input Capable Universal Input	ITE (Commercial)	CE	1	3000 V	85 VAC 120 VDC	264 VAC 370 VDC	Chassis Mount	2 A	2 in	50.8 mm	20 mm	0.79 in	3.5 in	88.9 mm	Open Frame	20 W	12 V
TDK-LAMBDA ZPSA20-15	70 °C	DC Input Capable Universal Input	ITE (Commercial)	CE	1	3000 V	85 VAC 120 VDC	264 VAC 370 VDC	Chassis Mount	1.4 A	2 in	50.8 mm	20 mm	0.79 in	3.5 in	88.9 mm	Open Frame	20 W	15 V
TDK-LAMBDA ZPSA20-24	70 °C	DC Input Capable Universal Input	ITE (Commercial)	CE	1	3000 V	85 VAC 120 VDC	264 VAC 370 VDC	Chassis Mount	920 mA	2 in	50.8 mm	20 mm	0.79 in	3.5 in	88.9 mm	Open Frame	20 W	24 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Open Frame AC DC Converters 1 Output 12V 85 ~ 264 VAC, 120 ~ 370 VDC Input
