ZA-18BFRS-BA0001

Active

Amphenol LTW

CONN FFC BOTTOM 18POS 1.8MM R/A

Search across all available documentation for this part.

Active

Amphenol LTW

CONN FFC BOTTOM 18POS 1.8MM R/A

Technical Specifications

Parameters and characteristics for this part

Specification	ZA-18BFRS-BA0001

Connector/Contact Type	Contacts, Bottom
Contact Finish	Gold
Contact Material	Copper Alloy
Features	Solder Retention, Board Guide
Flat Flex Type	FPC, FFC
Height Above Board	7.9 mm
Height Above Board	0.311 in
Housing Color	Black
Housing Material	Thermoplastic
Mounting Type	Surface Mount, Right Angle
Number of Positions	18
Operating Temperature [Max]	110 °C
Operating Temperature [Min]	-40 °C
Pitch [x]	0.071 in
Pitch [x]	1.8 mm
Termination	Solder
Voltage Rating	120 VDC

Part	Housing Material	Housing Color	Height Above Board	Height Above Board	Features	Contact Material	Termination	Mounting Type	Pitch [x]	Pitch [x]	Voltage Rating	Connector/Contact Type	Operating Temperature [Min]	Operating Temperature [Max]	Number of Positions	Flat Flex Type	Contact Finish
Amphenol LTW ZA-18BFRS-BA0001	Thermoplastic	Black	7.9 mm	0.311 in	Board Guide Solder Retention	Copper Alloy	Solder	Surface Mount Right Angle	0.071 in	1.8 mm	120 VDC	Contacts Bottom	-40 °C	110 °C	18	FFC FPC	Gold

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

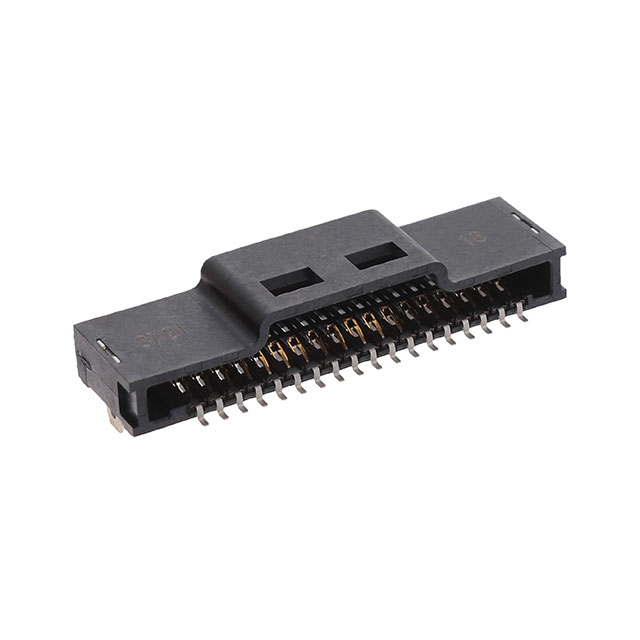

18 Position FFC, FPC Connector Contacts, Bottom 0.071" (1.80mm) Surface Mount, Right Angle
