1.15.213.003/0000
ActiveRAFI USA

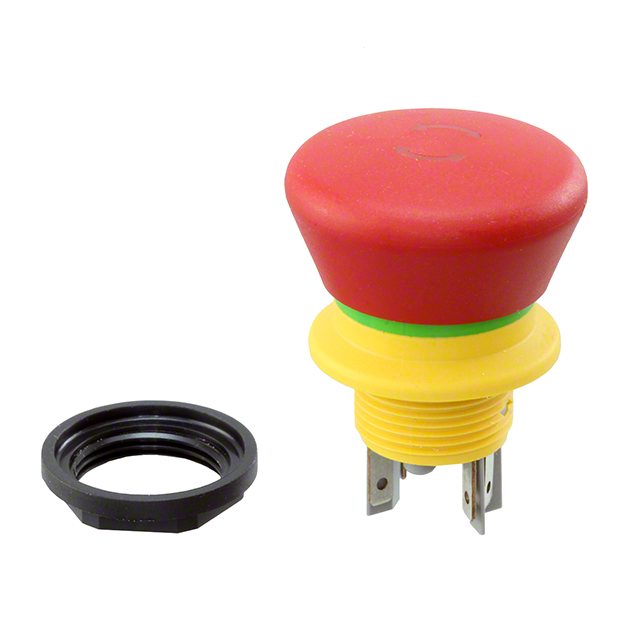

SWITCH E-STOP TWIST RESET 5A 35V
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
1.15.213.003/0000
ActiveRAFI USA
SWITCH E-STOP TWIST RESET 5A 35V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 1.15.213.003/0000 |
|---|---|
| Circuit | 3PST-2NC/1NO |
| Current Rating (Amps) | 2 A, 5 A |
| Features | Status Indicator |
| Ingress Protection | IP65 - Dust Tight, Water Resistant |
| Mounting Type | Panel Mount, Front |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -25 °C |
| Panel Cutout Dimensions [diameter] | 16.2 mm |
| Reset Operation | Twist |
| Switch Function | On-Off, Off-On |
| Termination Style | 0.11 in |
| Termination Style | Quick Connect, Solder |
| Termination Style | 2.8 mm |
| Voltage Rating - DC | 35 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 68.80 | |
| 5 | $ 60.07 | |||
| 10 | $ 56.65 | |||
| 30 | $ 51.61 | |||
| 50 | $ 49.41 | |||
| 100 | $ 46.58 | |||
Description
General part information
1.15.213 Series
SWITCH E-STOP TWIST RESET 5A 35V
Documents
Technical documentation and resources
