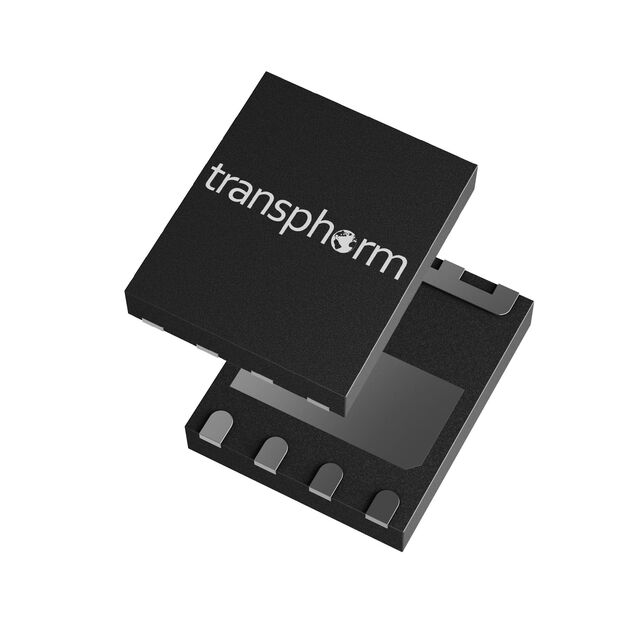

TP65H300G4JSGB-TR
ActiveTransphorm
GANFET N-CH 650V 9.2A QFN5X6
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
TP65H300G4JSGB-TR
ActiveTransphorm
GANFET N-CH 650V 9.2A QFN5X6
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | TP65H300G4JSGB-TR |
|---|---|
| Current - Continuous Drain (Id) @ 25°C | 9.2 A |
| Drain to Source Voltage (Vdss) | 650 V |
| Drive Voltage (Max Rds On, Min Rds On) | 6 V |
| FET Type | N-Channel |
| Gate Charge (Qg) (Max) @ Vgs [Max] | 3.5 nC |
| Input Capacitance (Ciss) (Max) @ Vds | 400 pF |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 150 °C |
| Operating Temperature [Min] | -55 °C |
| Package / Case | 8-PowerTDFN |
| Power Dissipation (Max) [Max] | 41.6 W |
| Rds On (Max) @ Id, Vgs | 312 mOhm |
| Supplier Device Package | 8-PQFN (5x6) |
| Technology | GaNFET (Gallium Nitride) |
| Vgs (Max) | 10 V |
| Vgs(th) (Max) @ Id [Max] | 2.8 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 3.21 | |
| 10 | $ 2.70 | |||
| 100 | $ 2.18 | |||
| 500 | $ 1.94 | |||
| 1000 | $ 1.66 | |||
| 2000 | $ 1.56 | |||
| Digi-Reel® | 1 | $ 3.21 | ||
| 10 | $ 2.70 | |||
| 100 | $ 2.18 | |||
| 500 | $ 1.94 | |||
| 1000 | $ 1.66 | |||
| 2000 | $ 1.56 | |||
| Tape & Reel (TR) | 4000 | $ 1.56 | ||
Description
General part information
TP65H300G4JSGB-TR
N-Channel 650 V 9.2A (Tc) 41.6W (Tc) Surface Mount 8-PQFN (5x6)
