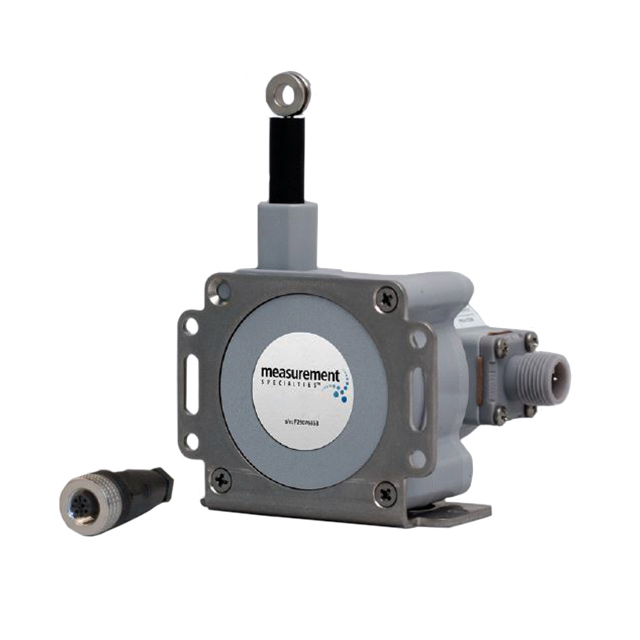

SPD-12-3
ActiveTE Connectivity Measurement Specialties
SENSOR LINEAR 317MM CONNECTOR
Deep-Dive with AI
Search across all available documentation for this part.
SPD-12-3
ActiveTE Connectivity Measurement Specialties
SENSOR LINEAR 317MM CONNECTOR
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | SPD-12-3 |
|---|---|
| Actuator Type | String Potentiometer |
| For Measuring | Linear Position |
| Linear Range [Max] | 317 mm |
| Linear Range [Max] | 12.5 in |
| Linear Range [Min] | 0 mm |
| Linear Range [Min] | 0 in |
| Mounting Type | Custom |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -40 °C |
| Output [Max] | 20 mA |
| Output [Min] | 4 |
| Package / Case | Box with Connector |
| Technology | Resistive |
| Termination Style | Connector |
| Voltage - Supply [Max] | 40 VDC |
| Voltage - Supply [Min] | 8 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 645.59 | |
| 5 | $ 544.70 | |||
| 10 | $ 506.29 | |||
Description
General part information
SPD Series
Resistive Sensor Linear Position String Potentiometer Connector
Documents
Technical documentation and resources
No documents available
