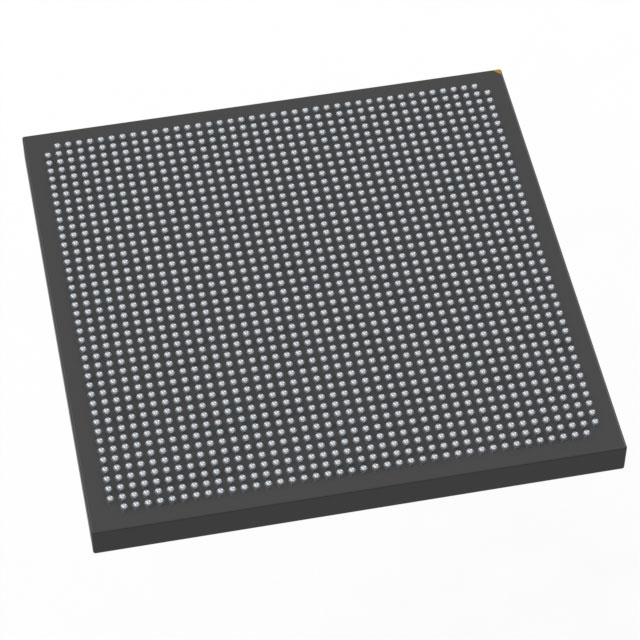

XCKU15P-L2FFVE1760E

Active

AMD

IC FPGA 668 I/O 1760FCBGA

Deep-Dive with AI

Search across all available documentation for this part.

XCKU15P-L2FFVE1760E

Active

AMD

IC FPGA 668 I/O 1760FCBGA

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	XCKU15P-L2FFVE1760E

Mounting Type	Surface Mount
Number of I/O	668
Number of LABs/CLBs	65340
Number of Logic Elements/Cells	1143450
Operating Temperature [Max]	100 °C
Operating Temperature [Min]	0 °C
Package / Case	1760-BBGA, FCBGA
Supplier Device Package	1760-FCBGA
Supplier Device Package [x]	42.5
Supplier Device Package [y]	42.5
Total RAM Bits	82329600 Bits
Voltage - Supply [Max]	0.876 V
Voltage - Supply [Min]	0.698 V

XCKU15 Series

Part	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Supply [Min]	Voltage - Supply [Max]	Number of I/O	Package / Case	Total RAM Bits	Supplier Device Package [y]	Supplier Device Package [x]	Supplier Device Package	Number of Logic Elements/Cells	Mounting Type	Number of LABs/CLBs
AMD XCKU15P-1FFVA1760E	100 °C	0 °C	0.825 V	0.876 V	512	1760-BBGA FCBGA	82329600 Bits	42.5	42.5	1760-FCBGA	1143450	Surface Mount	65340
AMD XCKU15P-L2FFVE1760E	100 °C	0 °C	0.698 V	0.876 V	668	1760-BBGA FCBGA	82329600 Bits	42.5	42.5	1760-FCBGA	1143450	Surface Mount	65340
AMD XCKU15P-3FFVE1517E	100 °C	0 °C	0.873 V	0.927 V	512	1517-BBGA FCBGA	82329600 Bits			1517-FCBGA (40x40)	1143450	Surface Mount	65340
AMD XCKU15P-2FFVA1156E	100 °C	0 °C	0.825 V	0.876 V	516	1156-BBGA FCBGA	82329600 Bits			1156-FCBGA (35x35)	1143450	Surface Mount	65340
AMD XCKU15P-2FFVE1517I	100 °C	-40 C	0.825 V	0.876 V	512	1517-BBGA FCBGA	82329600 Bits			1517-FCBGA (40x40)	1143450	Surface Mount	65340
AMD XCKU15P-1FFVE1517E	100 °C	0 °C	0.825 V	0.876 V	512	1517-BBGA FCBGA	82329600 Bits			1517-FCBGA (40x40)	1143450	Surface Mount	65340
AMD XCKU15P-L2FFVA1156E	100 °C	0 °C	0.698 V	0.876 V	516	1156-BBGA FCBGA	82329600 Bits			1156-FCBGA (35x35)	1143450	Surface Mount	65340
AMD XCKU15P-3FFVA1156E	100 °C	0 °C	0.873 V	0.927 V	516	1156-BBGA FCBGA	82329600 Bits			1156-FCBGA (35x35)	1143450	Surface Mount	65340
AMD XCKU15P-L2FFVE1517E	100 °C	0 °C	0.698 V	0.876 V	512	1517-BBGA FCBGA	82329600 Bits			1517-FCBGA (40x40)	1143450	Surface Mount	65340
AMD XCKU15P-2FFVA1760E	100 °C	0 °C	0.825 V	0.876 V	512	1760-BBGA FCBGA	82329600 Bits	42.5	42.5	1760-FCBGA	1143450	Surface Mount	65340

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 9147.50

Description

General part information

XCKU15 Series

Kintex® UltraScale+™ Field Programmable Gate Array (FPGA) IC 668 82329600 1143450 1760-BBGA, FCBGA
