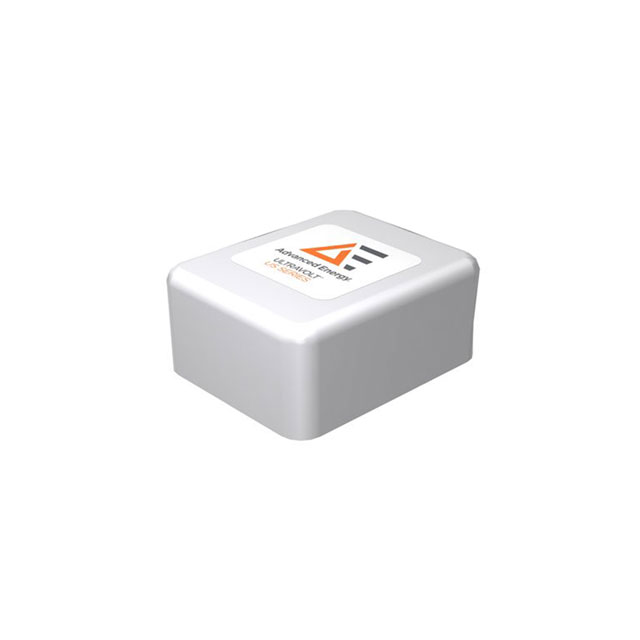

0.3US12-N0.1

Active

ULTRAVOLT / Advanced Energy

DC DC CONVERTER 300V

Search across all available documentation for this part.

Active

ULTRAVOLT / Advanced Energy

DC DC CONVERTER 300V

Technical Specifications

Parameters and characteristics for this part

Specification	0.3US12-N0.1

Applications	ITE (Commercial)
Approval Agency	CE, cURus
Control Features	Active Low, Enable
Current - Output (Max) [Max]	330 µA
Mounting Type	Through Hole
Number of Outputs	1
Operating Temperature [Max]	65 °C
Operating Temperature [Min]	-10 °C
Package / Case	12-DIP Module, 7 Leads
Size / Dimension [x]	25.5 mm, 25.4 mm
Size / Dimension [y]	0.81 ", 20.5 mm
Size / Dimension [z]	11 mm, 0.43 in
Type	High Voltage - Non-Isolated Module
Voltage - Input (Max) [Max]	12.5 V
Voltage - Input (Min) [Min]	11.5 V
Voltage - Output 1	300 V

Part	Number of Outputs	Control Features	Voltage - Input (Min) [Min]	Current - Output (Max) [Max]	Mounting Type	Applications	Approval Agency	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - Input (Max) [Max]	Type	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Package / Case	Voltage - Output 1
ULTRAVOLT / Advanced Energy 0.3US12-N0.1	1	Active Low Enable	11.5 V	330 µA	Through Hole	ITE (Commercial)	CE cURus	-10 °C	65 °C	12.5 V	High Voltage - Non-Isolated Module	0.81 " 20.5 mm	0.43 in 11 mm	25.4 mm 25.5 mm	12-DIP Module 7 Leads	300 V
ULTRAVOLT / Advanced Energy 0.3US12-P0.1-WS	1	Active High Enable	11.5 V	330 µA	Through Hole	ITE (Commercial)	CE cURus	-10 °C	65 °C	12.5 V	High Voltage - Non-Isolated Module	0.81 " 20.5 mm	0.43 in 11 mm	25.4 mm 25.5 mm	6-SIP Module	300 V
ULTRAVOLT / Advanced Energy 0.3US12-P0.1	1	Active High Enable	11.5 V	330 µA	Through Hole	ITE (Commercial)	CE cURus	-10 °C	65 °C	12.5 V	High Voltage - Non-Isolated Module	0.81 " 20.5 mm	0.43 in 11 mm	25.4 mm 25.5 mm	12-DIP Module 7 Leads	300 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	4	$ 201.67

General part information

High Voltage - Non-Isolated Module DC DC Converter 1 Output 300V 330µA 11.5V - 12.5V Input
