OSTNR121101

Active

On Shore Technology Inc.

3.5MM TERM BLOCK HEADER W/ FLANG

Search across all available documentation for this part.

Active

On Shore Technology Inc.

3.5MM TERM BLOCK HEADER W/ FLANG

Technical Specifications

Parameters and characteristics for this part

Specification	OSTNR121101

Color	Black
Contact Material	Copper
Contact Mating Finish	Tin
Contact Tail Length	0.079 in
Contact Tail Length	2 mm
Current - UL	8 A
Header Orientation	90°, Right Angle
Housing Material	Liquid Crystal Polymer (LCP)
Insulation Height	0.425 in
Insulation Height	10.8 mm
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Levels	2
Number of Positions	12
Operating Temperature [Max]	115 °C
Operating Temperature [Min]	-40 °C
Pitch [x]	3.5 mm
Pitch [x]	0.138 in
Positions Per Level	6
Termination Style	Solder
Type	Header, Male Pins, Shrouded (4 Side)
Voltage - UL	150 V

Part	Positions Per Level	Number of Levels	Mounting Type	Voltage - UL	Type	Operating Temperature [Min]	Operating Temperature [Max]	Material Flammability Rating	Pitch [x]	Pitch [x]	Housing Material	Insulation Height	Insulation Height	Contact Tail Length	Contact Tail Length	Header Orientation	Number of Positions	Termination Style	Current - UL	Color	Contact Material	Contact Mating Finish	Features
On Shore Technology Inc. OSTNR121101	6	2	Through Hole	150 V	Header Male Pins Shrouded (4 Side)	-40 °C	115 °C	UL94 V-0	3.5 mm	0.138 in	Liquid Crystal Polymer (LCP)	0.425 in	10.8 mm	0.079 in	2 mm	90° Right Angle	12	Solder	8 A	Black	Copper	Tin
On Shore Technology Inc. OSTNR121100	6	2	Through Hole	300 V	Header Male Pins Shrouded (4 Side)	-40 °C	115 °C	UL94 V-0	3.5 mm	0.138 in	Liquid Crystal Polymer (LCP)	0.457 in	11.6 mm	0.079 in	2 mm	Vertical	12	Solder	8 A	Black	Copper	Tin
On Shore Technology Inc. OSTNR121201	6	2	Through Hole	150 V	Header Male Pins Shrouded (4 Side)	-40 °C	115 °C	UL94 V-0	3.5 mm	0.138 in	Liquid Crystal Polymer (LCP)	0.425 in	10.8 mm	0.079 in	2 mm	90° Right Angle	12	Solder	8 A	Black	Copper	Tin	Mating Flange

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

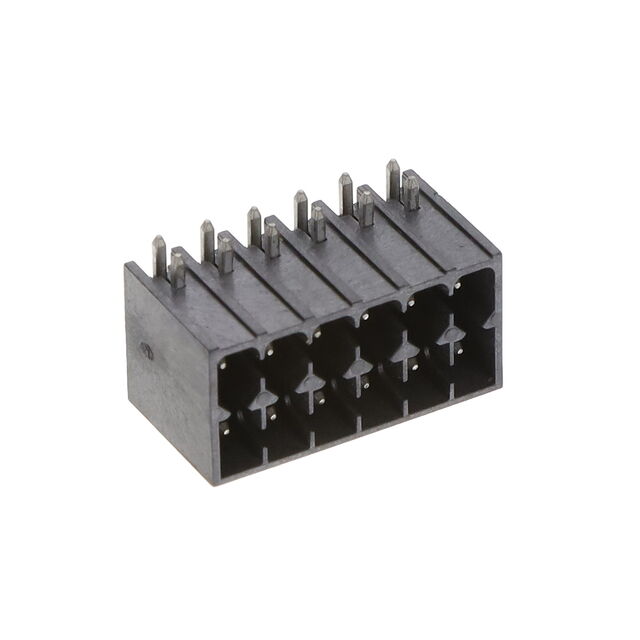

12 Position Terminal Block Header, Male Pins, Shrouded (4 Side) 0.138" (3.50mm) 90°, Right Angle Through Hole
