FDD1-17238CBHW42

Active

Qualtek

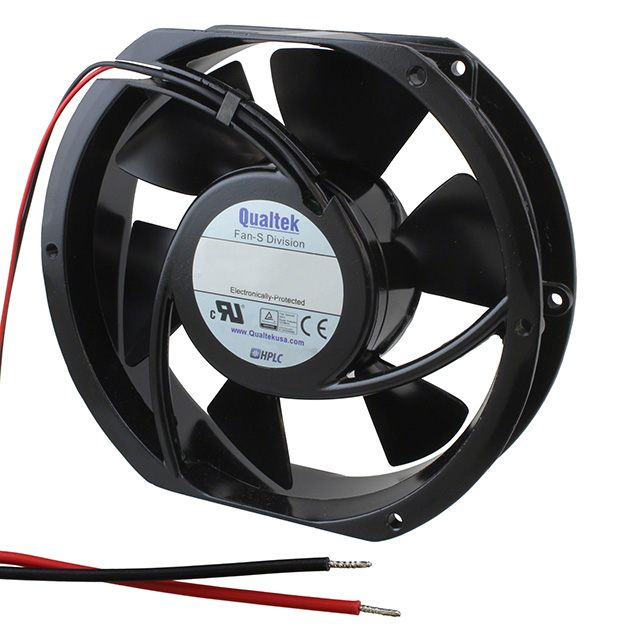

FAN AXIAL 172X38.5MM 12VDC WIRE

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

FDD1-17238CBHW42

Active

Qualtek

FAN AXIAL 172X38.5MM 12VDC WIRE

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	FDD1-17238CBHW42

Air Flow	8.68 m³/min
Air Flow	310 CFM
Approval Agency	cURus, CE, TUV
Bearing Type	Ball
Current Rating (Amps)	3.33 A
Fan Type	Tubeaxial
Lifetime @ Temp.	50000 Hrs
Material - Blade	Steel
Material - Frame	Aluminum
Noise	64 dB(A)
Operating Temperature [Max]	70 °C
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-20 °C
Operating Temperature [Min]	-20 C
Power (Watts)	39.96 W
RPM	4000 RPM
Size / Dimension	Rectangular/Rounded
Size / Dimension [x]	172 mm
Size / Dimension [z]	151 mm
Static Pressure	279.5 Pa
Static Pressure	1.122 in H2O
Termination	2 Wire Leads
Voltage - Rated	12 VDC
Weight	861.8 g
Weight	1.9 lbs
Width [y]	38.5 mm

FDD1-17238 Series

Part	Operating Temperature [Min]	Operating Temperature [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Current Rating (Amps)	Lifetime @ Temp.	Ingress Protection	Approval Agency	Features	RPM	Material - Frame	Air Flow	Air Flow	Fan Type	Static Pressure	Static Pressure	Size / Dimension [z]	Size / Dimension	Size / Dimension [x]	Voltage - Rated	Weight	Weight	Termination	Bearing Type	Width [y]	Noise	Power (Watts)	Material - Blade	Voltage - Rated [custom]
Qualtek FDD1-17238DBAW49	-20 °C	70 °C	-20 C	70 °C	0.54 A	50000 Hrs	IP54 - Dust Protected Water Resistant	CE cURus TUV	PWM Control	2800 RPM	Aluminum	210 CFM	5.88 m³/min	Tubeaxial	0.571 in H2O	142.2 Pa	151 mm	Rectangular/Rounded	172 mm	24 VDC	861.8 g	1.9 lbs	3 Wire Leads	Ball	38.5 mm	52 dB	13 W	Steel
Qualtek FDD1-17238CBHW42	-20 °C	70 °C	-20 C	70 °C	3.33 A	50000 Hrs		CE cURus TUV		4000 RPM	Aluminum	310 CFM	8.68 m³/min	Tubeaxial	1.122 in H2O	279.5 Pa	151 mm	Rectangular/Rounded	172 mm	12 VDC	861.8 g	1.9 lbs	2 Wire Leads	Ball	38.5 mm	64 dB(A)	39.96 W	Steel
Qualtek FDD1-17238EBAW44	-20 °C	70 °C	-20 C	70 °C	0.28 A	50000 Hrs	IP54 - Dust Protected Water Resistant	CE cURus TUV	Speed Sensor (Tach)	2800 RPM	Aluminum	210 CFM	5.88 m³/min	Tubeaxial	0.571 in H2O	142.2 Pa	151 mm	Rectangular/Rounded	172 mm		861.8 g	1.9 lbs	3 Wire Leads	Ball	38.5 mm	52 dB	13.4 W	Steel	48 VDC
Qualtek FDD1-17238DBLW42	-20 °C	70 °C	-20 C	70 °C	780 mA	50000 Hrs		CE cURus TUV		3200 RPM	Aluminum	245 CFM	6.86 m³/min	Tubeaxial	0.732 in H2O	182.3 Pa	151 mm	Rectangular/Rounded	172 mm	24 VDC	861.8 g	1.9 lbs	2 Wire Leads	Ball	38.5 mm	56 dB	18.7 W	Steel
Qualtek FDD1-17238CBHW4B	-20 °C	70 °C	-20 C	70 °C	3.33 A	50000 Hrs	IP54 - Dust Protected Water Resistant	CE cURus TUV	PWM Control Speed Sensor (Tach)	4000 RPM	Aluminum	310 CFM	8.68 m³/min	Tubeaxial	1.122 in H2O	279.5 Pa	151 mm	Rectangular/Rounded	172 mm	12 VDC	861.8 g	1.9 lbs	4 Wire Leads	Ball	38.5 mm	64 dB(A)	40 W	Steel
Qualtek FDD1-17238CBLW49	-20 °C	70 °C	-20 C	70 °C	1.59 A	50000 Hrs	IP54 - Dust Protected Water Resistant	CE cURus TUV	PWM Control	3200 RPM	Aluminum	245 CFM	6.86 m³/min	Tubeaxial	0.732 in H2O	182.3 Pa	151 mm	Rectangular/Rounded	172 mm	12 VDC	861.8 g	1.9 lbs	3 Wire Leads	Ball	38.5 mm	56 dB	19.1 W	Steel
Qualtek FDD1-17238CBLW4B	-20 °C	70 °C	-20 C	70 °C	1.59 A	50000 Hrs	IP54 - Dust Protected Water Resistant	CE cURus TUV	PWM Control Speed Sensor (Tach)	3200 RPM	Aluminum	245 CFM	6.86 m³/min	Tubeaxial	0.732 in H2O	182.3 Pa	151 mm	Rectangular/Rounded	172 mm	12 VDC	861.8 g	1.9 lbs	4 Wire Leads	Ball	38.5 mm	56 dB	19.1 W	Steel
Qualtek FDD1-17238DBAW44	-20 °C	70 °C	-20 C	70 °C	0.54 A	50000 Hrs	IP54 - Dust Protected Water Resistant	CE cURus TUV	Speed Sensor (Tach)	2800 RPM	Aluminum	210 CFM	5.88 m³/min	Tubeaxial	0.571 in H2O	142.2 Pa	151 mm	Rectangular/Rounded	172 mm	24 VDC	861.8 g	1.9 lbs	3 Wire Leads	Ball	38.5 mm	52 dB	13 W	Steel
Qualtek FDD1-17238CBHW49-L	-20 °C	70 °C	-20 C	70 °C	3.33 A	100000 Hrs	IP54 - Dust Protected Water Resistant	CE cURus TUV	PWM Control	4000 RPM	Aluminum	310 CFM	8.68 m³/min	Tubeaxial	1.122 in H2O	279.5 Pa	151 mm	Rectangular/Rounded	172 mm	12 VDC	861.8 g	1.9 lbs	3 Wire Leads	Ball	38.5 mm	64 dB(A)	40 W	Steel
Qualtek FDD1-17238CBAW43	-20 °C	70 °C	-20 C	70 °C	1.1 A	50000 Hrs	IP54 - Dust Protected Water Resistant	CE cURus TUV	Locked Rotor Sensor	2800 RPM	Aluminum	210 CFM	5.88 m³/min	Tubeaxial	0.571 in H2O	142.2 Pa	151 mm	Rectangular/Rounded	172 mm	12 VDC	861.8 g	1.9 lbs	3 Wire Leads	Ball	38.5 mm	52 dB	13.2 W	Steel

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 72.50

Description

General part information

FDD1-17238 Series

Fan Tubeaxial 12VDC Rectangular/Rounded - 172mm L x 151mm H Ball 310.0 CFM (8.68mł/min) 2 Wire Leads
