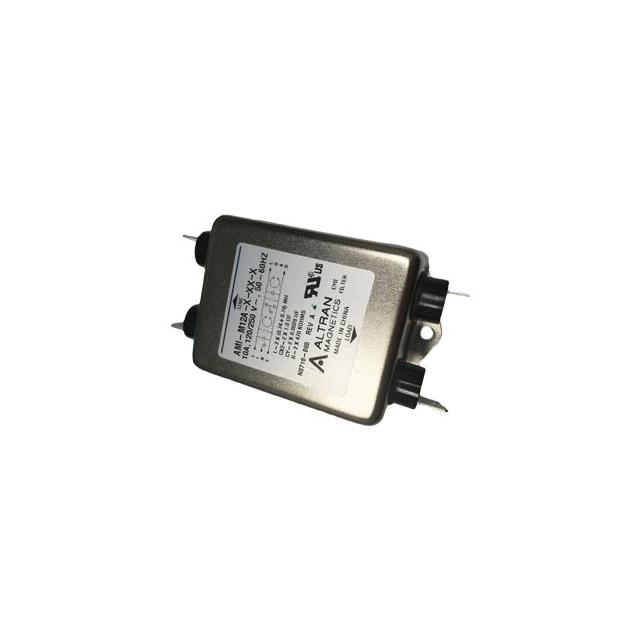

AMI-M12A-6-30-C

Active

Altran Magnetics, LLC

LINE FILTER 250VAC 30A CHASSIS

Deep-Dive with AI

Search across all available documentation for this part.

AMI-M12A-6-30-C

Active

Altran Magnetics, LLC

LINE FILTER 250VAC 30A CHASSIS

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	AMI-M12A-6-30-C

Applications	General Purpose
Configuration	Two Stage
Current	30 A
Filter Type	Single Phase
Frequency - Operating [Max]	60 Hz
Frequency - Operating [Min]	50 Hz
Inductance	880 µH
Mounting Type	Chassis Mount
Operating Temperature [Max]	40 °C
Operating Temperature [Min]	-10 °C
Termination Style	Threaded Post (10-32)
Voltage - Rated AC	250 V

AMI-M12A Series

Part	Termination Style	Applications	Frequency - Operating [Max]	Frequency - Operating [Min]	Filter Type	Configuration	Mounting Type	Voltage - Rated AC	Current	Operating Temperature [Min]	Operating Temperature [Max]	Inductance	Voltage - Rated DC
Altran Magnetics, LLC AMI-M12AI-3-5-B	Wire Leads	General Purpose	60 Hz	50 Hz	Single Phase	Two Stage	Chassis Mount	277 V	5 A	-10 °C	40 °C	420 µH	277 V
Altran Magnetics, LLC AMI-M12AB-6-20-B	Threaded Post (8-32)	General Purpose	60 Hz	50 Hz	Single Phase	Two Stage	Chassis Mount	250 V	20 A	-10 °C	40 °C	1.76 mH
Altran Magnetics, LLC AMI-M12AI-3-0.5-B	Wire Leads	General Purpose	60 Hz	50 Hz	Single Phase	Two Stage	Chassis Mount	277 V	500 mA	-10 °C	40 °C	890 µH	277 V
Altran Magnetics, LLC AMI-M12A-6-30-C	Threaded Post (10-32)	General Purpose	60 Hz	50 Hz	Single Phase	Two Stage	Chassis Mount	250 V	30 A	-10 °C	40 °C	880 µH
Altran Magnetics, LLC AMI-M12AC-7-20-B	IEC 320-C14 Quick Connect	General Purpose	60 Hz	50 Hz	Single Phase	Two Stage	Chassis Mount	250 V	20 A	-10 °C	40 °C	1.76 mH
Altran Magnetics, LLC AMI-M12A-1-20-C	Quick Connect	General Purpose	60 Hz	50 Hz	Single Phase	Two Stage	Chassis Mount	250 V	20 A	-10 °C	40 °C	840 µH
Altran Magnetics, LLC AMI-M12A-6-15-C	Threaded Post (8-32)	General Purpose	60 Hz	50 Hz	Single Phase	Two Stage	Chassis Mount	250 V	15 A	-10 °C	40 °C
Altran Magnetics, LLC AMI-M12AA-1-10-B	Quick Connect	General Purpose	60 Hz	50 Hz	Single Phase	Two Stage	Chassis Mount	250 V	10 A	-10 °C	40 °C	1.2 mH
Altran Magnetics, LLC AMI-M12A-1-10-B	Quick Connect	General Purpose	60 Hz	50 Hz	Single Phase	Two Stage	Chassis Mount	250 V	10 A	-10 °C	40 °C	1.48 mH
Altran Magnetics, LLC AMI-M12A-1-15-C	Quick Connect	General Purpose	60 Hz	50 Hz	Single Phase	Two Stage	Chassis Mount	250 V	15 A	-10 °C	40 °C	1.04 mH

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 48.92
		10	$ 39.90
		25	$ 36.79
		50	$ 34.59

Description

General part information

AMI-M12A Series

Single Phase EMC/EMI Line Filter 30 A 250V 50/60Hz Two Stage Threaded Post (10-32)

Documents

Technical documentation and resources

No documents available
