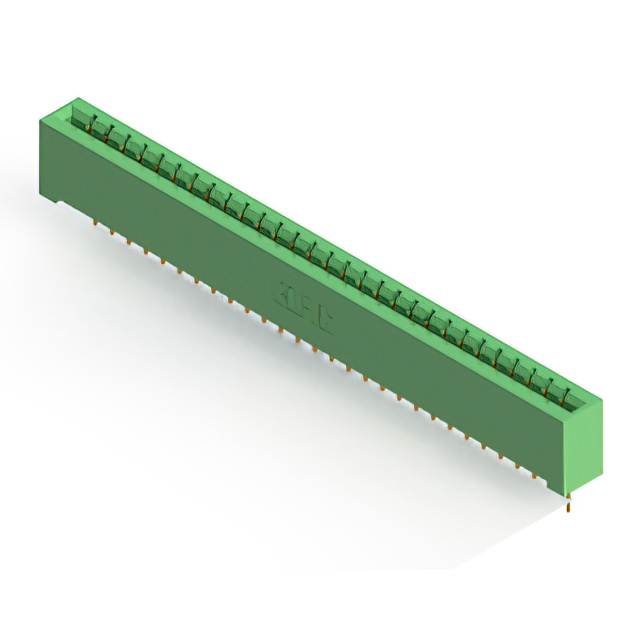

333-029-523-101
ActiveEDAC Inc.
CONN EDGE SGL FMALE 29POS 0.156
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
333-029-523-101
ActiveEDAC Inc.
CONN EDGE SGL FMALE 29POS 0.156
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 333-029-523-101 |
|---|---|
| Card Thickness [Max] | 1.78 mm |
| Card Thickness [Max] | 0.07 in |
| Card Thickness [Min] | 1.37 mm |
| Card Thickness [Min] | 0.054 " |
| Card Type | Non Specified - Single Edge |
| Color | Green |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Material | Copper Alloy |
| Contact Type | Cantilever |
| Gender | Female |
| Material - Insulation | Polyester Thermoplastic |
| Mounting Type | Through Hole |
| Number of Positions | 29 |
| Number of Positions/Bay/Row | 29 |
| Number of Rows | 1 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 0.156 in |
| Pitch [x] | 3.96 mm |
| Read Out | Single |
| Termination | Solder |
| Termination Rows | 1 |
333-029 Series
| Part | Contact Finish | Read Out | Color | Number of Positions | Contact Type | Number of Positions/Bay/Row | Material - Insulation | Contact Material | Contact Finish Thickness | Contact Finish Thickness | Termination Rows | Gender | Flange Feature | Mounting Type | Number of Rows | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Card Type | Pitch [x] | Pitch [x] | Termination | Operating Temperature [Min] | Operating Temperature [Max] | Flange Feature [diameter] | Flange Feature [diameter] | Flange Feature | Flange Feature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | Gold | Single | Green | 29 | Cantilever | 29 | Polyester Thermoplastic | Copper Alloy | 10 Áin | 0.25 Ám | 1 | Female | 4-40 Flush Mount Threaded Insert Top Opening | Through Hole | 1 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Non Specified - Single Edge | 0.156 in | 3.96 mm | Solder | -40 °C | 105 ░C | ||||
EDAC Inc. | Gold | Single | Green | 29 | Cantilever | 29 | Polyester Thermoplastic | Copper Alloy | 10 Áin | 0.25 Ám | 1 | Female | 4-40 Threaded Insert Top Mount Opening | Through Hole | 1 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Non Specified - Single Edge | 0.156 in | 3.96 mm | Solder | -40 °C | 105 ░C | ||||
EDAC Inc. | Gold | Single | Green | 29 | Cantilever | 29 | Polyester Thermoplastic | Copper Alloy | 10 Áin | 0.25 Ám | 1 | Female | Floating Bobbin Top Mount Opening | Through Hole | 1 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Non Specified - Single Edge | 0.156 in | 3.96 mm | Wire Wrap | -40 °C | 105 ░C | 2.95 mm | 0.116 in | ||
EDAC Inc. | Gold | Single | Green | 29 | Cantilever | 29 | Polyester Thermoplastic | Copper Alloy | 10 Áin | 0.25 Ám | 1 | Female | Floating Bobbin Flush Mount | Through Hole | 1 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Non Specified - Single Edge | 0.156 in | 3.96 mm | Wire Wrap | -40 °C | 105 ░C | 2.95 mm | 0.116 in | ||
EDAC Inc. | Gold | Single | Green | 29 | Cantilever | 29 | Polyester Thermoplastic | Copper Alloy | 10 Áin | 0.25 Ám | 1 | Female | M3 Threaded Insert Top Mount Opening | Through Hole | 1 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Non Specified - Single Edge | 0.156 in | 3.96 mm | Wire Wrap | -40 °C | 105 ░C | ||||
EDAC Inc. | Gold | Single | Green | 29 | Cantilever | 29 | Polyester Thermoplastic | Copper Alloy | 10 Áin | 0.25 Ám | 1 | Female | Through Hole | 1 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Non Specified - Single Edge | 0.156 in | 3.96 mm | Wire Wrap | -40 °C | 105 ░C | 3.25 mm | 0.128 in | |||
EDAC Inc. | Gold | Single | Green | 29 | Cantilever | 29 | Polyester Thermoplastic | Copper Alloy | 10 Áin | 0.25 Ám | 1 | Female | Through Hole | 1 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Non Specified - Single Edge | 0.156 in | 3.96 mm | Solder | -40 °C | 105 ░C | |||||
EDAC Inc. | Gold | Single | Green | 29 | Cantilever | 29 | Polyester Thermoplastic | Copper Alloy | 10 Áin | 0.25 Ám | 1 | Female | 4-40 Flush Mount Threaded Insert Top Opening | Through Hole | 1 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Non Specified - Single Edge | 0.156 in | 3.96 mm | Solder | -40 °C | 105 ░C | ||||
EDAC Inc. | Gold | Single | Green | 29 | Cantilever | 29 | Polyester Thermoplastic | Copper Alloy | 10 Áin | 0.25 Ám | 1 | Female | Side Mount Opening Unthreaded | Through Hole | 1 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Non Specified - Single Edge | 0.156 in | 3.96 mm | Wire Wrap | -40 °C | 105 ░C | 3.25 mm | 0.128 in | ||
EDAC Inc. | Gold | Single | Green | 29 | Cantilever | 29 | Polyester Thermoplastic | Copper Alloy | 10 Áin | 0.25 Ám | 1 | Female | M3 Threaded Insert Top Mount Opening | Through Hole | 1 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Non Specified - Single Edge | 0.156 in | 3.96 mm | Solder | -40 °C | 105 ░C |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 25 | $ 8.66 | |
Description
General part information
333-029 Series
29 Position Female Connector Non Specified - Single Edge Gold 0.156" (3.96mm) Green
