XOMAPL138ZCE

Obsolete

Texas Instruments

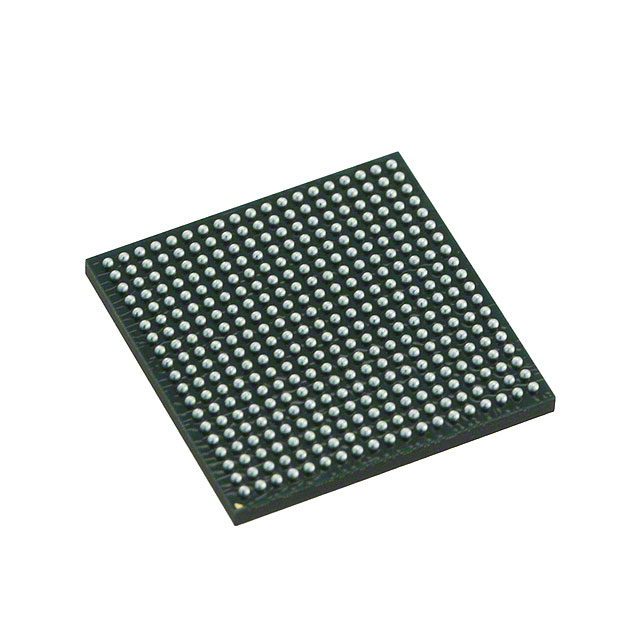

IC MPU OMAP-L1X 300MHZ 361NFBGA

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

XOMAPL138ZCE

Obsolete

Texas Instruments

IC MPU OMAP-L1X 300MHZ 361NFBGA

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	XOMAPL138ZCE

Additional Interfaces	McASP, SPI, McBSP, MMC/SD, I2C, HPI, UART
Co-Processors/DSP	Signal Processing, System Control, C674x, CP15
Core Processor	ARM926EJ-S
Display & Interface Controllers	LCD
Ethernet	1
Ethernet [Max]	100 Mbps
Ethernet [Min]	10 Mbps
Graphics Acceleration	False
Mounting Type	Surface Mount
Number of Cores/Bus Width	32 Bit, 1 Core
Operating Temperature [Max]	90 °C
Operating Temperature [Min]	0 °C
Package / Case	361-LFBGA
SATA	3 Gbps
Security Features	Cryptography, Boot Security
Speed	300 MHz
Supplier Device Package	361-NFBGA (13x13)
USB	USB 1.1 + PHY (1), USB 2.0 + PHY (1)
Voltage - I/O	3.3 V, 1.8 V

XOMAPL13 Series

Part	Package / Case	Voltage - I/O	Mounting Type	Display & Interface Controllers	Security Features	Number of Cores/Bus Width	SATA	Core Processor	Speed	Operating Temperature [Min]	Operating Temperature [Max]	Ethernet	Ethernet [Max]	Ethernet [Min]	Co-Processors/DSP	Additional Interfaces	Supplier Device Package [x]	Supplier Device Package [y]	Supplier Device Package	USB	Operating Temperature [custom]
Texas Instruments XOMAPL138ZWT	361-LFBGA	1.8 V 3.3 V	Surface Mount	LCD	Boot Security Cryptography	1 Core 32 Bit	3 Gbps	ARM926EJ-S	300 MHz	0 °C	90 °C	1	100 Mbps	10 Mbps	C674x CP15 Signal Processing System Control	HPI I2C McASP McBSP MMC/SD SPI UART	16	16	361-NFBGA	USB 1.1 + PHY (1) USB 2.0 + PHY (1)
Texas Instruments XOMAPL138ZCE	361-LFBGA	1.8 V 3.3 V	Surface Mount	LCD	Boot Security Cryptography	1 Core 32 Bit	3 Gbps	ARM926EJ-S	300 MHz	0 °C	90 °C	1	100 Mbps	10 Mbps	C674x CP15 Signal Processing System Control	HPI I2C McASP McBSP MMC/SD SPI UART			361-NFBGA (13x13)	USB 1.1 + PHY (1) USB 2.0 + PHY (1)
Texas Instruments XOMAPL137DZKBA3	256-BGA	1.8 V 3.3 V	Surface Mount	LCD		1 Core 32 Bit		ARM926EJ-S	375 MHz			1	100 Mbps	10 Mbps	C674x CP15 Signal Processing System Control	HPI I2C McASP MMC/SD SPI UART			256-BGA (17x17)	USB 1.1 + PHY (1) USB 2.0 + PHY (1)	-40 °C 105 °C
Texas Instruments XOMAPL137BZKB3	256-BGA	1.8 V 3.3 V	Surface Mount	LCD		1 Core 32 Bit		ARM926EJ-S	375 MHz	0 °C	90 °C	1	100 Mbps	10 Mbps	C674x CP15 Signal Processing System Control	HPI I2C McASP MMC/SD SPI UART			256-BGA (17x17)	USB 1.1 + PHY (1) USB 2.0 + PHY (1)
Texas Instruments XOMAPL137AZKB3	256-BGA	1.8 V 3.3 V	Surface Mount	LCD		1 Core 32 Bit		ARM926EJ-S	300 MHz	0 °C	90 °C	1	100 Mbps	10 Mbps	C674x CP15 Signal Processing System Control	HPI I2C McASP MMC/SD SPI UART			256-BGA	USB 1.1 + PHY (1) USB 2.0 + PHY (1)

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

XOMAPL13 Series

ARM926EJ-S Microprocessor IC OMAP-L1x 1 Core, 32-Bit 300MHz 361-NFBGA (13x13)
